Close up of ZE2549
3D Model Datasheet

ZE2549 Series

Common mode choke for 10BASE-T1 Applications

符合RoHS AEC-Q flag
The ZE2549 is a common mode choke designed for Single Pair Ethernet (SPE) networks, providing common mode noise suppression and EMI reduction in 10BASE-T1L applications. It supports data only transmission as well as with Power over Data Line (PoDL) for transmitting both data and power over a single twisted pair cable. The part is compliant with the IEEE 802.3cg standard. It works with 10BASE-T1L isolation transformers and power injection chokes as a complete solution for 10Base-T1L applications, including industrial automation, building automation, IoT, and others, where low-cost, long-range Ethernet is essential.
  • Common mode choke designed for 10Base-T1L applications
  • Compliant with IEEE802.3cg standard
  • 1500 VDC (1000 Vrms), one minute isolation (hipot) between windings
  • AEC-Q200 qualified

立即购买:
查找我的元件

很抱歉，目前我们的网上商店不提供所选元件。

请点击“请求报价”联系支持部门，以获取自定义报价或了解更多信息。

. 现货，可今天发货.
索取样品:
查找我的元件

规格

Electrical specifications at 25°C.

零件号 1 共模
峰值阻抗 (kΩ) 		最小
电感 (nH) 2 		Irms (mA) 3 DCR max (Ω) 4 隔离
电压 (Vrms) 5
ZE2549-474LC 2.47 @ 4.4 MHz 329 910 0.170 1500
注释
  1. When ordering, please specify packaging code: e.g. ZE2549-474LC
  2. Inductance is for each winding, measured at 100 kHz, 0.1 V.
  3. Irms current is the current when applied to both windings in series that causes the specified temperature rise from room temperature.
  4. DCR is specified per winding.
  5. 1500 VDC (1000 Vrms), one minute isolation (hipot) between windings.

端子:

  • L = RoHS compliant matte tin over nickel over phos-bronze.

包装:

  • C = 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1000 parts per full reel).
环境
环境:
符合RoHS
环境温度范围:
–40°C to +125°C with Irms current
储存温度范围:
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+140°C (ambient + temp rise)
故障率（FIT）/平均故障间隔时间（MTBF）:
See FIT/MTBF Calculations

性能曲线

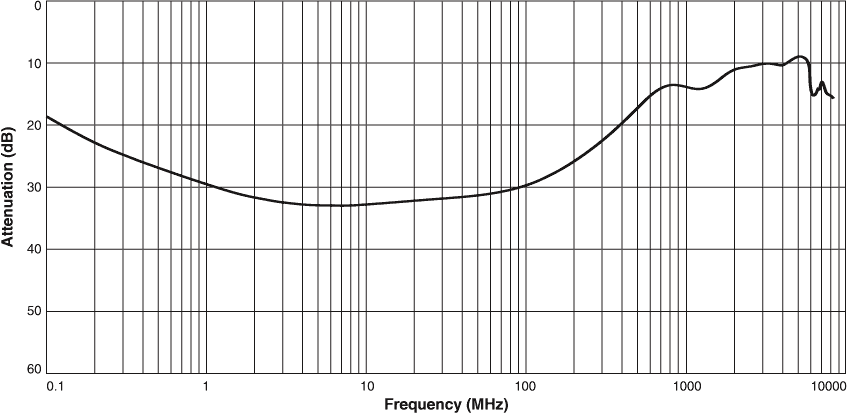

Attenuation vs Frequency (Common Mode)

Attenuation vs Frequency (Common Mode)

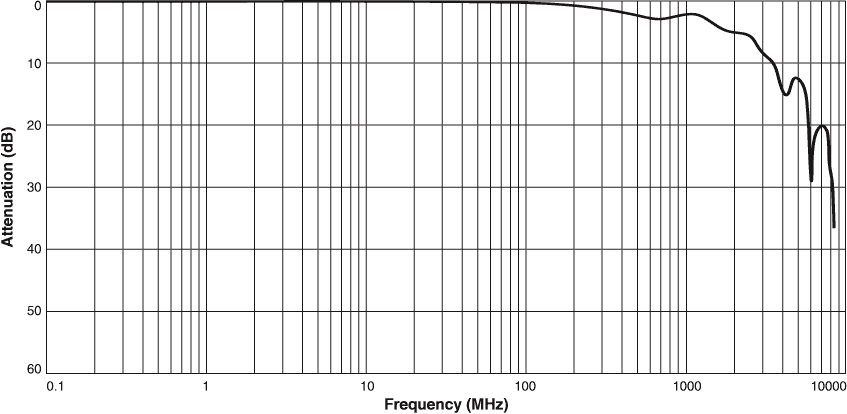

Attenuation vs Frequency (Differential Mode)

Attenuation vs Frequency (Differential Mode)

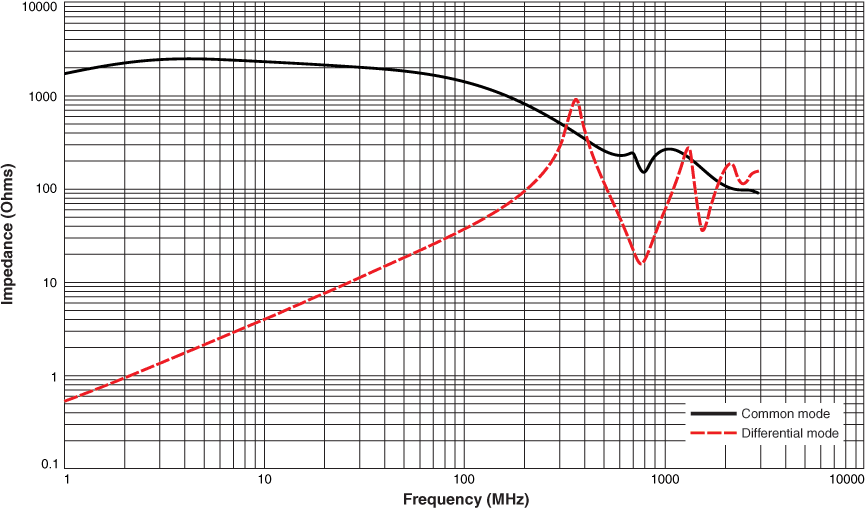

Impedance vs Frequency

Impedance vs Frequency

原理图

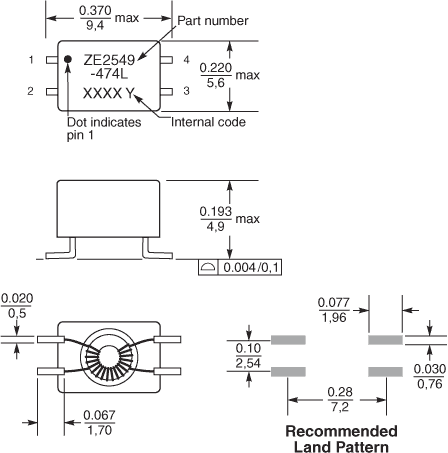

物理特性



卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_bq.gif
250 1000* 178/330 60/100 13 22,4 16,4 16 12 4 2 4,8 0,4
*Special order

一般规格

核心材料:
Ferrite
重量:
300 – 320 mg
包装:
250/7″ reel; 1000/13″ reel Plastic tape: 16 mm wide, 0.4 mm thick, 12 mm pocket spacing, 4.8 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前，请参阅焊接线艺元件。
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
