Datasheet

High Power Transformers

for Power over Ethernet

Developed for STMicroelectronics ST PM8804 and ST PM8805
Optimized for STMicroelectronics high-power PoE PD controller
evaluation board STEVAL-POE00xV1
Designed to meet IEEE802.3bt standard
Perfect solution for high power PoE applications including Smart Building and IoT

立即购买:

零件号

查找我的元件

索取样品:

零件号

查找我的元件

典型应用

与Texas Instruments PM8804一起使用

零件号	输入电压	输出	功率	Fsw
MA5509-CL_	36 V — 72 V	3.3 V , 20 A	66 W	-
NA6083-BLD	36 V — 72 V	5 V , 20 A	100 W	250 kHz
RA7129-BL_	36 V — 72 V	5 V , 20 A	100 W	-

规格

Electrical specifications at 25°C.

Active Clamp Forward Transformer

零件号 (Hover for schematics)	0A时的电感 (µH) 1	公差 (%)	DCR max (Ω)			最大漏电感 (µH) 2	匝数比	隔离电压 (Vrms) 3
零件号 (Hover for schematics)	0A时的电感 (µH) 1	公差 (%)	Pri	Sec	Aux/Bias	最大漏电感 (µH) 2	Pri : Sec : Aux/Bias	隔离电压 (Vrms) 3
MA5509-CL_	70	10	0.059	0.003	0.300	0.838	1 : 0.2 : 0.533	1500
RA7129-BL_	134	25	0.027	0.004	0.174	0.180	1 : 0.333 : 0.667	1500

Flyback Transformer

零件号 (Hover for schematics)	0A时的电感 (µH) 1	公差 (%)	最小电感 (µH)	DCR max (Ω)			最大漏电感 (µH) 2	匝数比	隔离电压 (Vrms) 3
零件号 (Hover for schematics)	0A时的电感 (µH) 1	公差 (%)	最小电感 (µH)	Pri	Sec	Aux/Bias	最大漏电感 (µH) 2	Pri : Sec : Aux/Bias	隔离电压 (Vrms) 3
NA6083-BLD	70	10	60 @ 3.5 A	0.111	0.006	0.660	1.820	1 : 0.2 : 0.6	1500

注释

Inductance for is for the primary, measured at 250 kHz, 0.2 Vrms, 0 Adc.
Leakage inductance is for the primary winding with the secondary windings shorted.
Isolation (hipot) is measured for one minute: 1500 Vrms from primary and aux/bias to secondary; 500 Vrms from primary to aux/bias.

端子:

RoHS-compliant. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: −40°C to +165°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+165°C (ambient + self-heating)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

Connect pin 1 to 2 and pin 3 to 4 on the PC board.
Connect pins 10, 11, and 12 together and
pins 7, 8, and 9 together on the PC board.

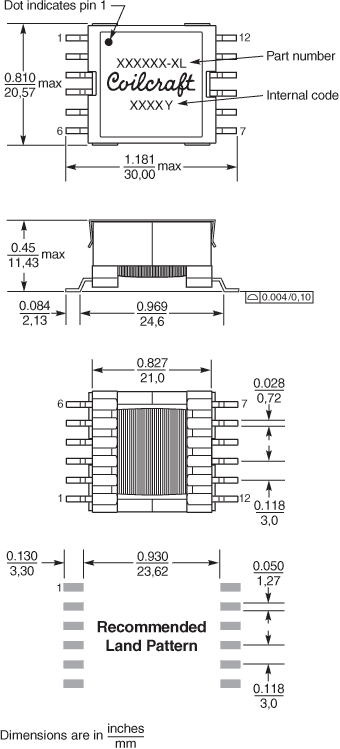

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	12,0	0,5

一般规格

核心材料:

Ferrite

重量:

11.5 – 13.5 g

包装:

175 per 13″ reel Plastic tape: 44 mm wide, 0.5 mm thick, 32 mm pocket spacing, 12 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
