POExxQ High Power Flyback Transformers

for Power over Ethernet

Developed for Flyback PoE DC/DC Powered Devices (PD) power converters up to 51 W
Designed to meet IEEE802.3bt standard and operates with 36 – 57 V input
Perfect solution for high power PoE applications including Smart Building and IoT
250 kHz switching frequency
AEC-Q200 Grade 1 (-40°C to +125°C)

立即购买:

零件号

查找我的元件

计数	单价
1	$3.31
150	$3.23
300	$2.94
600	$2.68
1200	$2.23
2400	$2.03
5000	$1.85

对于大批量采购或非库存产品，点击这里请求报价。

Termination

E = Tin-silver-copper over tin over nickel

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	功率 (W)	0A时的电感 (µH) 1	公差 (%)	Isat (A) 2	DCR max (mΩ)			最大漏电感 (µH) 3	匝数比	隔离电压 (Vrms) 4	次级输出 (V, A) 5
零件号 (Hover for schematics)	功率 (W)	0A时的电感 (µH) 1	公差 (%)	Isat (A) 2	Pri	Sec	Aux	最大漏电感 (µH) 3	Pri : Sec : Aux	隔离电压 (Vrms) 4	次级输出 (V, A) 5
POE40Q-33E_	40	33.3	15	3.5	64.0	2.0	104	0.32	1 : 0.143 : 0.5	1500	3.3 V , 11 A
POE40Q-50E_	40	33.3	15	3.5	66.0	4.0	102	0.25	1 : 0.214 : 0.5	1500	5 V , 7.3 A
POE40Q-12E_	40	27.8	15	3.7	35.0	18.0	85.0	0.14	1 : 0.5 : 0.5	1500	12 V , 3 A
POE40Q-24E_	40	27.8	15	3.7	35.0	69.0	85.0	0.14	1 : 1 : 0.5	1500	24 V , 1.5 A
POE40Q-48E_	40	27.8	15	3.7	34.0	266	85.0	0.13	1 : 2 : 0.5	1500	48 V , 0.76 A
POE51Q-33E_	51	26.7	10	4.5	64.0	2.0	104	0.32	1 : 0.143 : 0.5	1500	3.3 V , 14.1 A
POE51Q-50E_	51	26.7	10	4.5	66.0	4.0	102	0.25	1 : 0.214 : 0.5	1500	5 V , 9.3 A
POE51Q-12E_	51	22.2	10	4.7	35.0	18.0	85.0	0.14	1 : 0.5 : 0.5	1500	12 V , 3.9 A
POE51Q-24E_	51	22.2	10	4.7	35.0	69.0	85.0	0.11	1 : 1 : 0.5	1500	24 V , 1.9 A
POE51Q-48E_	51	22.2	10	4.7	34.0	266	85.0	0.10	1 : 2 : 0.5	1500	48 V , 0.97 A

注释

Inductance is for the primary, measured at 250 kHz, 0.5 Vrms, 0 Adc.
DC current at 25°C that causes an inductance drop of <15% (POExx51Q) and <15% (POExx40Q) from its value without current.
Leakage inductance is for the primary with the secondary and aux windings shorted.
1500 Vrms, 1 minute isolation (hipot) between primary and auxillary and auxillary to secondary.
Output is for the secondary. Output of the aux winding is 12 V, 30 mA.

端子:

RoHS-compliant, halogen free. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (150 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +165°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+165°C (Ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

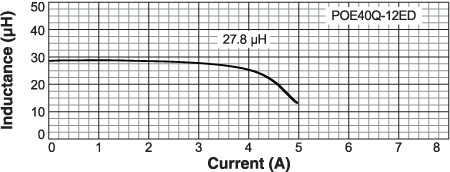

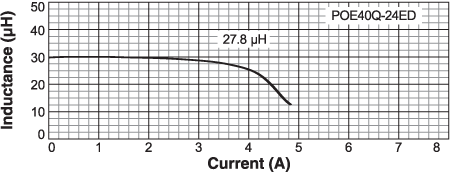

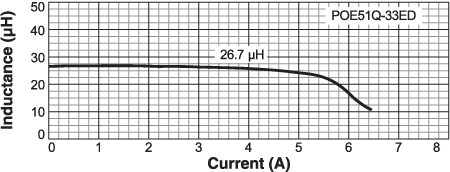

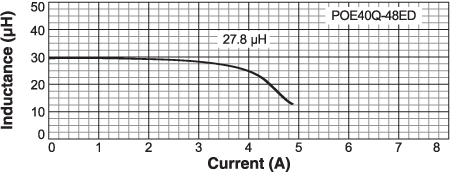

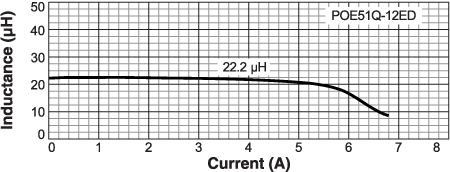

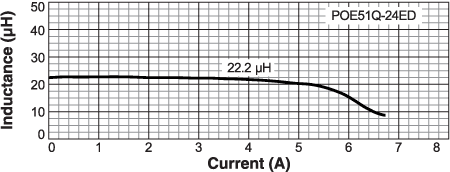

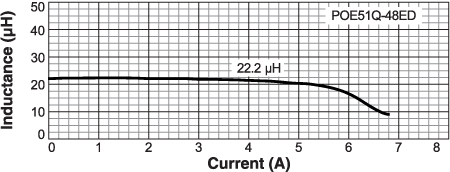

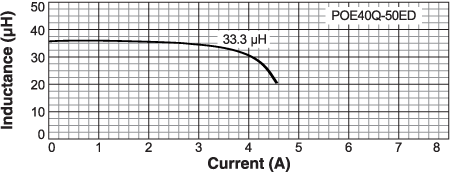

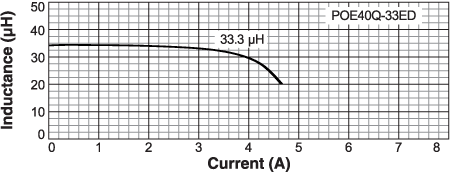

Inductance vs Current

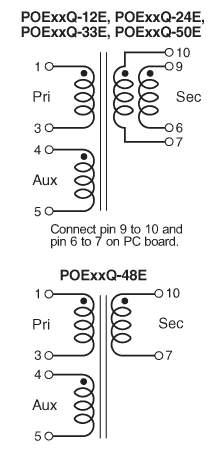

原理图

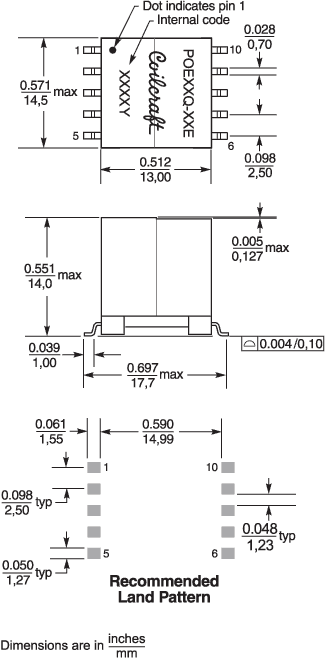

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
150	330	100	13	50,4	44,4	44	28	4	2	14,6	0,5

一般规格

核心材料:

Ferrite

重量:

6.5 – 8 g

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。
