High Power Flyback Transformers

for Power over Ethernet

Developed for Flyback DC/DC PoE Powered Devices (PD) power converters up to 71 W
Designed to meet IEEE802.3bt standard and operates with 36 – 57 V input
Perfect solution for high power PoE applications including Smart Building and IoT

立即购买:

零件号

查找我的元件

计数	单价
1	$4.29
175	$4.17
350	$3.80
700	$3.45
1400	$2.88
2800	$2.62
5000	$2.38

对于大批量采购或非库存产品，点击这里请求报价。

Termination

E = Tin-silver-copper over tin over nickel

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	功率 (W)	0A时的电感 (µH) 1 (公差: ±10%)	Isat (A) 2	DCR max (mΩ)			最大漏电感 (µH) 3	匝数比	隔离电压 (Vrms) 4	次级输出 (V, A) 5
零件号 (Hover for schematics)	功率 (W)	0A时的电感 (µH) 1 (公差: ±10%)	Isat (A) 2	Pri	Sec	Aux	最大漏电感 (µH) 3	Pri : Sec : Aux	隔离电压 (Vrms) 4	次级输出 (V, A) 5
POE62F-33E_	62	22.2	5.4	34.9	2.0	130	0.50	1 : 0.143 : 0.5	1500	3.3 V , 17.1 A
POE62F-50E_	62	22.2	5.4	34.9	2.8	130	0.38	1 : 0.214 : 0.5	1500	5 V , 11.3 A
POE62F-12E_	62	17.8	5.7	18.9	9.2	108	0.17	1 : 0.5 : 0.5	1500	12 V , 4.7 A
POE62F-24E_	62	17.8	5.7	18.9	36.3	108	0.12	1 : 1 : 0.5	1500	24 V , 2.4 A
POE62F-48E_	62	17.8	5.7	18.9	140	108	0.11	1 : 2 : 0.5	1500	48 V , 1.2 A
POE71F-33E_	71	18.9	6.3	34.9	2.0	130	0.50	1 : 0.143 : 0.5	1500	3.3 V , 19.7 A
POE71F-50E_	71	18.9	6.3	34.9	2.8	130	0.38	1 : 0.214 : 0.5	1500	5 V , 13 A
POE71F-12E_	71	15.5	6.6	18.9	9.2	108	0.17	1 : 0.5 : 0.5	1500	12 V , 5.4 A
POE71F-24E_	71	15.5	6.6	18.9	36.3	108	0.12	1 : 1 : 0.5	1500	24 V , 2.7 A
POE71F-48E_	71	15.5	6.6	18.9	140	108	0.11	1 : 2 : 0.5	1500	48 V , 1.35 A

注释

Inductance is for the primary, measured at 250 kHz, 0.5 Vrms, 0 Adc.
DC current applied to the primary at 25°C that causes an inductance drop of <10% from its value without current.
Leakage inductance is for the primary with the secondary and aux windings shorted.
1500 Vrms, one minute isolation (hipot) between primary and auxillary to secondary.
Output is for the secondary. Output of the aux winding is 12 V, 30 mA.

端子:

RoHS-compliant, halogen free. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +165°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+165°C (Ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

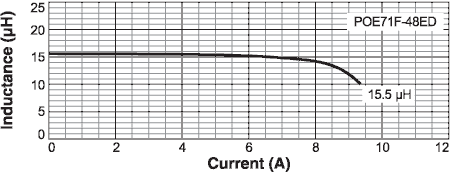

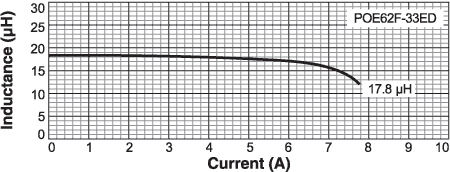

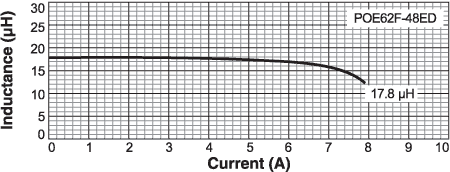

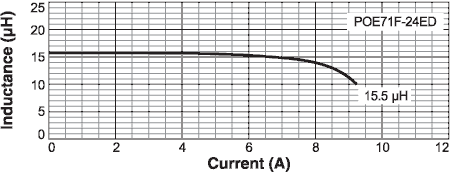

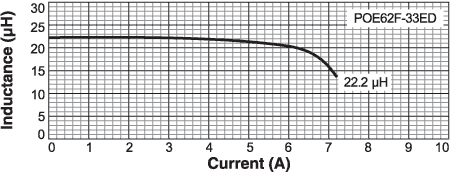

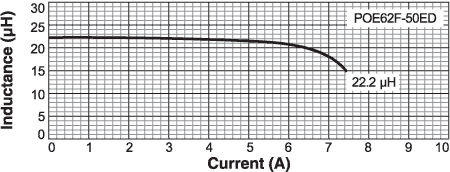

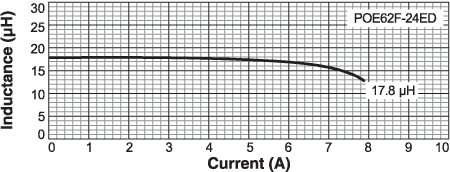

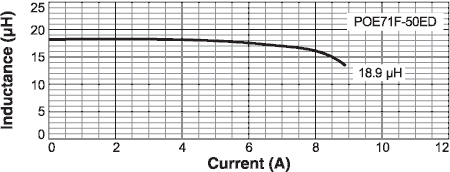

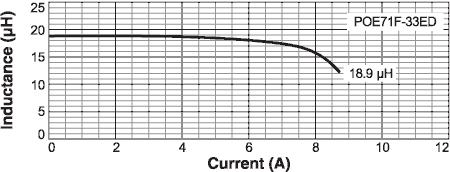

Inductance vs Current

原理图

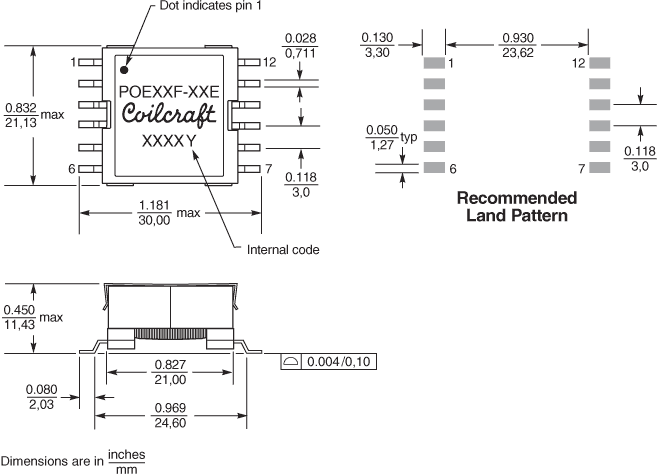

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	12,0	0,5

一般规格

核心材料:

Ferrite

重量:

12 g – 14 g

包装:

175 per 13″ reel Plastic tape: 44 mm wide, 0.5 mm thick, 32 mm pocket spacing, 12 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
