3D Model Datasheet

POE600F 60 W PoE Transformers

for Active Clamp Forward Topology

Designed for active clamp forward topology
Operates at 200 kHz with 36 – 72 V input

立即购买:

零件号

查找我的元件

计数	单价
1	$6.26
175	$5.86
350	$5.06
700	$4.29
1400	$3.59
2100	$3.24
5000	$2.95

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	功率 (W)	0A时的电感 (µH) 2 (公差: ±20%)	DCR max (mΩ) 3			最大漏电感 (µH) 4	匝数比	隔离电压 (Vrms) 5	次级输出 (V, A)
零件号 1 (Hover for schematics)	功率 (W)	0A时的电感 (µH) 2 (公差: ±20%)	Pri	Sec	Aux	最大漏电感 (µH) 4	Pri : Sec : Aux	隔离电压 (Vrms) 5	次级输出 (V, A)
POE600F-33L_	60	100	35.0	2.3	185	0.55	1 : 0.167 : 0.583	1500	3.3 V , 18.18 A
POE600F-50L_	60	100	35.0	2.7	185	0.30	1 : 0.25 : 0.575	1500	5 V , 12 A
POE600F-12L_	60	100	35.0	8.0	156	0.17	1 : 0.5 : 0.5	1500	12 V , 5 A
POE600F-24L_	60	100	35.0	30.0	156	0.14	1 : 1 : 0.5	1500	24 V , 2.5 A

注释

When ordering, please specify packaging code: e.g. POE120PL-33LD
Inductance is for the primary, measured at 200 kHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance is for the primary with the secondary windings shorted.
Isolation 1500 Vrms one minute primary and aux to secondary, 500 Vrms primary to aux.

端子:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations. Other terminations available at additional cost. Other terminations available at additional cost.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

40°C to +125°C

储存温度范围:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+165°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

The primary windings and the
secondary windings are to be
connected in parallel on the PC board.

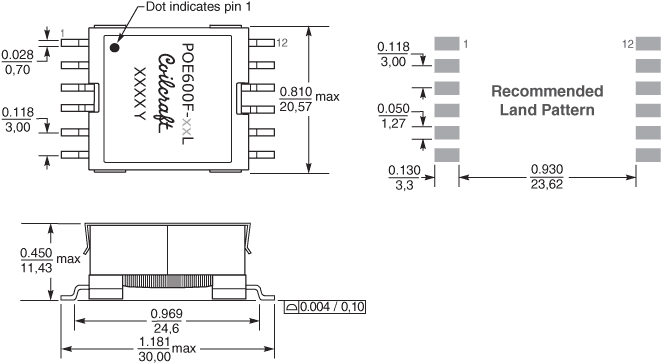

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	11,9	0,4

一般规格

核心材料:

Ferrite

重量:

12.7 g

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
