3D Model Datasheet

POE300 Flyback Transformers

for PoE Plus Applications

Developed for flyback applications up to 30 Watts.
Designed to meet IEEE 802.3at-2009 standard.
Operates with 36 – 72 V input at a 250 kHz switching frequency.
UL Certified per File E219588
Samples of all values are available in Coilcraft Designer's Kit C398

立即购买:

零件号

查找我的元件

计数	单价
1	$3.98
175	$3.66
700	$3.37
1400	$2.82
2800	$2.55
5000	$2.33

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver over tin over nickel

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C398	5 (3 of each)	$50.00

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	功率 (W)	0A时的电感 (µH) 2 (公差: ±10%)	最小电感 2.6 A (µH) 3	DCR max (Ω) 4			最大漏电感 (µH) 5	匝数比 6	隔离电压 (Vrms) 7	次级输出 (V, A) 8
零件号 1 (Hover for schematics)	功率 (W)	0A时的电感 (µH) 2 (公差: ±10%)	最小电感 2.6 A (µH) 3	Pri	Sec	Aux	最大漏电感 (µH) 5	Pri : Sec : Aux	隔离电压 (Vrms) 7	次级输出 (V, A) 8
POE300F-33L_	30	42.0	37.8	0.070	0.002	0.220	3.000	1 : 0.09 : 0.33	1500	3.3 V , 9 A
POE300F-50L_	30	42.0	37.8	0.069	0.005	0.225	1.600	1 : 0.14 : 0.33	1500	5 V , 6 A
POE300F-12L_	30	42.0	37.8	0.061	0.015	0.195	0.545	1 : 0.33 : 0.33	1500	12 V , 2.5 A
POE300F-19L_	30	42.0	37.8	0.060	0.037	0.195	0.430	1 : 0.56 : 0.33	1500	19.5 V , 1.5 A
POE300F-24L_	30	42.0	37.8	0.060	0.055	0.195	0.310	1 : 0.67 : 0.33	1500	24 V , 1.25 A

注释

When ordering, please specify packaging code: e.g. POE300F-24LD
Inductance is for the primary, measured at 250 kHz, 0.7 Vrms, 0 Adc.
Ipk is the peak primary current drawn at minimum input voltage.
DCR is with the windings connected in parallel, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance is for the primary with the secondary windings shorted.
Turns ratio is with the primary and the secondary windings connected in parallel.
Isolation: 1500 Vrms primary to secondary; 500 Vrms primary to auxiliary.
Output is with the secondary windings connected in parallel. Output of the auxiliary winding is 12 V.

端子:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +125°C

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

The primary windings and the
secondary windings are to be
connected in parallel on the PC board.

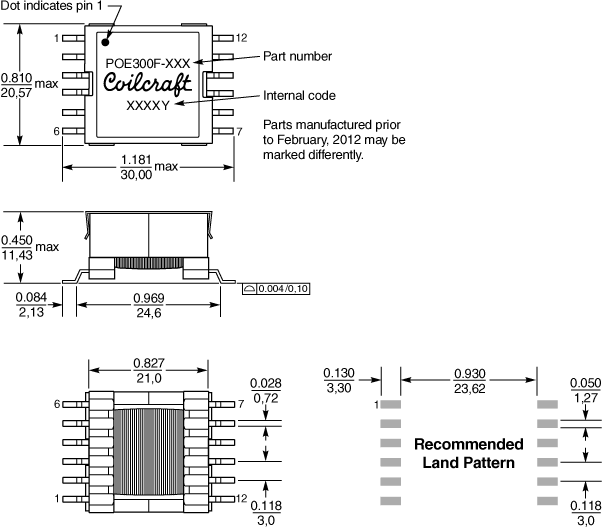

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	11,9	0,4

一般规格

核心材料:

Ferrite

重量:

11.9 g

包装:

175 per 13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth
