Flyback Transformers

for Power over Ethernet

Developed for Powered Devices (PD) in IEEE 802.3af compliant PoE applications
6 Watt and 13 Watt output versions
36 – 72 V input, 250 kHz switching frequency
Bias winding output: 12 V, 20 mA

立即购买:

零件号

查找我的元件

计数	单价
1	$3.13
200	$2.69
600	$2.34
1000	$1.83
2400	$1.56
5000	$1.43

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver over tin over nickel

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C372	10 (2 of each)	$50.00

规格

Electrical specifications at 25°C.

Samples of parts in red are available in Coilcraft Designer's Kit C372

零件号 1 (Hover for schematics)	功率 (W)	0A时的电感 (µH) 2 (公差: ±10%)	最小电感 (µH)	DCR max (Ω) 3			最大漏电感 (µH) 4	匝数比 5	隔离电压 (Vrms) 6	次级输出 (V, A) 7
零件号 1 (Hover for schematics)	功率 (W)	0A时的电感 (µH) 2 (公差: ±10%)	最小电感 (µH)	Pri	Sec	Bias	最大漏电感 (µH) 4	Pri : Sec : Bias	隔离电压 (Vrms) 6	次级输出 (V, A) 7
POE13F-18L_	13	45.0	40.5 @ 2.3 A	0.195	0.005	0.195	7.9	1 : 0.07 : 0.36	1500	1.8 V , 7.2 A
POE13F-25L_	13	35.0	31.5 @ 2.2 A	0.095	0.005	0.150	4.2	1 : 0.08 : 0.33	1500	2.5 V , 5.2 A
POE13F-33L_	13	40.0	36.0 @ 2.2 A	0.138	0.007	0.180	3.4	1 : 0.11 : 0.36	1500	3.3 V , 3.9 A
POE13F-50L_	13	40.0	36.0 @ 2.1 A	0.130	0.009	0.165	1.9	1 : 0.15 : 0.35	1500	5 V , 2.6 A
POE13F-12L_	13	35.0	31.5 @ 2 A	0.095	0.017	0.150	0.6	1 : 0.35 : 0.35	1500	12 V , 1.1 A
POE60F-18L_	6	75.0	67.5 @ 1.3 A	0.195	0.005	0.195	8.0	1 : 0.07 : 0.36	1500	1.8 V , 3.3 A
POE60F-25L_	6	55.0	49.5 @ 1.2 A	0.095	0.005	0.150	4.6	1 : 0.08 : 0.33	1500	2.5 V , 2.4 A
POE60F-33L_	6	65.0	58.5 @ 1.2 A	0.138	0.007	0.180	3.9	1 : 0.11 : 0.36	1500	3.3 V , 1.8 A
POE60F-50L_	6	60.0	54.0 @ 1.1 A	0.130	0.009	0.165	2.3	1 : 0.15 : 0.35	1500	5 V , 1.2 A
POE60F-12L_	6	55.0	49.5 @ 1.1 A	0.095	0.017	0.150	2.4	1 : 0.35 : 0.35	1500	12 V , 0.5 A
POE13F-19L_	13	37.0	33.3 @ 2 A	0.085	0.025	0.150	0.4	1 : 0.57 : 0.35	1500	19.5 V , 0.67 A
POE13F-24L_	13	37.0	33.3 @ 2 A	0.086	0.049	0.150	0.4	1 : 0.67 : 0.33	1500	24 V , 0.54 A

注释

When ordering, please specify packaging code: e.g. POE13F-12LD
Inductance is for the primary, measured at 250 kHz, 0.3 Vrms.
DCR for the primary and for the secondary are with the windings connected in parallel.
Leakage inductance is for the primary windings with the secondary windings shorted.
Turns ratios are with the primary the secondary windings connected in parallel.
1500 Vrms isolation primary and bias windings to secondary windings.
Output of the secondary is with the windings connected in parallel. Bias winding output is 12 V, 20 mA.

端子:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (200 parts per full reel).
B = Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter D instead.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

Primary windings and secondary windings
to be connected in parallel on PC board.

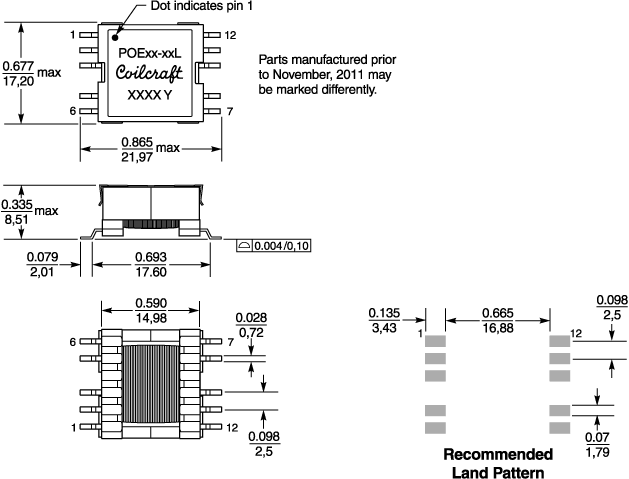

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	28	4	2	9,6	0,4

一般规格

核心材料:

Ferrite

重量:

5.0 – 5.6 g

包装:

200 per 13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
