3D Model Datasheet

GA3271-AL Flyback Transformer

for Maxim MAX5941B PWM Controller

Developed for Maxim MAX5941B PoE Interface/PWM Controller
Designed for 13 W PoE applications
RoHS-compliant. 260°C compatible. Tin-silver (96.5/3.5) over tin over nickel over phos bronze terminations

立即购买:

计数	单价
1	$3.78
200	$3.24
600	$2.82
1200	$2.20
2400	$1.89
5000	$1.73

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

典型应用

与Maxim MAX5941B一起使用

输入电压	输出 1		功率	Fsw
输入电压	Sec	Bias	功率	Fsw
30 V — 60 V	12 V , 1 A	15 V , 0.02 A	13 W	275 kHz

规格

Electrical specifications at 25°C.

零件号 2 (Hover for schematics)	0A时的电感 (µH) 3 (公差: ±10%)	最小电感 1 A (µH)	DCR max (Ω) 4			最大漏电感 (µH) 5	匝数比 6	隔离电压 (Vrms) 7
零件号 2 (Hover for schematics)	0A时的电感 (µH) 3 (公差: ±10%)	最小电感 1 A (µH)	Pri	Sec	Bias	最大漏电感 (µH) 5	Pri : Sec : Bias	隔离电压 (Vrms) 7
GA3271-AL_	117.5	104.0	0.201	0.060	0.335	0.815	1 : 0.457 : 0.571	1500

注释

Output of the secondary is with the windings connected in parallel. Bias winding output is 15 V, 20 mA
When ordering, please specify termination and packaging codes: GA3271-ALD.
Inductance is for the primary, measured at 250 kHz, 0.1 Vrms.
DCR for the primary and for the secondary are with the windings connected in parallel.
Leakage inductance is for the primary windings with the secondary windings shorted.
Turns ratios are with the primary the secondary windings connected in parallel.
1500 Vrms, one minute primary to secondary isolation.

端子:

L = RoHS tin-silver over tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order)

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (200 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

Primary windings and secondary windings
to be connected in parallel on the PC board.

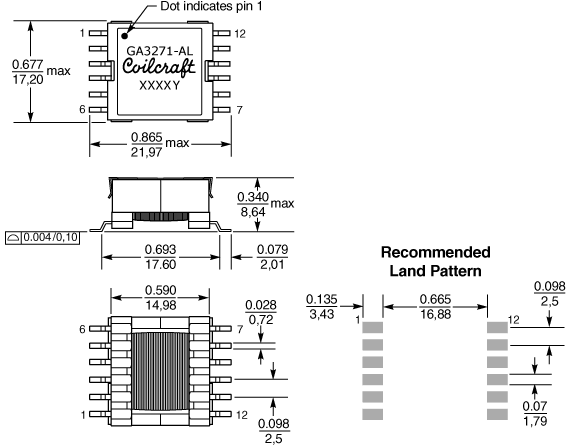

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	28	4	2	9,6	0,4

一般规格

核心材料:

Ferrite

重量:

5.5 g

包装:

200 per 13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 9.6 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf
