Midspan PoE Plus Magnetics

for 30 W Applications

Developed for PoE Plus applications to meet the IEEE 802.3at (PoE+) standard
Exceeds the return loss requirements of Gbit Ethernet
Designed for 2-line systems
350 µH minimum at 20 mA offset current at 25°C
Can handle 22.5 mA minimum dc offset at 85°C.
Typical temperature rise: 7°C with 800 mA; 10°C with 1000 mA dc current applied.

立即购买:

计数	单价
1	$4.66
200	$3.99
400	$3.47
1200	$3.03
2400	$2.59
4800	$2.38

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	最小电感 (µH) 2	DCR max (Ω) 3	最大漏电感 (nH) 4
零件号 1 (Hover for schematics)	最小电感 (µH) 2	DCR max (Ω) 3	最大漏电感 (nH) 4
FA2536-AL_	675.0	0.240	550

注释

When ordering, please specify packaging code: e.g. FA2536-ALD
Inductance measured between pins 1 – 3 and between pins 4 – 6 at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4284A impedance analyzer.
DCR is measured between pins 1 – 3 and between pins 4 – 6.
Leakage inductance is measured between pins 2 and 3 with pins 1 and 3 shorted and between pins 5 and 6 with pins 4 and 6 shorted.

端子:

RoHS-compliant. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (400 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C

储存温度范围:

Component: −40°C to +85°C
Tape and reel packaging: −40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

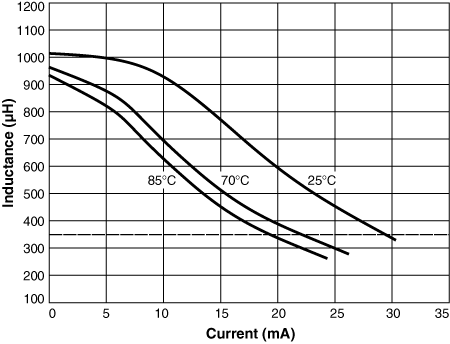

Inductance vs. Offset Current

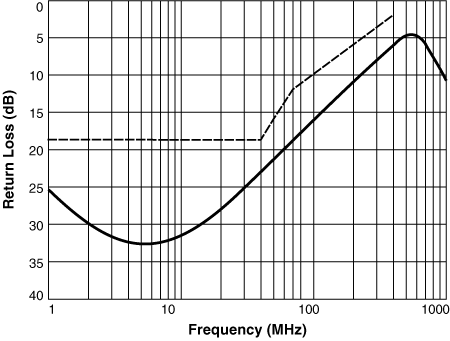

Return Loss

原理图

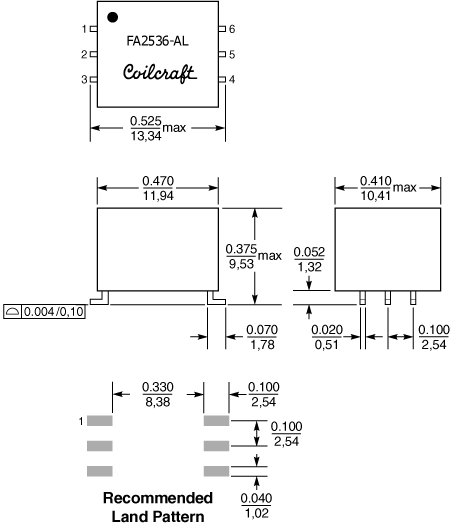

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
400	330	100	13	30,4	24,4	24	12	4	2	9,8	0,4

一般规格

重量:

1.56 g

包装:

400/13″ reel 24 mm tape width

焊接

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。
