Power Factor Controller Coils

for ON Semiconductor NCP1653

Specified by ON Semiconductor in Application Note AND8185/D

立即购买:

零件号

查找我的元件

计数	单价
1	$6.25
250	$5.81
500	$5.06
1000	$4.40
2500	$3.78
5000	$3.47

对于大批量采购或非库存产品，点击这里请求报价。

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

典型应用

与ON Semiconductor NCP1653一起使用

零件号	功率
C1061-AL	150 W
C1062-BL	300 W

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	最小电感 (µH)	DCR max (Ω) 2	SRF typ (MHz)	Irms (A) 3
零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	最小电感 (µH)	DCR max (Ω) 2	SRF typ (MHz)	Irms (A) 3
C1061-AL	450	405 @ 4.5 A	0.166	1.4	3.80
C1062-BL	570	540 @ 6 A	0.226	1.0	3.55

注释

Inductance measured at 100 kHz, 0.1 V, 0 Adc using an Agilent/ HP 4284A impedance analyzer.
DCR measured on a Cambridge Technology micro-ohmmeter and a Coilcraft CCF858 test fixture, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Irms: Current that causes a 40°C temperature rise above 25°C ambient. Details

端子:

RoHS-compliant 260°C compatible. Tin over nickel over phos bronze terminations.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C

储存温度范围:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

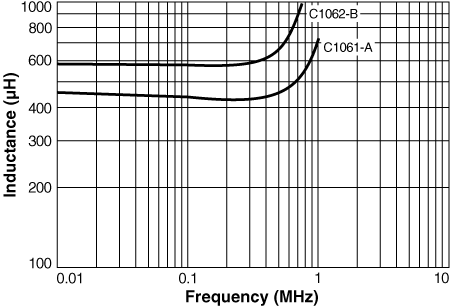

Typical Inductance vs Frequency

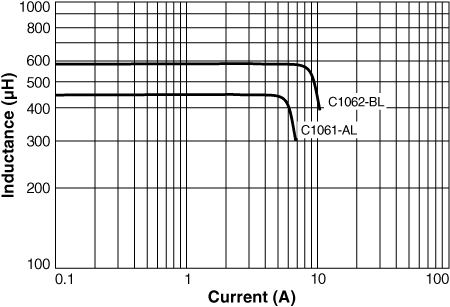

Typical Inductance vs Current

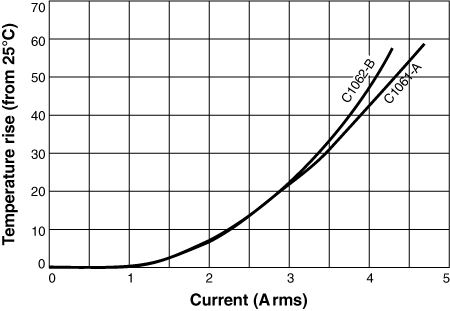

Typical Temperature Rise vs Current

原理图

C1061-AL	C1062-BL

物理特性

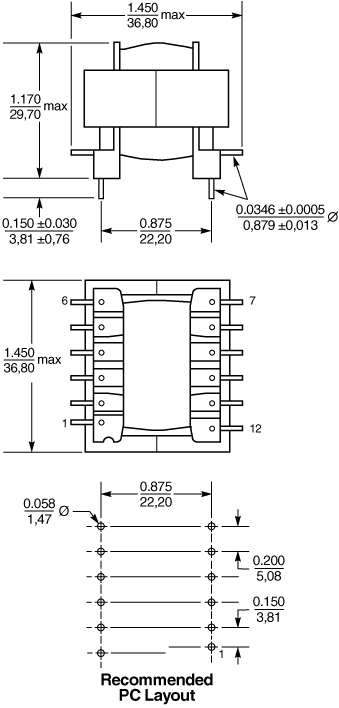

C1061-AL

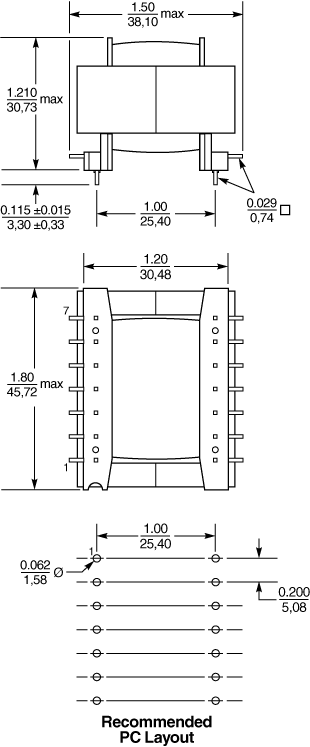

C1062-BL

一般规格

重量:

C1061-AL: 64.5 g, C1062-BL: 105.7 g

包装:

C1061-AL: 75 per tray
C1062-BL: 50 per tray

清洗

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
