ZD2250-AE, ZE2432-AE

Flyback Transformers for Texas Instruments LM5185-Q1

符合RoHS 无卤素 AEC-Q flag
Coilcraft ZD2250/ZE2432-AE flyback transformers are designed to work with the LM5185-Q1 100 Vin PSR flyback automotive DC-DC controller from Texas Instruments. These transformers have no auxiliary winding, reducing solution size and cost while achieving greater than 90% efficiency, making them suitablefor use in isolated bias power supplies for IGBT, SiC, and GaN gate drivers.

The ZD2250/ZE2432-AE are AEC qualified, making them ideal for automotive traction inverters, onboard chargers (OBC), EV charging stations, battery management systems (BMS), automotive DC-DC converters and wide range of other automotive and industrial applications.

  • Optimized to work with the PSR Flyback DC-DC controller LM5185-Q1 from Texas Instruments
  • Designed to operate with 18 – 60 V (ZD2250) and 9 – 60 V (ZE2432) input at 200 kHz
  • 2000 Vrms one minute isolation (hipot) primary to secondary
  • AEC-Q200 (–40°C to +125°C), with max part temp at 165°C

立即购买:
计数 单价
1 $7.86
100 $6.42
250 $4.81
500 $2.89
1000 $2.25
2500 $1.93
5000 $1.77

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:

典型应用

与Texas Instruments LM5185-Q1一起使用

零件号 输入电压 输出 功率 Fsw
ZD2250-AED 18 V 60 V 16 V , 1 A 16 W 200 kHz
ZE2432-AED 9 V 60 V 16 V , 1 A 16 W 200 kHz

规格

Electrical specifications at 25°C.

零件号
(Hover for schematics)
0A时的
电感 (µH) 1
(公差: ±10%)
Isat (A) 2 DCR max (Ω) 3 最大
漏电感
(µH) 4
匝数比 隔离
电压 (Vrms) 5
Pri Sec Pri : Sec
ZD2250-AED 12 5.5 0.025 0.025 0.20 1 : 1 2000
ZE2432-AED 9 7.5 0.025 0.025 0.15 1 : 1 2000
注释
  1. Inductance is for the primary, measured at 200 kHz, 0.1 Vrms, 0 Adc.
  2. DC current that causes an inductance drop of 30% (typ) from its value without current.
  3. DCR values specified with windings connected in parallel.
  4. Leakage inductance is for the primary winding (connected in parallel) with the secondary windings shorted.
  5. 2000 Vrms, isolation (hipot) measured between primary windings (connected in parallel) to secondary windings (connected in parallel).

端子:

  • RoHS-compliant. 260°C compatible. RoHStin-silver over tin over nickel over phos bronze. Other terminations available at additional cost.

包装:

  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape (200 parts per reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
环境
环境:
符合RoHS , 无卤素
环境温度范围:
–40°C to +125°C
储存温度范围:
Component: –40°C to +165°C
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+165°C (ambient + temperature rise)
故障率(FIT)/平均故障间隔时间(MTBF):

性能曲线

L vs Current

原理图


Connect pin 2 to 1, pin 10 to 9, and pin 6 to 7 on the PC board

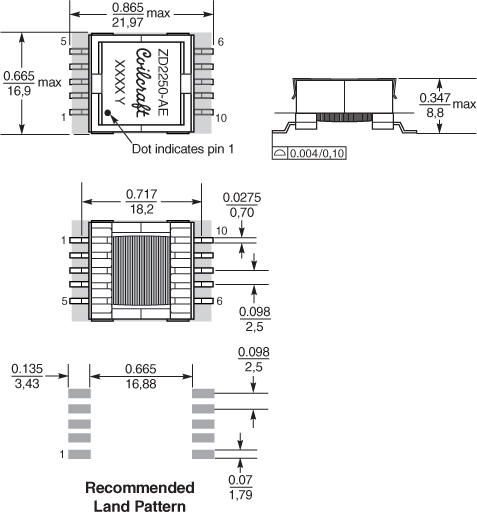

物理特性



卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_f.gif
200 330 100 13 50,4 44,4 44 28 4 2 9,55 0,5

一般规格

核心材料:
Ferrite
重量:
5.5 g
包装:
200 per 13″ reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 9.55 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
