FCT1-xxD3SL Forward Mode Transformers

for 30 Watt Telecommunications

Designed for applications up to 30 Watts in forward converter topologies.
Developed to meet IEEE 802.3at-2009 standard.
36 – 72 V input
250 kHz switching frequency
12 V aux winding output; 5 V sync winding output

立即购买:

零件号

查找我的元件

计数	单价
1	$7.22
175	$5.79
700	$3.48
1400	$2.71
2800	$2.33
5000	$2.14

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	功率 (W)	输入电压 (V)	最小电感 (µH) 2	DCR max (mΩ) 3				最大漏电感 (µH) 4	匝数比 5	频率 (kHz)	隔离电压 (Vrms) 6	次级输出 (V, A)
零件号 1 (Hover for schematics)	功率 (W)	输入电压 (V)	最小电感 (µH) 2	Pri	Sec	Sync	Bias	最大漏电感 (µH) 4	Pri : Sec : Sync : Bias	频率 (kHz)	隔离电压 (Vrms) 6	次级输出 (V, A)
FCT1-33D3SL_	30	36 — 72	72.9	27.5	5.0	160.0	250.0	0.425	1 : 0.33 : 0.56 : 1	250	1500	3.3 V , 9 A
FCT1-50D3SL_	30	36 — 72	72.9	27.5	10.0	160.0	250.0	0.420	1 : 0.44 : 0.56 : 1	250	1500	5 V , 6 A
FCT1-120D3SL_	30	36 — 72	72.9	27.5	28.5	160.0	250.0	0.175	1 : 1 : 0.56 : 1	250	1500	12 V , 2.5 A
FCT1-195D3SL_	30	36 — 72	72.9	27.5	32.0	160.0	250.0	0.235	1 : 1.44 : 0.44 : 0.88	250	1500	19.5 V , 1.55 A
FCT1-240D3SL_	30	36 — 72	72.9	27.5	72.5	160.0	250.0	0.235	1 : 1.78 : 0.44 : 0.88	250	1500	24 V , 1.25 A

注释

When ordering, please specify packaging code: e.g. FCT1-240D3SLD
Inductance is measured at 250 kHz, 0.2 Vrms, 0 Adc.
DCR for the primary and secondary is with the windings connected in parallel.
Leakage inductance is for the primary windings with the secondary windings shorted.
Turns ratio is with the primary windings and the secondary windings connected in parallel.
1500 Vrms winding to winding isolation.

端子:

L = RoHS tin-silver over tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

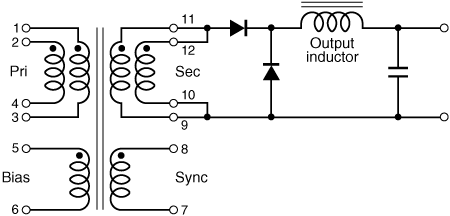

原理图

The primary windings and the secondary windings are to be
connected in parallel on the PC board.

Transformer	Recommended output inductor
FCT1-33D3SL	SER2013-472
FCT1-50D3SL	SER1360-103
FCT1-120D3SL	MSS1278-563
FCT1-195D3SL	MSS1278-154
FCT1-240D3SL	MSS1278-224

These inductors are recommended for 30% ripple current. Ripple less than 30% may require the use of physically larger inductors. Allowing higher ripple current to make use of smaller inductors may create a risk of discontinuous output current.

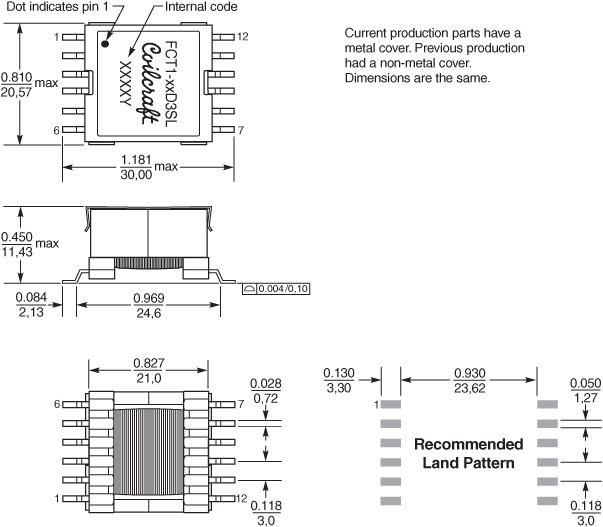

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	12,0	0,4

一般规格

核心材料:

Ferrite

重量:

10.1 – 10.7 g

包装:

175 per 13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 12.0 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.
