ZA9668-AE and ZB1175-AE Isolated Buck Transformers

Great News! More Choices!

See ZE2413-AE for space saving with less board area.

Optimized for STMicroelectronics 38V/5W automotive Iso-Buck converter A6986I and L6986I
Suitable for automotive isolated IGBT/SiC gate driver, On-board charger for HEV/EV, Electric Traction Systems, and similar applications
AEC-Q200 Grade 1 (−40°C to +125°C)
3300 Vrms, one minute isolation (hipot) from primary to secondary

立即购买:

零件号

查找我的元件

计数	单价
1	$9.35
100	$8.18
250	$6.13
500	$3.68
1000	$2.87
2500	$2.46
5000	$2.25

对于大批量采购或非库存产品，点击这里请求报价。

Termination

E = Tin-silver-copper over tin over nickel over phos bronze

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

典型应用

与STMicroelectronics A6986I and L6986I一起使用

零件号	输入电压	输出	功率	Fsw
ZA9668-AE_	5 V	29 V , 0.2 A	5.8 W	500 kHz
ZB1175-AE_	5 V	8 V , 0.2 A	1.6 W	500 kHz

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	Isat (A) 2	DCR max (Ω)		最大漏电感 (µH) 3	匝数比	隔离电压 (Vrms) 4
零件号 (Hover for schematics)	0A时的电感 (µH) 1 (公差: ±10%)	Isat (A) 2	Pri	Sec	最大漏电感 (µH) 3	Pri : Sec	隔离电压 (Vrms) 4
ZA9668-AE_	18	3.5	0.075	1.490	0.24	1 : 5.8	3300
ZB1175-AE_	18	2.6	0.053	0.160	0.18	1 : 1.6	3300

注释

Inductance is for the primary, measured on at 500 kHz, 0.2 Vrms, 0 Adc.
Isat: DC current that causes an inductance drop of 30% (typ) from its value without current.
Leakage Inductance is for the primary, measured with secondary windings shorted together.
3300 Vrms, one minute isolation (hipot) from primary to secondary.

端子:

RoHS tin-silver-copper (95.5/3.8/0.7) over tin over nickel over phos bronze.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

−40°C to +125°C

储存温度范围:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+155°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

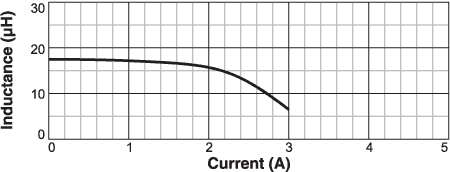

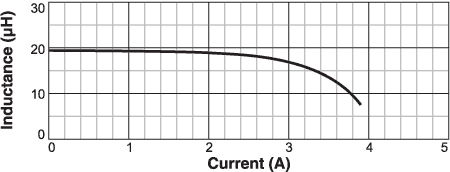

性能曲线

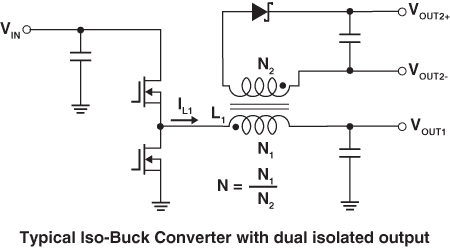

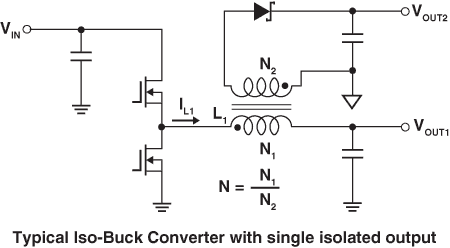

原理图

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	330	100	13	38,4	32,4	32	20	4	2	11,2	0,5

一般规格

核心材料:

Ferrite

重量:

4.12 g

包装:

250 per 13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 11.2 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
