3D Model Datasheet

WA8582-AL

Isolation Transformer

Designed specifically for automotive active cell balance battery management system.
Suitable for power driver ICs, low power isolation, gate drive and other power applications.
AEC-Q200 Grade 1 (−40°C to +125°C)

立即购买:

计数	单价
1	$3.39
200	$2.88
600	$1.73
1200	$1.35
3000	$1.18
6000	$1.08

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	功率 (W) 2	初级/次级电压 (V)	0A时的电感 (µH) 3 (公差: ±25%)	DCR max (Ω) 4		匝数比	电压-时间乘积 (V-µs) 5	隔离电压 (Vrms) 6
零件号 1 (Hover for schematics)	功率 (W) 2	初级/次级电压 (V)	0A时的电感 (µH) 3 (公差: ±25%)	Pri	Sec	Pri : Sec	电压-时间乘积 (V-µs) 5	隔离电压 (Vrms) 6
WA8582-AL_	2	5 / 5	136.8	0.310	0.475	1 : 1.33	22.7	1500

注释

When ordering, please specify termination and packaging codes: e.g. WA8582-ALD
Calculated output power based on 250 kHz operating frequency. Power varies depending on application.
Inductance is for the primary, measured from pins 1 to 2 at 250 kHz, 0.1 Vrms, 0 Adc.
DCR is for each winding of the primary and secondaryat 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Volt-time product is for the primary, between pin 1 and 4, with 2 and 3 connected.
1500 Vrms, one minute primary to secondary isolation (hipot); 500 Vrms winding to core isolation.

端子:

L = RoHS compliant tin-silver over tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5) or S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (600 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+165°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

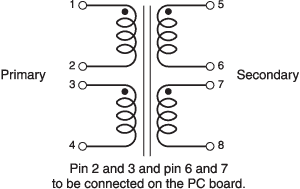

原理图

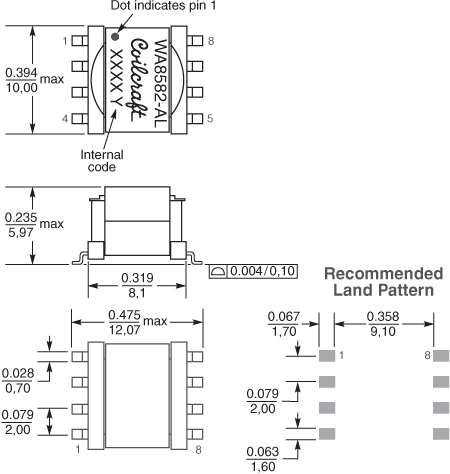

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
600	330	100	13	30,4	24,4	24	16	4	2	6,1	0,37

一般规格

核心材料:

Ferrite

重量:

0.95 g

包装:

600/13″ reel; Plastic tape: 24 mm wide, 0.37 mm thick, 16 mm pocket spacing, 6.1 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
