Isolation Transformers

符合RoHS AEC-Q flag
  • Developed to work with Analog Devices ADuM347x Quad Digital Isolators with Integrated Transformer Driver
  • Center tapped primary and secondary
  • Designed to meet UL/CSA/IEC 60950 Basic Insulation; 1.5 mm creepage and clearance.
  • AEC-Q200 Grade 1 (−40°C to +125°C)

立即购买:
计数 单价
1 $7.37
50 $6.87
100 $6.73
300 $5.05
600 $3.03
1200 $2.36
5000 $1.88

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:

典型应用

与Analog Devices ADuM347x一起使用

零件号 输入电压 初级电压 次级电压 功率
PA6547-AL_ 5 V 5 V 3.3 V 5 V 2 W
PA6548-AL_ 5 V 5 V 12 V 15 V 2 W
PA6549-AL_ 5 V 5 V 12 V 15 V 2 W

规格

Electrical specifications at 25°C.

零件号 1
(Hover for schematics)
最小
电感 (µH) 2
DCR max (Ω) 3 最大
漏电感
(µH) 4
匝数比 电压-时间
乘积 (V-µs) 5
隔离
电压 (Vrms) 6
Pri Sec Pri : Sec
PA6547-AL_ 63.75 0.10 0.19 0.460 1 : 2 17.6 2500
PA6548-AL_ 63.75 0.12 0.26 0.660 1 : 3 17.6 2500
PA6549-AL_ 63.75 0.10 1.17 0.515 1 : 5 17.6 2500
注释
  1. When ordering, please specify packaging code: e.g. PA6547-ALD
  2. Inductance is for the primary, measured from pins 4– 3 at 1 kHz, 0.1 Vrms.
  3. DCR is for each winding of the primary and secondary
  4. Leakage inductance is for the primary windings, measured from pins 1– 4 with all secondary windings shorted.
  5. Based on Bsat of the core at 25°C and the number of turns on winding 4-3.
  6. Isolation: 2500 Vrms primary to secondary; 1250 Vrms windings to core

端子:

  • Tin-silver over tin over nickel over phos bronze.

包装:

  • D = 13″ machine ready reel. EIA-481 embossed plastic tape (600 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +125°C
储存温度范围:
Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+150°C (ambient + temp rise)
故障率(FIT)/平均故障间隔时间(MTBF):

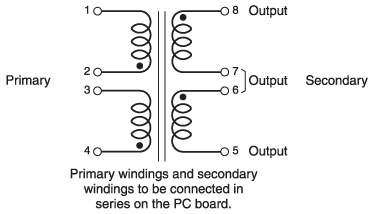

原理图


物理特性



卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_c.gif
600 330 100 13 30,4 24,4 24 16 4 2 6,1 0,37

一般规格

核心材料:
Ferrite
重量:
0.95 – 0.98 g
包装:
600/13″ reel; Plastic tape: 24 mm wide, 0.37 mm thick, 16 mm pocket spacing, 6.1 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
