Miniature Surface Mount Transformers

Designed specifically for use with Maxim RS-232 / RS-485 interface ICs
Also specified by Linear Technology and Sipex
Ideal for isolated bias supplies for SiC and GaN gate driver, such as the Skyworks Si827x series.
Suitable for gate drive and other power applications
Miniature surface mount package
Stainless steel cover serves as an excellent pick and place surface

立即购买:

零件号

查找我的元件

计数	单价
1	$2.12
250	$1.83
500	$1.58
1000	$1.38
3000	$1.19
5000	$1.09

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

	Chipset
	Linear LT1952	Linear LTC3900	Maxim 250/251	Maxim 253/845	Maxim 3535E	Sipex SP3222	Sipex SP3232
Q4470-CL	✔	✔		✔	✔
S5394-CL				✔
U6982-CL				✔	✔	✔	✔
T6437-DL			✔
S5499-DL				✔
T6650-DL				✔

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	功率 (W) 2	初级/次级电压 (V)	输入电压 (V)	最小电感 (µH)	DCR max (Ω) 3		匝数比	电容 typ (pF) 4	电压-时间乘积 (V-µs) 5	隔离电压 (Vrms) 6	尺寸
零件号 1 (Hover for schematics)	功率 (W) 2	初级/次级电压 (V)	输入电压 (V)	最小电感 (µH)	Pri	Sec	Pri : Sec	电容 typ (pF) 4	电压-时间乘积 (V-µs) 5	隔离电压 (Vrms) 6	尺寸
Q4470-CL_	0.25	5 / 5	5	400	0.950	1.250	1 : 1.3	0.87	32	1500	C
S5394-CL_	0.25	5 / 10	5	400	0.950	0.950	1 : 1	0.92	32	1500	C
U6982-CL_	0.75	3.3 / 5	3.3	59	0.700	1.800	1 : 2.1	0.93	32	1500	C
T6437-DL_	1.5	5 / 5	5	1000	1.010	1.955	1 : 1	1.88	134	1500	D
S5499-DL_	1	5 / 24	5	160	0.540	4.280	1 : 5	1.59	48	1500	D
T6650-DL_	1	5 / 24	5	176	1.015	8.250	1 : 5	1.25	48	1500	D

注释

When ordering, please specify packaging code: e.g. Q4470-CLD
Calculated output power is based on 150 kHz operating frequency. Power rating varies depending on application.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Capacitance measured from full primary to full secondary at 200 kHz.
Volt-time product is for the primary.
1500 Vrms isolation between windings.

端子:

Tin-silver over tin over nickel over phos bronze.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (Size C: 1000 per full reel; Size D: 500 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C

储存温度范围:

Component: −40°C to +85°C
Tape and reel packaging: −40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

Q4470	S5394	U6982	T6437	S5499	T6650

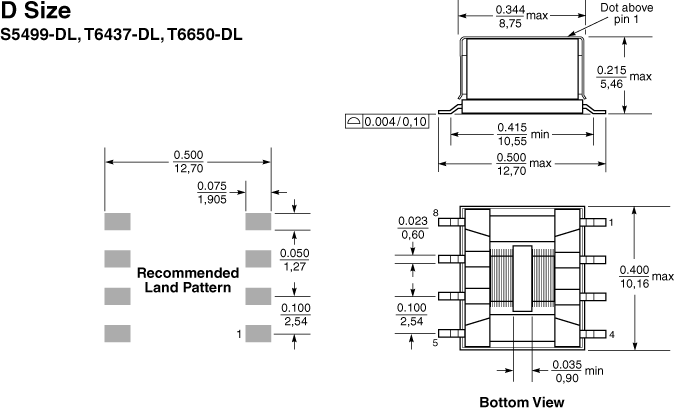

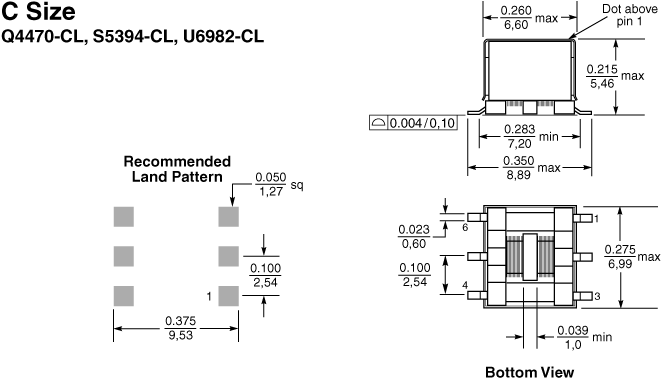

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T	C size D size
1000 (C size)	330	100	13	22,4	16,4	16	12	4	2	5,33	0,34
500 (D size)	330	100	13	30,4	24,4	24	16	4	2	6,13	0,36

一般规格

重量:

Q4470-CL, S5394-CL, U6982-CL = 510 - 550 mg; S5499-DL,T6437-DL,T6650-DL = 0.98 - 1.1 g

包装:

C Size: 1000 per 13″ reel Plastic tape: 16 mm wide, 0.34 mm thick, 12 mm pocket spacing, 5.33 mm pocket depth
D Size: 500 per 13″ reel Plastic tape: 24 mm wide, 0.36 mm thick, 16 mm pocket spacing, 6.13 mm pocket depth

焊接/清洗

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
