Transformers

for Analog Devices Quad Channel Isolators

Developed to work with Analog Devices ADuM347x Quad Digital Isolators with Integrated Transformer Driver
For AEC-Q200 qualified parts, please click here.
The Coilcraft ME3220-104KL is also selected as a recommended component
Center tapped primary and secondary
Power rating: 2 Watts; Volt-time product: 17.6 V-µsec (see note 5)
Designed to meet UL/CSA/IEC 60950-1 and 62638-1 Basic Insulation with 1.5 mm creepage and clearance.

立即购买:

零件号

查找我的元件

计数	单价
1	$5.94
50	$4.54
100	$3.64
300	$3.00
600	$2.62
1200	$1.84
5000	$1.59

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

典型应用

与Analog Devices ADuM347x一起使用

零件号	输入电压	初级电压	次级电压	功率
JA4631-BL_	5 V	5 V	3.3 V — 5 V	2 W
JA4650-BL_	5 V	5 V	12 V — 15 V	2 W
KA4976-AL_	5 V	5 V	12 V — 15 V	2 W

规格

Electrical specifi cations at 25°C.

零件号 1 (Hover for schematics)	最小电感 (µH) 2	DCR max (Ω) 3		最大漏电感 (µH) 4	匝数比	电压-时间乘积 (V-µs) 5	隔离电压 (Vrms) 6
零件号 1 (Hover for schematics)	最小电感 (µH) 2	Pri	Sec	最大漏电感 (µH) 4	Pri : Sec	电压-时间乘积 (V-µs) 5	隔离电压 (Vrms) 6
JA4631-BL_	63.75	0.095	0.190	0.46	1 : 2	17.6	2500
JA4650-BL_	63.75	0.122	0.260	0.66	1 : 3	17.6	2500
KA4976-AL_	63.75	0.095	1.170	0.52	1 : 5	17.6	2500

注释

When ordering, please specify packaging code: e.g. JA4631-BLD
Inductance is for the primary, measured from pins 4 – 3 at 1 kHz, 0.1 Vrms.
DCR is for each winding of the primary and secondary.
Leakage inductance is for the primary windings, measured from pins 1 – 4 with all secondary windings shorted.
Based on Bsat of the core at 25°C and the number of turns on winding 4 – 3.
Isolation: 2500 Vrms primary to secondary; 500 Vrms windings to core.

端子:

Tin-silver over tin over nickel over phos bronze.

包装:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (600 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

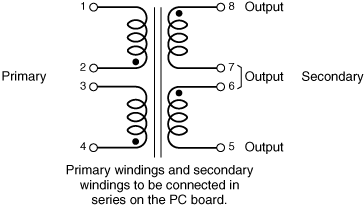

原理图

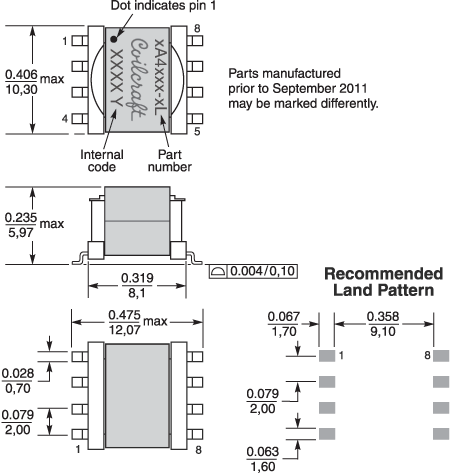

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
600	330	100	13	30,4	24,4	24	16	4	2	6,1	0,37

一般规格

核心材料:

Ferrite

重量:

0.95 – 0.98 g

包装:

600/13″ reel; Plastic tape: 24 mm wide, 0.37 mm thick, 16 mm pocket spacing, 6.1 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited fl oor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second refl ows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested with pure water or alcohol only. More info.
