CU8965-AL

SMT Current Sense Transformer

Developed for Analog Devices ADP1051 Eighth Brick Power Module
AEC-Q200 Grade 1 (−40°C to +125°C)
Sensed current up to 20 Amps
Designed for use between 16 kHz to 1 MHz and above

立即购买:

计数	单价
1	$1.66
300	$1.43
600	$1.36
1200	$1.12
2400	$0.96
4800	$0.88

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	最小电感 (mH) 2	DCR max (Ω)		匝数比	电压-时间乘积 (V-µs) 3	频率 (kHz) 4	电流 (A) 5	终端电阻 R_T (Ω) 6	隔离电压 (Vrms) 7
零件号 1 (Hover for schematics)	最小电感 (mH) 2	Pri	Sec	Pri : Sec	电压-时间乘积 (V-µs) 3	频率 (kHz) 4	电流 (A) 5	终端电阻 R_T (Ω) 6	隔离电压 (Vrms) 7
CU8965-AL_	1.3	0.0015	10.7	1 : 100	32	16 — >1000	20.0	5.0	1000

注释

When ordering, please specify packaging code: e.g. CU8965-ALC
Inductance measured between secondary pins at 100 kHz, 0.1 Vrms, 0 Adc.
Volt-time product is for the secondary, between pin 1 and 2.
For specific questions regarding frequency range, please contact us at [email protected].
Primary current of 20 A causes approximately 25°C temperature rise above 25°C ambient (see Temperature Rise vs Current curve).
Terminating resistance (R_T) value is based on 1 Volt output with 20 Amps flowing through the primary. Varying terminating resistance increases or decreases output Voltage/Ampere according to the following equation:
R_T (Ohms) = V_out × N_sec / I_in.
1000 Vrms, one second isolation (hipot) winding to winding.

端子:

RoHS-compliant, halogen free. 260°C compatible. Tin-silver-copper over matte tin over nickel over copper (pins 1 - 2); matte tin over nickel over copper (pins 3 - 4).

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (600 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (2500 parts per full reel).

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+165°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

Temperature vs Current

原理图

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
600	2500*	178/330	60/100	13	22,4	16,4	16	8	4	2	3,0	0,35

一般规格

核心材料:

Ferrite

重量:

0.16 g

包装:

600/7″ reel; 2500/13″ reel Plastic tape: 16 mm wide, 0.35 mm thick, 8 mm pocket spacing, 3.0 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.

CU8965-AL

SMT Current Sense Transformer

规格

端子:

包装:

性能曲线

Temperature vs Current

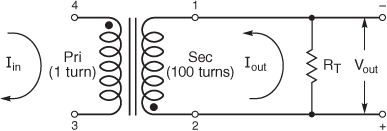

原理图

物理特性

卷装规格

一般规格

焊接/清洗
