CST2010 Series SMT

Current Sense Transformers

Sensed current up to 47 Amps
Designed for use up to 1 MHz and above
Very low primary DC resistance
AEC-Q200 Grade 1 (−40°C to +125°C)

Need parts for space, military or other critical applications?
See Coilcraft ST629TCB Series

立即购买:

零件号

查找我的元件

计数	单价
1	$2.01
300	$1.71
600	$1.51
1200	$1.30
2400	$1.11
4800	$1.02

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	0A时的电感 (mH) 2 (公差: ±30%)	DCR max (Ω) 3		匝数比	电压-时间乘积 (V-µs) 4	频率 (kHz) 5	电流 (A) 6	终端电阻 R_T (Ω) 7	隔离电压 (Vrms) 8
零件号 1 (Hover for schematics)	0A时的电感 (mH) 2 (公差: ±30%)	Pri	Sec	Pri : Sec	电压-时间乘积 (V-µs) 4	频率 (kHz) 5	电流 (A) 6	终端电阻 R_T (Ω) 7	隔离电压 (Vrms) 8
CST2010-020L_	0.34	0.00036	0.18	1 : 20	50.8	10 — >1000	47	0.50	1500
CST2010-030L_	0.76	0.00036	0.265	1 : 30	76.2	7 — >1000	47	0.80	1500
CST2010-040L_	1.36	0.00036	0.56	1 : 40	101.6	5 — >1000	47	1.0	1500
CST2010-050L_	2.12	0.00036	0.705	1 : 50	127	4 — >1000	47	1.3	1500
CST2010-060L_	3.06	0.00036	0.85	1 : 60	152.4	3 — >1000	47	1.5	1500
CST2010-070L_	4.16	0.00036	1	1 : 70	177.8	3 — >1000	47	1.8	1500
CST2010-080L_	5.44	0.00036	1.15	1 : 80	203.2	2 — >1000	47	2.0	1500
CST2010-100L_	8.50	0.00036	1.45	1 : 100	254	2 — >1000	47	2.5	1500
CST2010-125L_	13.30	0.00036	1.85	1 : 125	317.5	2 — >1000	47	3.1	1500
CST2010-150L_	19.20	0.00036	2.25	1 : 150	381	1 — >1000	47	3.8	1500
CST2010-200L_	34.00	0.00036	4.06	1 : 200	508	1 — >1000	47	5.0	1500

注释

When ordering, please specify packaging code: e.g.CST2010-200LD
Inductance measured between secondary pins at 1 kHz, 0.1 Vrms, 0 Adc.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Volt-time product is for the secondary, between pin 2 and 4.
For specific questions regarding frequency range, please contact us at [email protected].
Primary current of 47 A causes approximately 40°C temperature rise from 25°C ambient. Higher current causes a greater temperature rise (see Temperature Rise vs Current curve).
Terminating resistance (R_T) value is based on 1 Volt output with 40 Amps flowing through the primary. Varying terminating resistance increases or decreases output Voltage/Ampere according to the following equation:
R_T= V_out × N_sec / I_in.
1500 Vrms, one minute isolation (hipot) winding to winding.

端子:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze (pins 1-10); Matte tin over nickel over copper (pins 11-12).

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (300 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +165°C.
Tape and reel Packaging: –40°C to +80°C

最高元件温度:

+165°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

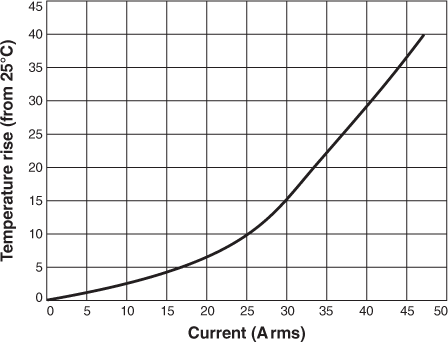

Temperature vs Current

原理图

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
300	330	100	13	38,4	32,4	32	20	4	2	10,6	0.50

一般规格

核心材料:

Ferrite

重量:

4.13 g

包装:

300/13″ reel; Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 10.6 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More Info.
