HP1 Series

Hexa-Path Magnetics

Six 1 : 1 isolated windings that can be connected in series or parallel
Tightly coupled windings
500 Vrms isolation between each winding
UL1446 Class F (155°C) Insulation System (UL File E83628)
Power range: 5 – 50 Watts as inductor and flyback transformer;
up to 150 Watts as forward transformer
Frequency range up to 1 MHz

立即购买:

零件号

查找我的元件

计数	单价
1	$4.98
100	$4.52
250	$2.94
500	$2.58
1000	$2.38
2500	$2.19
5000	$1.89

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver over tin over nickel

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2	公差 (%)	DCR max (mΩ) 3	电压-时间乘积 (V-µs) 4	峰值储能 (µJ) 5	Isat (A) 6	Irms (mA) 7
HP1-0059L_	3.8	5	145	23.4	93.8	1.4	740
HP1-0076L_	4.9	10	145	23.4	74.7	1.1	740
HP1-0102L_	6.5	15	145	23.4	55.1	0.82	740
HP1-0190L_	12	20	145	23.4	29.8	0.44	740
HP1-1400L_	90	25	145	23.4	Note 8	Note 8	740
HPH1-0059L_	8.5	5	340	35.1	107	1.0	620
HPH1-0076L_	11	10	340	35.1	99.2	0.85	620
HPH1-0102L_	15	15	340	35.1	60.2	0.57	620
HPH1-0190L_	27	20	340	35.1	31.1	0.30	620
HPH1-1400L_	202	25	340	35.1	Note 8	Note 8	620

注释

When ordering, please specify packaging code: e.g. HPH1-1400LD
Inductance is per winding, measured at 100 kHz, 0.1 Vrms, 0 Adc.
DCR is per winding, measured at 25°C on Cambridge Technology micro-ohmmeter or equivalent. For other operating temperatures,use this DCR at Temperature calculator.
Volt-time product is for a single winding or multiple windings connected in parallel. To calculate volt-time product for windings connected in series, multiply the value specified in the table by the number of windings connected.
Peak energy storage is for any combination of windings, assuming saturation current applied. See note 6 for definition of saturation current.
Isat: DC current at which the inductance drops 30% typ from its value without current, based on current applied to all six windings connected in series. For applications where all windings are not connected in series, use the following equation to calculate Isat: Isat = Isat(table) × 6 ÷ number of windings in series.
Irms: Current that causes a 40°C rise from 25°C ambient due to self heating, tested with continuous current flow through all windings connected in series. Application temperature rise will depend on the operating current, duty cycle, and winding connection.
Part is designed exclusively for use as a forward converter transformer and was not tested for energy storage and saturation current.

端子:

L = RoHS compliant tin-silver over tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C with Irms current

储存温度范围:

Component: −40°C to +125°C
Packaging tape and reel or tray: −40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

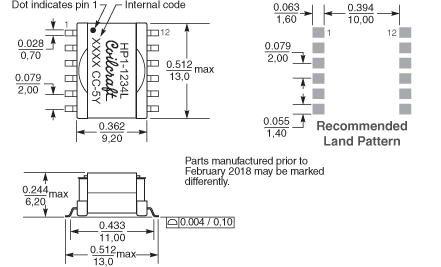

物理特性

卷装规格

	Parts per reel		Reel dimensions (mm)						Tape dimensions (mm)						Orientation
	13" (330 mm)		A	B	C	D	E		W	P	Po	P1	H	T	Orientation
HP1 / HPH1	500		330	100	13	30,4	24,4		24	20	4	2	6,6	0,5

一般规格

核心材料:

Ferrite

重量:

1.4 g

包装:

500 per 13" reel

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
