FA2786-BL CCFL Transformer

for TI TPS68000

Developed for Texas Instruments TPS68000 full bridge CCFL Controller
Specified by TI in TPS68000EVM-202 dual-transformer reference design

立即购买:

计数	单价
1	$5.12
400	$4.39
800	$3.81
1200	$3.32
2400	$2.85
5000	$2.61

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

规格

Electrical specifications at 25°C.

零件号 1	匝数比	功率 (W)	最小电感 (µH) 2	输入电压 (V)	Imax sec (A)	Vrms sec (V) 3	Vinst max sec (V) 4	DCR max (Ω) 5		隔离电压 (Vrms) 6
零件号 1	Pri : Sec	功率 (W)	最小电感 (µH) 2	输入电压 (V)	Imax sec (A)	Vrms sec (V) 3	Vinst max sec (V) 4	Pri	Sec	隔离电压 (Vrms) 6
FA2786-BL_	1 : 100	6.0	160	8 — 20	7.0	1600	2000	0.62	937	500

注释

When ordering, please specify packaging code: e.g. FA2786-BLD.
Inductance is measured at 1.0 Vrms, 60 kHz, 0 Adc.
Vrms = continuous voltage.
Vinst = instantaneous voltage at startup.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
500 Vrms interwinding isolation and 2000 Vrms from windings to core.

端子:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos-bronze.

包装:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (400 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境温度范围:

−40°C to +85°C

储存温度范围:

Component: −40°C to +85°C
Tape and reel packaging: −40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

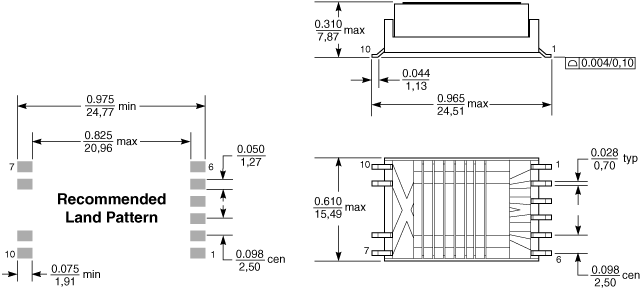

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
400	330	100	13	50,4	44,4	44	20	4	2	7,8	0,37

一般规格

重量:

6.0 g

包装:

400/13″ reel Plastic tape: 44 mm wide, 0.37 mm thick, 20 mm pocket spacing, 7.8 mm pocket depth.

焊接/清洗

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
