3D Model Datasheet

SMT Flyback Transformer

Smallest capacitor charging transformer: 6.2 × 6.8 mm footprint and 4.6 mm high
Developed for ON Semiconductor NCP5080 Photoflash Capacitor Charger

立即购买:

计数	单价
1	$3.29
250	$2.90
500	$2.43
1000	$2.03
2500	$1.83
5000	$1.67

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

典型应用

与ON Semiconductor NCP5080一起使用

输入电压	输出
2.7 V — 5.5 V	350 V

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	0A时的电感 (µH) 2 (公差: ±10%)	最小电感 1.2 A (µH)	DCR max (Ω) 3		最大漏电感 (µH) 4	匝数比	隔离电压 (Vrms) 5
零件号 1 (Hover for schematics)	0A时的电感 (µH) 2 (公差: ±10%)	最小电感 1.2 A (µH)	Pri	Sec	最大漏电感 (µH) 4	Pri : Sec	隔离电压 (Vrms) 5
CJ5143-AL_	15.0	13.5	1.0	25.0	0.3	1 : 15	1000

注释

When ordering, please specify termination and packaging codes: e.g. CJ5143-ALD
Inductance measured at 1.0 kHz, 1.0 Vrms.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance is for the primary winding with the secondary winding shorted, measured at 100 kHz, 1 Vrms.
1000 Vrms, one minute primary to secondary isolation.

端子:

L = RoHS compliant tin-silver over copper.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1000 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

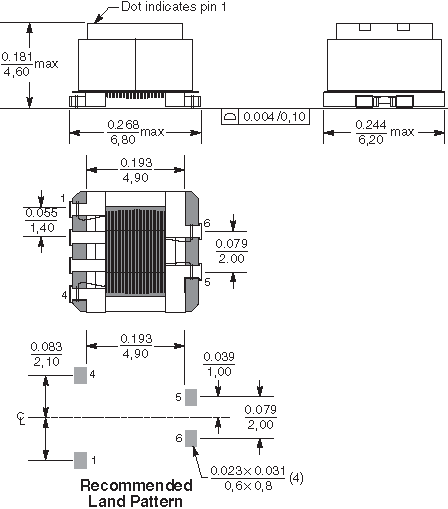

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
250	1000	178/330	60/100	13	22,4	16,4	16	12	4	2	5,0	0,35

一般规格

核心材料:

Ferrite

重量:

0.30 g

包装:

250/7″ reel; 1000/13″ reel Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 5.0 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
