3D Model Datasheet

RA6998 Forward Mode Planar Transformer

for Maxim MAX17599 PWM Controller

Developed for use with Maxim MAX17599 Active Clamp Current-Mode PWM Controller.
Designed for forward topology operating at 250 kHz with an input range of 18 – 36 V.

立即购买:

计数	单价
1	$8.06
200	$6.91
600	$6.02
1200	$4.68
2400	$4.01
4800	$3.67

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

B = Less than full reel

. 现货，可今天发货.

索取样品:

典型应用

与Maxim MAX17599一起使用

输入电压	输出 1		Fsw
输入电压	Sec	Gate	Fsw
18 V — 36 V	12 V , 3.3 A	4 V , 0.25 A	250 kHz

规格

Electrical specifications at 25°C.

零件号 2 (Hover for schematics)	0A时的电感 (µH) 3 (公差: ±20%)	DCR max (mΩ) 4			最大漏电感 (µH) 5	匝数比	隔离电压 (Vrms) 6
零件号 2 (Hover for schematics)	0A时的电感 (µH) 3 (公差: ±20%)	Pri	Sec	Gate	最大漏电感 (µH) 5	Pri : Sec : Gate	隔离电压 (Vrms) 6
RA6998-BL_	80	15.0	22.0	45.0	0.35	1 : 1.125 : 0.375	1500

注释

Output is for the secondary winding. Output of the gate winding is 4 V, 0.25 A.
When ordering, please specify packaging code: e.g. RA6998-BLD
Inductance is measured at 250 kHz, 0.1 Vrms.
DCR for the secondary is measured with the windings connected in parallel. DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance is for the primary winding with the secondary windings shorted.
1500 Vrms isolation from primary to secondary and gate.

端子:

RoHS-compliant 260°C compatible. Tin-silver (96.5/3.5) over tin over nickel over phos bronze terminations.

包装:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (200 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C

储存温度范围:

Component: –40°C to +85°C
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

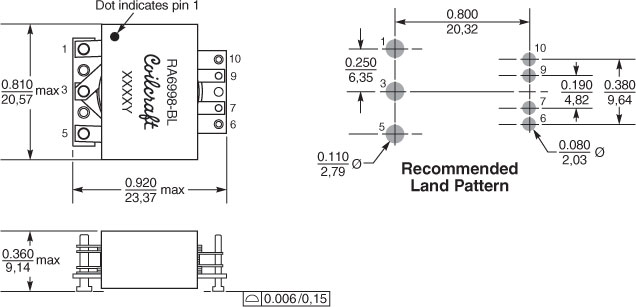

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	32	4	2	9,35	0,37

一般规格

核心材料:

Ferrite

重量:

10.6 g

包装:

200/13″ reel Plastic tape: 44 mm wide, 0.37 mm thick, 32 mm pocket spacing, 9.35 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested with pure water or alcohol only. More info.
