PL140 Series

SMT Planar Transformers

Three different schematics and 15 turns ratios to meet a variety of applications
Rated for 140 Watts output between 200 kHz and 500 kHz
Designed for −48 V input, making them ideal for Intermediate Bus Converters (IBC)
High efficiency, low DCR and low leakage inductance
Can be special ordered with an optional auxiliary winding
Samples are available in Coilcraft Designer's Kit C390

立即购买:

零件号

查找我的元件

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C390	6 (2 of each)	$80.00

规格

Electrical specifications at 25°C.

Two of each part shown in red are included in Designer's Kit C390

零件号 1 (Hover for schematics)	功率 (W)	输入电压 (V)	最小电感 (µH) 2	DCR max (mΩ) 3			最大漏电感 (µH) 4	匝数比	频率 (kHz)	隔离电压 (Vrms) 5
零件号 1 (Hover for schematics)	功率 (W)	输入电压 (V)	最小电感 (µH) 2	Pri	Sec1	Sec2	最大漏电感 (µH) 4	Pri : Sec1 : Sec2	频率 (kHz)	隔离电压 (Vrms) 5
PL140-100L_	140	36 — 75	120	24.0	4.0	-	0.35	1 : 0.5 : -	200	1500
PL140-101L_	140	36 — 75	152	32.8	4.0	-	0.35	1 : 0.444 : -	200	1500
PL140-102L_	140	36 — 75	188	41.6	4.0	-	0.35	1 : 0.4 : -	200	1500
PL140-103L_	140	36 — 75	227	48.8	4.0	-	0.35	1 : 0.363 : -	200	1500
PL140-104L_	140	36 — 75	270	56.0	4.0	-	0.45	1 : 0.333 : -	200	1500
PL140-105L_	140	36 — 75	120	24.0	0.5	0.5	0.35	1 : 0.125 : 0.125	200	1500
PL140-106L_	140	36 — 75	152	32.8	0.5	0.5	0.35	1 : 0.111 : 0.111	200	1500
PL140-107L_	140	36 — 75	188	41.6	0.5	0.5	0.35	1 : 0.1 : 0.1	200	1500
PL140-108L_	140	36 — 75	227	48.8	0.5	0.5	0.50	1 : 0.091 : 0.091	200	1500
PL140-109L_	140	36 — 75	270	56.0	0.5	0.5	0.60	1 : 0.083 : 0.083	200	1500
PL140-110L_	140	36 — 75	120	24.0	1.0	1.0	0.35	1 : 0.25 : 0.125	200	1500
PL140-111L_	140	36 — 75	152	32.8	1.0	1.0	0.35	1 : 0.22 : 0.11	200	1500
PL140-112L_	140	36 — 75	188	50.6	1.0	1.0	0.35	1 : 0.2 : 0.1	200	1500
PL140-113L_	140	36 — 75	227	48.8	1.0	1.0	0.35	1 : 0.181 : 0.091	200	1500
PL140-114L_	140	36 — 75	270	56.0	1.0	1.0	0.45	1 : 0.166 : 0.083	200	1500

注释

When ordering, please specify packaging code: PL140-114LD
Inductance measured on an Agilent/HP 4284 between pins 2 and 4 at 200 kHz, 0.1 Vrms, 0 Adc.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance measured between pins 2 and 4 at 100 kHz, 0.1 Vrms, 0 Adc with all secondary pins shorted.
1500 Vdc isolation primary to secondary.

端子:

RoHS-compliant. 260°C compatible. Matte tin over nickel over brass terminations.

包装:

D =13″ machine-ready reel.
EIA-481 embossed plastic tape (200 parts per full reel).
B = Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use code letter D instead.

辅助绕组:

To order a transformer with an optional auxiliary winding, add an “X” and the turn count after the PL140, e.g. PL140X3-100LB.
Turn counts of 2, 3, 4, 5, 7 and 9 are available for the auxiliary winding.
Transformers with auxiliary windings are not stocked. Call for lead time.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C

储存温度范围:

Component: −40°C to +85°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise) Storage temperature Component: –40°C to +85°C.

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

A	B	C	D	E	F

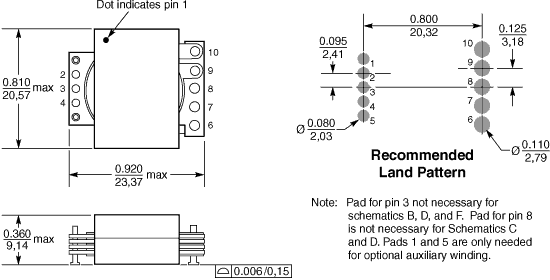

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	32	4	2	9,3	0,37

一般规格

核心材料:

Ferrite

重量:

10.9 – 12 g

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
