3D Model Datasheet

NA5871-AL 800 W Planar Transformer

for TI UCC28950 Controller

Designed for Texas Instruments PMP6712 Dual-Channel Full-Bridge Converter
for PoE Power Sourcing (PSE).
Listed as T2 and T4 on Texas Instruments BOM-PMP6712
Insulated bottom surface

立即购买:

计数	单价
1	$21.85
100	$20.92

对于大批量采购或非库存产品，点击这里请求报价。

. 现货，可今天发货.

索取样品:

典型应用

与Texas Instruments UCC28950一起使用

输入电压	输出	功率	Fsw
38 V — 60 V	54 V , 15 A	800 W	100 kHz

规格

Electrical specifications at 25°C.

零件号 (Hover for schematics)	最小电感 (µH) 1	DCR max (mΩ) 2		最大漏电感 (µH) 3	匝数比	隔离电压 (Vrms) 4
零件号 (Hover for schematics)	最小电感 (µH) 1	Pri	Sec	最大漏电感 (µH) 3	Pri : Sec	隔离电压 (Vrms) 4
NA5871-AL	42	1.37	4.40	0.20	1 : 1.67	1500

注释

Inductance measured on an Agilent/HP 4284 at 100 kHz, 0.1 Vrms, 0 Adc.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance is for the primary, measured with the secondary shorted.
1500 Vrms, one minute primary to secondary isolation (Hipot).

端子:

RoHS-compliant. 260°C compatible. Matte tin over nickel over brass.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +125°C

储存温度范围:

Component: −40°C to +125°C
Tray packaging: −40°C to +80°C

最高元件温度:

+165°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

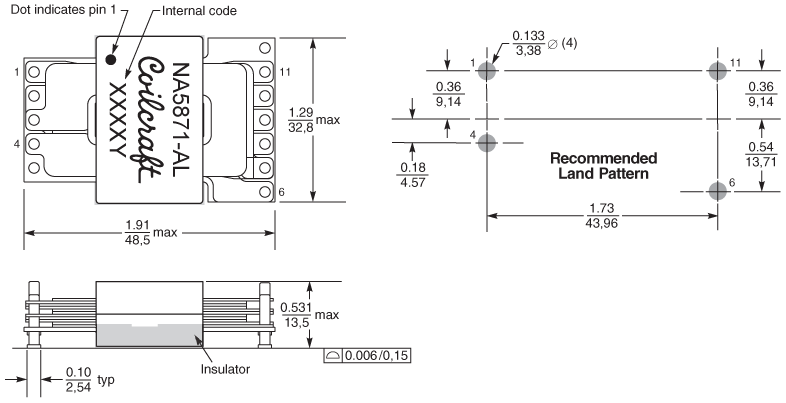

物理特性

一般规格

核心材料:

Ferrite

重量:

56 g

包装:

20 per tray

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >260°C, allowing parts to cool to room temperature between cycles.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
