3D Model Datasheet

JA4309 Planar Transformer

for Texas Instruments UCC2897A

Specially developed for use with the TI UCC2897A Active Clamp PWM Controller
Featured on PMP4804 and PMP5997 Demo Board/Reference Design
Low profile, high efficiency planar transformer

立即购买:

计数	单价
1	$17.03
200	$15.85
600	$13.80
1200	$10.73
2400	$9.20
5000	$8.44

对于大批量采购或非库存产品，点击这里请求报价。

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

典型应用

与Texas Instruments UCC2897A一起使用

输出	功率
3.3 V , 30 A	100 W

规格

Electrical specifications at 25°C.

零件号 1 (Hover for schematics)	最小电感 (µH) 2	DCR max (mΩ) 3			最大漏电感 (µH) 4	匝数比	隔离电压 (Vrms) 5
零件号 1 (Hover for schematics)	最小电感 (µH) 2	Pri	Sec1	Aux	最大漏电感 (µH) 4	Pri : Sec1 : Sec2 : Aux	隔离电压 (Vrms) 5
JA4309-AL_	67.5	20.0	0.50	160	0.35	1 : 0.167 : 0.167 : 0.667	1500

注释

When ordering, please specify a packaging code: JA4309-ALD.
Inductance measured on an Agilent/HP 4284 between pins 2 and 4 at 200 kHz, 0.1 Vrms, 0 Adc.
DCR for the secondary is for each winding.
Leakage inductance measured between pins 2 and 4 at 100 kHz, 0.1 Vrms, 0 Adc with all secondary pins shorted.
Primary to secondary.

端子:

RoHS-compliant. 260°C compatible. Matte tin over nickel over brass terminations. Other terminations available at additional cost.

包装:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (200 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C

储存温度范围:

Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

原理图

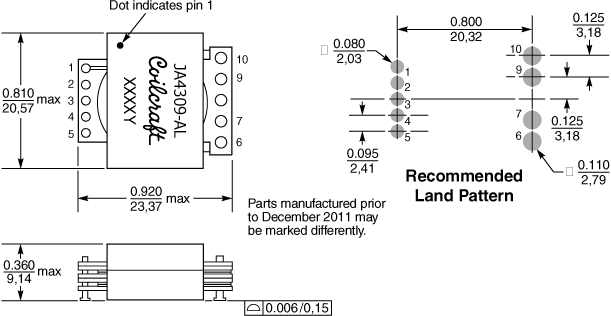

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	32	4	2	9,35	0,37

一般规格

核心材料:

Ferrite

重量:

11.6 g

包装:

200 per 13″ reel Plastic tape: 44 mm wide, 0.37 mm thick, 32 mm pocket spacing, 9.35 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf
