A9786-AL Planar Magnetics

for TI LM5041

Specially developed for use with the Texas Instruments LM5041 Cascaded PWM Controller
Low profile, high efficiency planar transformer
Planar output chokeinductor

立即购买:

零件号

查找我的元件

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

Transformer

零件号 1 (Hover for schematics)	功率 (W)	输入电压 (V)	最小电感 (mH) 2	DCR max (mΩ) 3			最大漏电感 (µH) 4	隔离电压 (Vrms)	次级输出 (V, A)
零件号 1 (Hover for schematics)	功率 (W)	输入电压 (V)	最小电感 (mH) 2	Pri	Sec	Aux	最大漏电感 (µH) 4	隔离电压 (Vrms)	次级输出 (V, A)
A9786-AL_	150	36 — 75	1.25	62.5	0.91	200	0.90	1100	2.5 V , 60 A

Output Inductor

零件号 5	电感 (µH) 6	DCR max (Ω)	隔离电压 (V) 7	Isat (A) 8	Irms (A) 9
零件号 5	电感 (µH) 6	DCR max (Ω)	隔离电压 (V) 7	Isat (A) 8	Irms (A) 9
A9787-AL_	57	0.017	1100	8.1	12.0

注释

When ordering, please specify packaging code: e.g.A9786-ALD
Inductance measured on an Agilent/HP 4284 between pins 1 and 3 at 250 kHz, 0.1 Vrms, 0 Adc.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Leakage inductance measured between pins 1 and 3 at 100 kHz, 0.1Vrms, 0 Adc with all secondary pins shorted.
When ordering, please specify packaging code: e.g. A9787-ALD.
Inductance measured on an Agilent/HP 4284 at 250 kHz, 0.1 Vrms.
Isolation measured from pins 1,2 to the core.
DC current at which inductance drops 10% (typ) from its value without current. Details
. Current that causes a 40°C rise from 25°C ambient. Details

端子:

RoHS-compliant. 260°C compatible. Matte tin over nickel over brass terminations.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (125 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C

储存温度范围:

Component: −40°C to +85°C
Tape and reel packaging: −40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

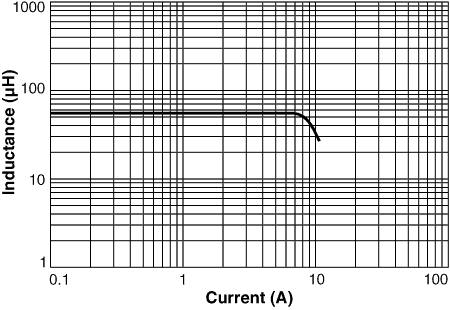

Inductance vs Current (A9787-A Planar Output Inductor)

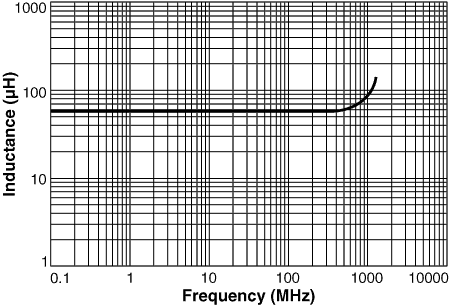

Inductance vs Frequency (A9787-A Planar Output Inductor)

原理图

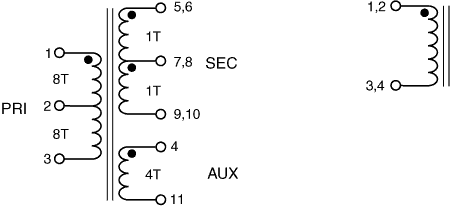

Planar Transformer Planar Output Inductor

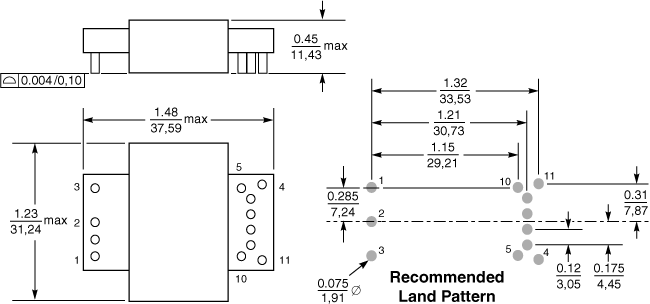

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
125	330	100	13	62,4	56,4	56	40	4	2	11,6	0,42

一般规格

重量:

33.4 g

包装:

125/13″ reel 56 mm tape

焊接/清洗

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. Other solvents

A9786-AL Planar Magnetics

for TI LM5041

规格

Transformer

Output Inductor

端子:

包装:

性能曲线

Inductance vs Current (A9787-A Planar Output Inductor)

Inductance vs Frequency (A9787-A Planar Output Inductor)

原理图

Planar Transformer Planar Output Inductor

物理特性

卷装规格

一般规格

焊接/清洗

相关产品系列

Magnetics

B0860-CL Planar Transformer

C1539-AL Planar Transformer

DA2025-AL Planar Transformer

HA3648-BL Planar Transformer

HA4000-AL Planar Transformer

JA4309 Planar Transformer

Magnetics for

B0853-AL SMT Planar Transformer

MA5519-AL Planar Transformer

NA5738-DL SMT Planar Transformer

NA5871-AL 800 W Planar Transformer

PA6605-AL Planar Transformer

PL140 Series

PL160 Series

PL300 Series

RA6992-BL SMT Planar Transformer

RA6998 Forward Mode Planar Transformer

RA6999-AL Forward Mode Transformer

RA7040-AL Forward Mode

YA9215-AL 50 W Resonant Transformer
