Magnetics for

Texas Instruments LM5030

Specially developed for use with the Texas Instruments LM5030 100V Push-Pull Current Mode PWM Controllers
Low profile, high efficiency planar transformer: 33, 35 and 60 Watt versions
Output choke inductor with auxiliary winding
Magnetically shielded input choke

立即购买:

零件号

查找我的元件

索取样品:

零件号

查找我的元件

典型应用

与Texas Instruments LM5030一起使用

零件号	输入电压	输出	功率	Fsw
A9784-BL_	36 V — 75 V	3.3 V , 10 A	33 W	250 kHz
A0152-AL_	36 V — 75 V	5 V , 7 A	35 W	250 kHz
B0310-AL_	36 V — 75 V	12 V , 5 A	60 W	250 kHz

规格

Electrical specifications at 25°C.

Planar Transformer

零件号 1 (Hover for schematics)	最小电感 (mH) 2	DCR max (mΩ) 3		最大漏电感 (µH)	匝数比	隔离电压 (Vrms)
零件号 1 (Hover for schematics)	最小电感 (mH) 2	Pri	Sec	最大漏电感 (µH)	Pri : Sec	隔离电压 (Vrms)
A9784-BL_	1.3	0.850	0.016	3.5	1 : 0.167	1500
A0152-AL_	1.3	0.850	0.018	2.5	1 : 0.25	1500
B0310-AL_	1.3	0.850	0.060	2.5	1 : 0.5	1500

Input Choke Inductor

零件号 4	电感 (µH) 5 (公差: ±20%)	DCR max (Ω) 6	SRF typ (MHz) 7	Isat (A) 9	Irms (A) 10
零件号 4	电感 (µH) 5 (公差: ±20%)	DCR max (Ω) 6	SRF typ (MHz) 7	Isat (A) 9	20°C rise	40°C rise
MSS6132-103ML_	10	0.085	39.0	1.3	1.9	2.5

Output Choke Inductor

零件号 4	功率 (W)	0A时的电感 (µH) 5 (公差: ±10%)	电感 (µH) 5 (公差: ±10%)	DCR max (Ω) 6		隔离电压 (V) 8	匝数比 main : aux	Isat (A) 9	Irms (A) 10
零件号 4	功率 (W)	0A时的电感 (µH) 5 (公差: ±10%)	电感 (µH) 5 (公差: ±10%)	Main	Aux	隔离电压 (V) 8	匝数比 main : aux	Isat (A) 9	Irms (A) 10
A9785-BL_	33	7.0	6.7 at 12 A	0.0066	2.0	1500	1 : 3.2	15.0	12.5
B0414-AL_	60	13.8	13.8 at 5 A	0.0098	0.68	1500	1 : 1.09	8.0	9.5
A0153-AL_	35	7.0	6.2 at 10 A	0.0066	1.3	1500	1 : 22	15.5	12.5

注释

When ordering, please specify packaging code: e.g. B0310-ALD
Inductance measured between pins 1 and 3 at 250 kHz, 0.1 Vrms, 0 Adc
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
When ordering, please specify packaging code: e.g. MSS6132-103MLC or B0414-ALD
Input Choke: Inductance measured at 100 kHz, 0.1 Vrms.
Output Choke: Inductance measured at 10.0 kHz, 0.1 Vrms.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using Agilent/HP 8753D network analyzer and Coilcraft SMD-D test fixture. Details
Isolation measured from pin 5 to pins 1, 2, 3, 4.
Input Choke: DC current at which the inductance drops 10% (typ) from its value without current. Details
Output Choke: DC current at which the inductance drops 12% (typ) from its value without current. Details
Input Choke: Current that causes the specified temperature rise from 25˚C ambient. Details
Output Choke: Current that causes a 40˚C temperature rise above 25˚C ambient. Details

端子:

RoHS-compliant. 260°C compatible.
Planar transformers: Matte tin over nickel over brass terminations
MSS6132: Gold over nickel over phos bronze terminations
Output choke inductors - Tin-silver over tin over nickel over phos bronze terminations

包装:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C

储存温度范围:

Component: −40°C to +85°C
Tape and reel packaging: −40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

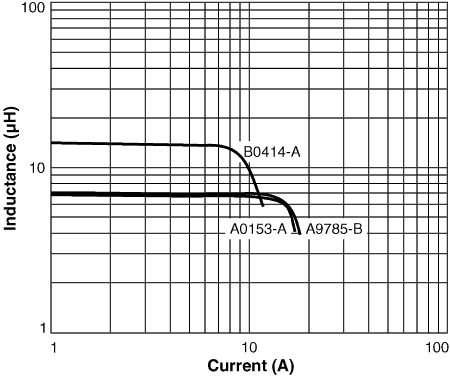

Inductance vs Current

Output choke inductors

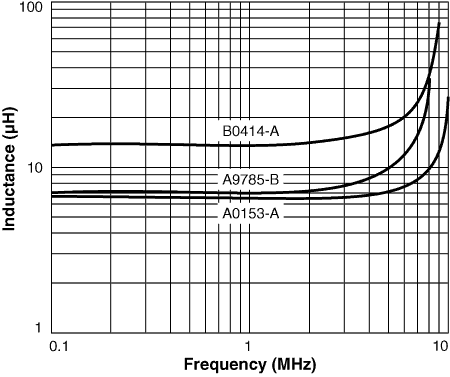

Inductance vs Frequency

Output choke inductors

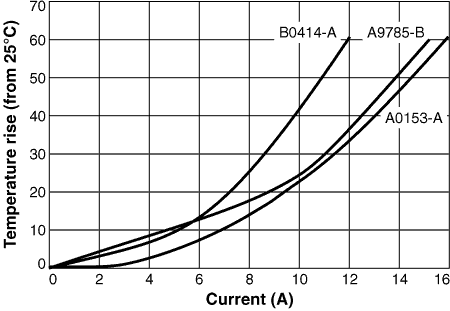

Temperature Rise vs Current

Output choke inductors

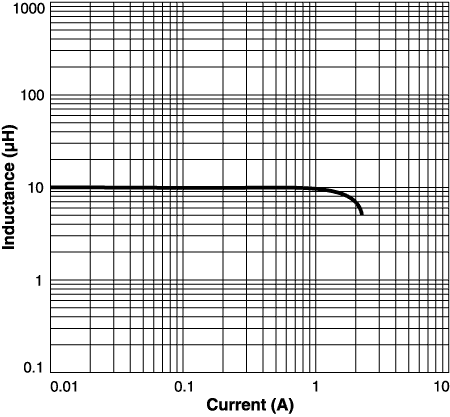

Inductance vs Current

MSS6132-103 input choke inductor

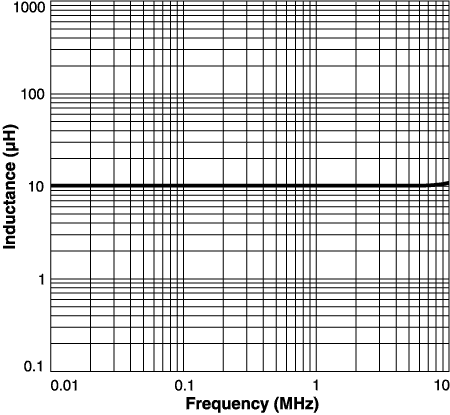

Inductance vs Frequency

MSS6132-103 input choke inductor

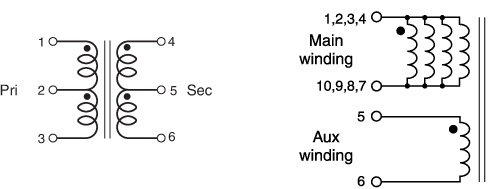

原理图

Planar Transformer Output Choke Inductor

物理特性

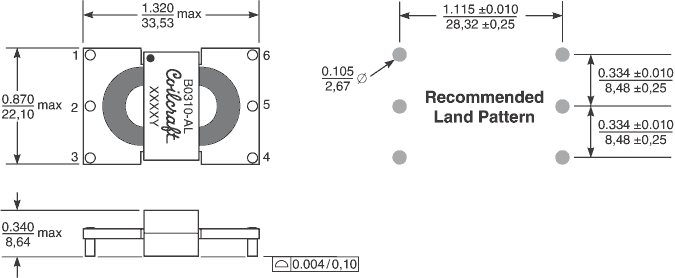

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
A9784, A0152, B0310	250	330	100	13	62,4	56,4	56	28	4	2	8,86	0,36

一般规格

重量:

9.5 – 10.9 g

包装:

250/13″ reel 56 mm tape

焊接

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
