“Unicoil” 5 mm

Tunable RF Inductors

Windings are precision molded into plastic for mechanical and electrical stability
Tuning is done by means of an aluminum core
Optional plated brass shield cans with solderable tabs provide integral shielding
165 series offers intermediate L values to the 164 and higher SRF ratings
Samples of all values are available in Coilcraft Designer's Kit M305
Tune with our handy 3-in-1 “TriTuner” tuning wrench
RoHS-compliant. Terminations: Leads – Tin-silver over copper
Shield can tabs – Tin-silver over nickel over brass

立即购买:

零件号

查找我的元件

计数	单价
1	$4.56
100	$3.88
250	$2.95
500	$2.40
1000	$1.91
2500	$1.35
5000	$1.12

对于大批量采购或非库存产品，点击这里请求报价。

Core

Standard

Without core

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
M305	38 (2 of each)	$60.00

规格

Electrical specifications 25°C.

Unshielded

零件号 1	颜色	匝数	电感 (nH) 2			测试频率 (MHz)	Q min at L nom 3	SRF min (MHz)
零件号 1	颜色	匝数	无铁芯 nom	min 4	max 5	测试频率 (MHz)	Q min at L nom 3	SRF min (MHz)
164-01A06L	Brown	1½	19	16	19	150	145	2000
164-02A06L	Red	2½	34	26	34	150	138	1260
164-03A06L	Orange	3½	55	38	55	150	130	960
164-04A06L	Yellow	4½	77	52	77	150	119	850
164-05A06L	Green	5½	101	65	99	150	108	770
164-06A06L	Blue	6½	128	83	126	100	107	730
164-07A06L	Violet	7½	156	97	150	100	106	640
164-08A06L	Gray	8½	183	112	178	100	100	570
164-09A06L	White	9½	216	131	190	100	100	540
164-10A06L	Black	10½	248	148	223	100	92	490
164-11A06L	Brown	11½	281	170	246	100	92	360
165-00A06L	Black	½	9.0	9.0	9.0	150	147	6000
165-01A06L	Brown	1½	18	15	18	150	145	2850
165-02A06L	Red	2½	32	25	32	150	143	1860
165-03A06L	Orange	3½	48	33	45	150	138	1410
165-04A06L	Yellow	4½	64	43	60	150	133	1130
165-05A06L	Green	5½	83	54	78	150	125	820
165-06A06L	Blue	6½	103	68	90	150	120	800
165-07A06L	Violet	7½	122	79	105	150	115	770

Shielded

零件号 1	颜色	匝数	电感 (nH) 2			测试频率 (MHz)	Q min at L nom 3	SRF min (MHz)
零件号 1	颜色	匝数	无铁芯 nom	min 4	max 5	测试频率 (MHz)	Q min at L nom 3	SRF min (MHz)
164-01A06SL	Brown	1½	16	14	16	150	124	2100
164-02A06SL	Red	2½	27	22	27	150	108	1300
164-03A06SL	Orange	3½	41	32	41	150	92	1100
164-04A06SL	Yellow	4½	56	43	56	150	86	940
164-05A06SL	Green	5½	71	53	71	150	80	980
164-06A06SL	Blue	6½	88	65	80	150	79	800
164-07A06SL	Violet	7½	105	76	101	100	75	750
164-08A06SL	Gray	8½	122	87	117	100	74	580
164-09A06SL	White	9½	141	100	134	100	71	550
164-10A06SL	Black	10½	160	113	150	100	69	490
164-11A06SL	Brown	11½	179	127	164	100	69	400
165-00A06SL	Black	½	9.0	9.0	9.0	150	138	6000
165-01A06SL	Brown	1½	16	14	16	150	124	2570
165-02A06SL	Red	2½	25	21	25	150	110	1670
165-03A06SL	Orange	3½	35	28	33	150	104	1230
165-04A06SL	Yellow	4½	46	35	41	150	97	1150
165-05A06SL	Green	5½	57	43	50	150	92	820
165-06A06SL	Blue	6½	68	52	59	150	86	800
165-07A06SL	Violet	7½	80	60	70	150	85	770

注释

To order fixed inductance parts without cores, eliminate the “A06”, e.g. 164-01L.
Inductance readings taken on Agilent/HP 4286A impedance analyzer with 16092A spring clip fixture.
Q measured on Agilent/HP 4286A with 16092A fixture, direct connected to Agilent/HP 4342A Q-meter and Meguro MQ-171 Q-meter with 0.5" bus bars.
L min measured with core centered in winding.
L max measured with core halfway out top of form.

端子:

Leads: RoHS compliant tin-silver over copper. Other terminations available at additional cost.
Shield can tabs: Tin-silver over nickel over brass

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C

储存温度范围:

Component: –40°C to +85°C
Packaging tubes: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

Q versus Frequency (Shielded)

164 Series - No core

Q versus Frequency (Shielded)

164 Series - Aluminum core

Q versus Frequency (Shielded)

165 Series - No core

Q versus Frequency (Shielded)

165 Series - Aluminum core

Q versus Frequency (Unshielded)

164 Series - No core

Q versus Frequency (Unshielded)

164 Series - Aluminum core

Q versus Frequency (Unshielded)

165 Series - No core

Q versus Frequency (Unshielded)

165 Series - Aluminum core

物理特性

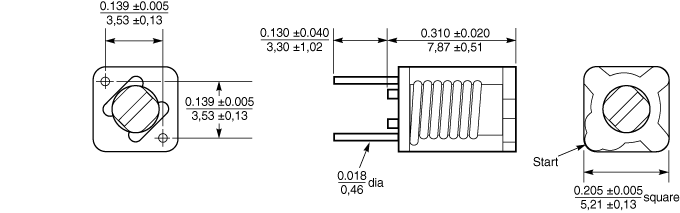

Unshielded Styles

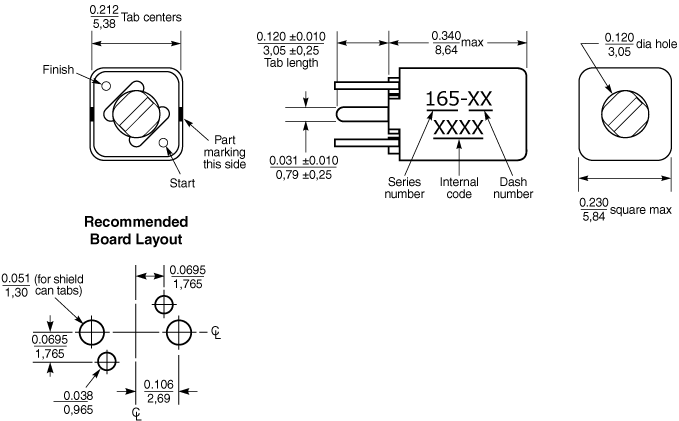

Shielded Styles

一般规格

核心材料:

Aluminum, 0.187″ (4.75 mm) long

重量:

164 series unshielded: 0.16 – 0.31 g; with shield can: 0.45 – 0.60 g; 165 series unshielded: 0.15 – 0.25 g; with shield can: 0.43 – 0.54 g

包装:

50 parts per tube

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Wave solder only. Recommended maximum board surface temperature of 168°C (334°F) for no more than three seconds. Pre-heating is recommended to minimize time over the solder nozzle.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
