1008AF (2520)

Ferrite Chip Inductors

Our 1008AF Series wirewound inductors feature ferrite core construction and heavy gauge wire for high current handling and broadband filtering. This series covers inductance values from 0.9 uH to 10 uH and comes in ±10% and ±5% tolerances on all values.

Inductance values from 0.9 µH to 10 µH
5% tolerance now standard
Higher current rating and lower DCR than our other 1008 series

Need parts for space, military or other critical applications?
See Coilcraft AR413RAM Series | See Coilcraft ML413RAM Series | See Coilcraft MS413RAM Series | See Coilcraft ST413RAM Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.29
200	$1.01
500	$0.76
1000	$0.53
2000	$0.41
4000	$0.31
10000	$0.27

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

K = 10%

J = 5%

Termination

R = Matte Sn over Ni over Ag-Pt-glass frit

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C414	14 (10 of each)	$45.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2	公差 (%) 3	Q typ @ 2.5 MHz	SRF min (MHz) 4	Isat (mA) 5	DCR max (Ω) 6	Irms (A) 7
零件号 1	电感 (µH) 2	公差 (%) 3	Q typ @ 2.5 MHz	SRF min (MHz) 4	Isat (mA) 5	DCR max (Ω) 6	Irms (A) 7
1008AF-901X_R_	0.90	5,10	25	415	1400	0.10	1.3
1008AF-112X_R_	1.1	5,10	24	376	1300	0.11	1.2
1008AF-132X_R_	1.3	5,10	37	198	1200	0.11	1.1
1008AF-152X_R_	1.5	5,10	22	135	1100	0.13	1.0
1008AF-192X_R_	1.9	5,10	29	126	1000	0.14	1.0
1008AF-222X_R_	2.2	5,10	21	106	950	0.16	0.95
1008AF-272X_R_	2.7	5,10	22	70.0	800	0.19	0.90
1008AF-332X_R_	3.3	5,10	21	59.0	750	0.21	0.80
1008AF-392X_R_	3.9	5,10	21	55.0	700	0.22	0.80
1008AF-472X_R_	4.7	5,10	27	48.0	700	0.44	0.65
1008AF-582X_R_	5.8	5,10	21	37.0	550	0.28	0.75
1008AF-682X_R_	6.8	5,10	28	33.0	500	0.32	0.70
1008AF-822X_R_	8.2	5,10	22	34.0	500	0.34	0.65
1008AF-103X_R_	10	5,10	24	22.0	450	0.46	0.55

注释

When ordering, please specify tolerance, termination and packaging codes: e.g. 1008AF-103XJRC
Inductance measured at 2.5 MHz using Coilcraft SMD-A fixture in an Agilent/HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
Tolerances in bold are stocked for immediate shipment.
SRF measured using an Agilent/HP 8753D network analyzer with a Coilcraft SMD-D fixture.
Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current.
DCR measured on a Cambridge Technology Micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

公差:

J = 5% K = 10% (Table above shows stock tolerances in bold.)

端子:

R = RoHS compliant. Matte Sn over Ni over Ag-Pt-glass frit terminations.

T = RoHS Sn/Ag/Cu (95.5/4.0/0.5) (Special order, added cost)
S = Not RoHS Sn/Pb (63/37) (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with Irms current

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise). Derating.

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

L vs Current

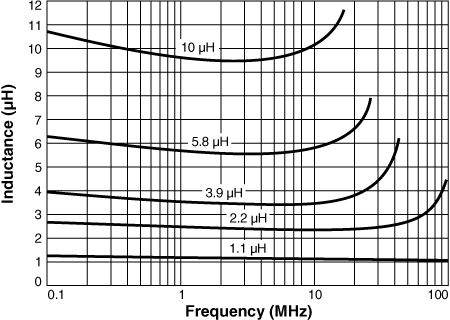

L vs Frequency

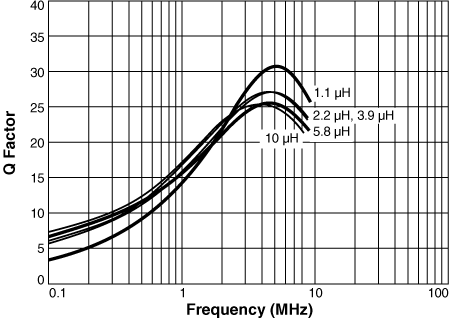

Q vs Frequency

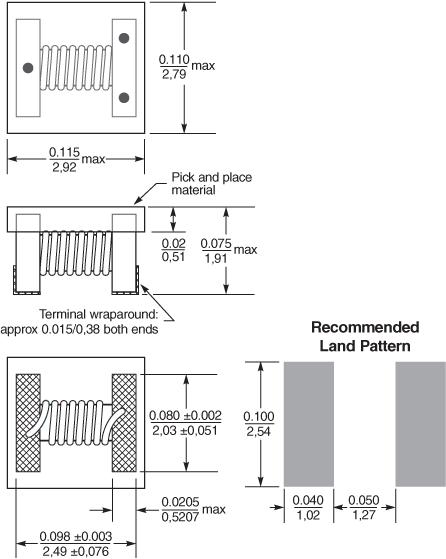

物理特性

Note: Height dimension is before optional solder application. For maximum height dimension including solder, add 0.006 in / 0,152 mm

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	2,0	0,3

*Special order

一般规格

核心材料:

Ferrite

重量:

28 – 33 mg

包装:

2000 per 7″reel; 7500 per 13″ reel Plastic tape: 8 mm wide, 0.3 mm thick, 4 mm pocket spacing, 2.0 mm pocket depth

Temperature coefficient of inductance:

+100 to +350 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
