0805LS (2012)

Ferrite Chip Inductors

Our 0805LS Series wirewound chip inductors have a ferrite-ceramic core construction that gives higher current handling and lower DCR in an 0805 chip size. Inductance values range from 78 nH to 27 uH. Tight tolerances of ±5% and ±2% are standard for all values in this series.

Ferrite construction for higher current carrying capacity
Lowest DCR in an 0805 form factor
Inductance values from 0.078 µH to 27 µH
AEC-Q200 Grade 3 (−40°C to +85°C)

Need parts for space, military or other critical applications?
See Coilcraft AR336RAB Series | See Coilcraft ST336RAB Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.27
200	$0.96
500	$0.73
1000	$0.50
2000	$0.38
4000	$0.28
10000	$0.14

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

J = 5%

G = 2%

Termination

R = Matte tin over nickel over silver-platinum-glass frit

E = Silver-palladium-platinum-glass frit

L = Silver-palladium-platinum-glass frit

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C354	19 (10 of each)	$45.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2	公差 (%) 3	Q min	SRF min (MHz) 4	DCR max (Ω) 5	Irms (A) 6	色码 7
零件号 1	电感 (µH) 2	公差 (%) 3	Q min	SRF min (MHz) 4	DCR max (Ω) 5	Irms (A) 6	色码 7
0805LS-78NX_R_	0.078 @ 7.9 MHz	2,5	19 @ 7.9 MHz	1440	0.042	2.0	Black
0805LS-111X_R_	0.11 @ 7.9 MHz	2,5	19 @ 7.9 MHz	1200	0.050	2.0	Brown
0805LS-471X_R_	0.47 @ 7.9 MHz	2,5	19 @ 7.9 MHz	500	0.31	0.72	Red
0805LS-681X_R_	0.68 @ 7.9 MHz	2,5	20 @ 7.9 MHz	400	0.46	0.59	Orange
0805LS-102X_R_	1.0 @ 7.9 MHz	2,5	20 @ 7.9 MHz	340	0.69	0.50	Yellow
0805LS-122X_R_	1.2 @ 7.9 MHz	2,5	15 @ 7.9 MHz	280	1.2	0.40	Brown
0805LS-152X_R_	1.5 @ 7.9 MHz	2,5	20 @ 7.9 MHz	275	1.0	0.49	Green
0805LS-182X_R_	1.8 @ 7.9 MHz	2,5	20 @ 7.9 MHz	246	1.2	0.41	Blue
0805LS-222X_R_	2.2 @ 7.9 MHz	2,5	20 @ 7.9 MHz	106	1.3	0.37	Brown
0805LS-272X_R_	2.7 @ 7.9 MHz	2,5	20 @ 7.9 MHz	105	1.5	0.35	Violet
0805LS-332X_R_	3.3 @ 7.9 MHz	2,5	20 @ 7.9 MHz	83.0	1.6	0.33	Gray
0805LS-392X_R_	3.9 @ 7.9 MHz	2,5	20 @ 7.9 MHz	52.0	1.7	0.30	White
0805LS-472X_R_	4.7 @ 7.9 MHz	2,5	20 @ 7.9 MHz	50.0	1.9	0.28	Black
0805LS-682X_R_	6.8 @ 7.9 MHz	2,5	20 @ 7.9 MHz	35.0	2.3	0.26	Brown
0805LS-822X_R_	8.2 @ 2.5 MHz	2,5	18 @ 2.5 MHz	27.0	2.6	0.25	Red
0805LS-103X_R_	10 @ 2.5 MHz	2,5	18 @ 2.5 MHz	21.0	3.5	0.20	Orange
0805LS-153X_R_	15 @ 2.5 MHz	2,5	18 @ 2.5 MHz	17.0	5.0	0.18	Yellow
0805LS-223X_R_	22 @ 2.5 MHz	2,5	18 @ 2.5 MHz	13.0	6.2	0.15	Green
0805LS-273X_R_	27 @ 2.5 MHz	2,5	15 @ 2.5 MHz	11.0	11.0	0.12	Blue

注释

When ordering, please specify tolerance, termination and packaging codes: e.g. 0805LS-273XGRC
Inductance measured using a Coilcraft SMD-A fixture in an Agilent/ HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
Tolerances in bold are stocked for immediate shipment.
SRF measured using an Agilent/HP 8753D network analyzer with a Coilcraft SMD-D test fixture.
DCR measured on a Cambridge Technology Micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes a 15°C temperature rise from 25°C ambient. Because of their open construction, these parts will not saturate. This information is for reference only and does not represent absolute maximum ratings.
Each part is marked with a single dot. The color dots are not unique identifiers and correspond to multiple inductance values. Details

公差:

G = 2%, J = 5%

端子:

R = RoHS compliant, matte tin over nickel over silver platinum-glass frit.
E = Halogen free component. RoHS compliant. Silver-palladium-platinum-glass frit terminations.
L = RoHS compliant, not halogen-free. Silver-palladium-platinum-glass frit.
T = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
S = non-RoHS tin-lead (63/37) (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with Irms current

储存温度范围:

Component: –40°C to +100°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+100°C (ambient + temp rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

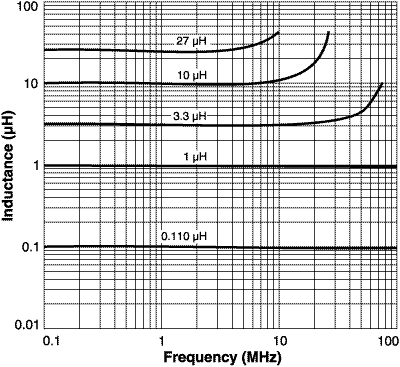

L vs Frequency

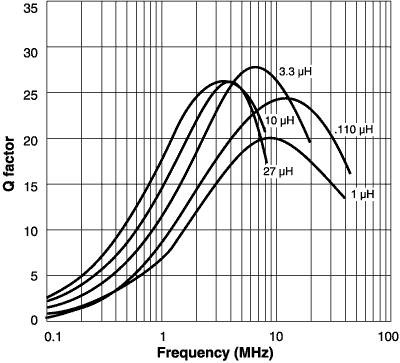

Q vs Frequency

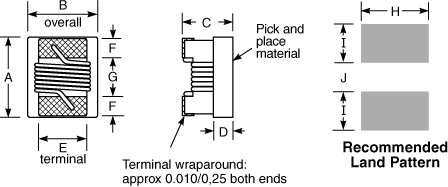

物理特性

A max	B max	C max	D ref	E	F	G	H	I	J
0.09	0.075	0.063	0.02	0.05	0.02	0.04	0.07	0.04	0.03	inches
2,29	1,91	1,60	0,51	1,27	0,51	1,02	1,78	1,02	0,76	mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm.

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (178 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	1,6	0,23

*Special order

一般规格

核心材料:

Ceramic/Ferrite

重量:

12.7– 13.9 mg

包装:

2000/7″reel; 7500/13″reel; Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.6 mm pocket depth

Temperature coefficient of inductance:

+100 to +250 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
