0402DF

Ferrite Chip Inductors

Our 0402DF Series of wirewound ferrite chip inductors have the industry's lowest DCR in an 0402 size – up to 30% lower than the closest competitor. This series was developed for cellular applications for use as either filter elements, as one-pole filters, or as RF chokes in the cellular bands. These are ideal for use in mobile and infrastructure equipment.

The Industry’s lowest DCR in an 0402 package – up to 30% lower than the closest competitor
Developed for use in cellular applications:
As a filter element in bandstop and low pass filters
As a one pole filter or RF choke in cellular bands
Ideal for use in mobile and infrastructure equipment.
Higher inductance values than other 0402 inductors – up to 3300 nH
Ferrite construction for high current handling
Can also be used for ground-to-ground isolation
AEC-Q200 Grade 1 (−40°C to +125°C)

Need parts for space, military or other critical applications?
See Coilcraft AR235RAR Series | See Coilcraft ST235RAR Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.37
200	$0.99
500	$0.66
1000	$0.47
2000	$0.34
4000	$0.27
10000	$0.19

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

J = 5%

Termination

R = Matte tin over nickel over silver-platinum-glass frit

Packaging

W = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C462	28 (20 of each)	$70.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2 (公差: ±5%)	典型阻抗 (Ω)		SRF typ (MHz) 3	DCR max (Ω) 4	Irms (mA) 5
零件号 1	电感 (nH) 2 (公差: ±5%)	900 MHz	1.7 GHz	SRF typ (MHz) 3	DCR max (Ω) 4	Irms (mA) 5
0402DF-200XJR_	20	90.0	150	2950	0.049	1400
0402DF-300XJR_	30	120	200	2600	0.055	1300
0402DF-330XJR_	33	135	225	2550	0.055	1300
0402DF-360XJR_	36	150	250	2400	0.055	1300
0402DF-560XJR_	56	250	480	2200	0.061	1200
0402DF-770XJR_	77	350	580	2050	0.072	1100
0402DF-900XJR_	90	400	600	2300	0.079	1000
0402DF-101XJR_	105	530	1000	1660	0.10	850
0402DF-121XJR_	120	515	900	2000	0.090	950
0402DF-141XJR_	140	650	1075	1450	0.14	750
0402DF-151XJR_	150	700	1170	1800	0.13	830
0402DF-181XJR_	180	850	1460	1680	0.17	730
0402DF-221XJR_	220	1100	2050	1560	0.24	600
0402DF-271XJR_	270	1300	2150	1480	0.27	590
0402DF-301XJR_	300	1725	2630	1400	0.34	490
0402DF-331XJR_	330	2100	2750	1340	0.44	430
0402DF-361XJR_	360	2150	3100	1200	0.48	420
0402DF-421XJR_	420	2175	3350	1100	0.51	400
0402DF-471XJR_	470	2550	3670	1070	0.67	340
0402DF-531XJR_	530	3950	3050	1000	0.72	330
0402DF-591XJR_	590	4770	3090	960	0.78	320
0402DF-701XJR_	700	5750	1830	600	1.3	230
0402DF-771XJR_	770	4900	1800	585	1.4	220
0402DF-821XJR_	820	6800	4600	850	1.5	230
0402DF-901XJR_	900	7130	4470	760	1.5	230
0402DF-102XJR_	1000	280	180	235	1.1	190
0402DF-222XJR_	2200	200	120	125	1.8	170
0402DF-332XJR_	3300	160	80.0	80.0	2.2	150

注释

When ordering, please specify termination and packaging codes: 0402DF-771XJRW.
Inductance measured at 7.9 MHz using a Coilcraft SMD-F test fixture and Coilcraft-provided correlation pieces with an Agilent/HP 4286 impedance analyzer
SRF measured using Agilent/HP 8753D network analyzer and Coilcraft SMD-D test fixture.
DCR measured on Cambridge Technology micro-ohmmeter and a Coilcraft CCF858 test fixture.
Current that causes a 15°C temperature rise from 25°C ambient. Because of their open construction, these parts will not saturate.

端子:

R = RoHS compliant matte tin over nickel over silver-platinum-glass frit.
Q = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
P = non-RoHS tin-lead (63/37) (Special order, added cost)

包装:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
Y = 7″ machine-ready reel. EIA-481 punched paper tape. Factory order only, not stocked (10000 parts per full reel).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+140°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

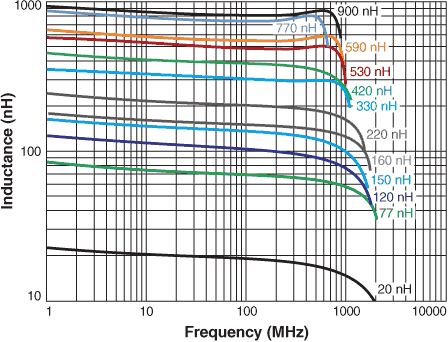

L vs Frequency

Z vs Frequency

物理特性

A max	B max	C max	D	E	F	G	H
0.044	0.026	0.026	0.018	0.008	0.014	0.025	0.026	inches
1,11	0,66	0,66	0,46	0,20	0,36	0,635	0,66	mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm.

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	T
2000	178	100	13	14,4	8,4	8	2	4	2	0,68
10000*	178	100	13	14,4	8,4	8	2	4	2	0,68

* Special order

一般规格

核心材料:

Ferrite

重量:

0.9 – 1.1 mg

包装:

2000 or 10000 per 7″ reel. Paper tape: 8 mm wide, 0.68 mm thick, 2 mm pocket spacing

Temperature coefficient of inductance:

+25 to +150 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
