026011F (0703)

Miniature RF Chokes

Our 026011F Series of miniature wirewound RF chokes are an optimized 0201 size at 0.7 × 0.3 × 0.55 mm and feature high impedance for RF isolation in cellular applications. This series offers the industry's highest inductance values in 0201 size – up to 560 nH. The ferrite construction assures high current handling and lowest possible DCR.

Optimized 0703 size – 0.7 × 0.3 × 0.55 mm high
High impedance for RF isolation in cellular applications
Higher inductance values than other 0201 inductors – up to 560 nH
Ferrite construction for high current handling

立即购买:

零件号

查找我的元件

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C474	7 (20 of each)	$45.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2 (公差: ±5%)	典型阻抗 (Ω)			SRF typ (GHz) 3	DCR max (Ω) 4	Irms (mA) 5
零件号 1	电感 (nH) 2 (公差: ±5%)	100 MHz	900 MHz	1.7 GHz	SRF typ (GHz) 3	DCR max (Ω) 4	Irms (mA) 5
026011F-270XJR_	27	16.6	135	260	3.9	0.13	480
026011F-720XJR_	72	42.1	380	750	2.6	0.46	210
026011F-101XJR_	100	59.2	470	900	2.3	0.57	200
026011F-151XJR_	150	91.5	850	1900	1.8	0.68	190
026011F-271XJR_	270	154	1500	4700	1.6	1.3	130
026011F-431XJR_	430	253	2700	8600	1.1	2.1	100
026011F-561XJR_	560	321	4500	7500	1.0	3.1	90

注释

When ordering, please specify packaging code: e.g. 026011F-561XJRY
Inductance measured at 7.9 MHz using a Coilcraft SMD-F test fixture with an Agilent/HP 4287A impedance analyzer.
SRF is measured on an Agilent/HP 8753ES (or equivalent) with a Coilcraft SMD-D test fixture.
DCR is measured on a Keithley 580 Micro-ohmmeter (or equivalent) with a Coilcraft CCF1192 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes a 15°C temperature rise from 85°C ambient. This information is for reference only and does not represent absolute maximum ratings. Because of their open construction, these parts will not saturate.

端子:

RoHS compliant, matte tin over nickel over silver platinum-glass frit

包装:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
Y = 7″ machine-ready reel. EIA-481 punched paper tape (10,000 parts per full reel).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with Irms current

储存温度范围:

Component: –40°C to +100°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+100°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

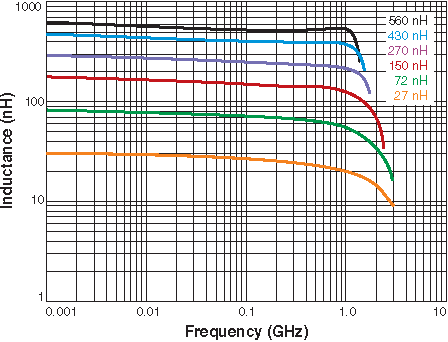

L vs Frequency

Z vs Frequency

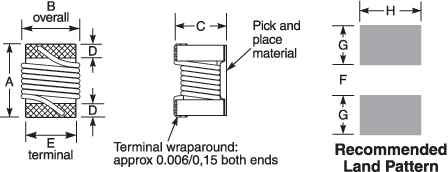

物理特性

A max	B max		C max	D	E	F	G	H
A max	026011F-270	All Others	C max	D	E	F	G	H
0.030	0.015	0.013	0.022	0.0110	0.005	0.010	0.016	0.014	inches
0,76	0,38	0,33	0,55	0,28	0,13	0,25	0,41	0,36	mm

卷装规格


Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)					Orientation
7" (178 mm)	7" (178 mm)	A	B	C	D	E	W	P	Po	P1	T
2000	10,000*	178	100	13	14,4	8,4	8	2	4	2	0,68

* Special order

一般规格

核心材料:

Ferrite

重量:

0.9 – 1.1 mg

包装:

2000 or 10,000 per 7″ reel. Paper tape: 8 mm wide, 0.68 mm thick, 2 mm pocket spacing

Temperature coefficient of inductance:

+25 to +150 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
