1812 (4532)

Ceramic Chip Inductors for DOCSIS 3.x

Our HA403x Series was designed for DOCSIS 3.x applications and has our highest Q factors in an 1812 footprint. It also features excellent current handling and very low DC resistance for lowest insertion loss.

Our highest Q factors in an 1812 form factor
Excellent current handling
Very low DCR
Inductance values from 39 nH to 390 nH

立即购买:

零件号

查找我的元件

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C458	6 (10 of each)	$45.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2 (公差: ± 2%)	Q typ @ 50.0 MHz 3	SRF typ (GHz) 4	DCR max (mΩ) 5	Irms (mA) 6
零件号 1	电感 (nH) 2 (公差: ± 2%)	Q typ @ 50.0 MHz 3	SRF typ (GHz) 4	DCR max (mΩ) 5	Irms (mA) 6
TA7849-AE_	39	49	2.5	120	1100
TA7850-AE_	47	55	1.9	110	1100
TA7851-AE_	56	55	1.9	126	920
TA7852-AE_	68	55	2.0	149	900
PA6691-AE_	80	61	1.3	140	900
PA6692-AE_	100	62	1.2	160	860
PA6693-AE_	120	67	0.99	160	860
HA4031-AL_	150	75	0.86	100	1150
HA4032-AL_	180	80	0.85	105	1150
HA4033-AL_	220	80	0.70	110	940
HA4034-AL_	270	85	0.73	120	940
HA4035-AL_	330	80	0.60	135	850
HA4036-AL_	390	80	0.60	150	850

注释

When ordering, please specify termination and packaging codes: e.g. HA4031-ALC
Inductance measured at 50 MHz, using a Coilcraft SMD-A fixture in an Agilent/HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
Q measured measured at 50 MHz, using an Agilent/HP 4291A with an Agilent/HP 16193 test fixture.
SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
DCR measured on a Cambridge Technology micro-ohmmeter and a Coilcraft CCF859 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes a 15°C temperature rise from 25°C ambient.

端子:

L = RoHS compliant silver-palladium-platinum-glass frit.
R = RoHS compliant matte tin over nickel over silver platinum-glass frit.
S = non-RoHS tin-lead (63/37). (Special order, added cost)
T = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
P = non-RoHS tin-lead (63/37) over matte tin over nickel over silver-platinum-glass frit. (Special order, added cost)
Q = RoHS tin-silver-copper (95.5/4/0.5) over matte tin over nickel over silver-platinum-glass frit. (Special order, added cost)

包装:

C = 7" machine-ready reel
EIA-481 embossed plastic tape (600 parts per full reel).
B = Less than full reel
In tape, but not machine-ready. To have a leader and trailer added ($25 charge), use code letter C instead.
D = 13" reel, machine-ready
EIA-481 embossed plastic tape. Factory order only, not stocked (2200 parts per full reel).

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+140°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

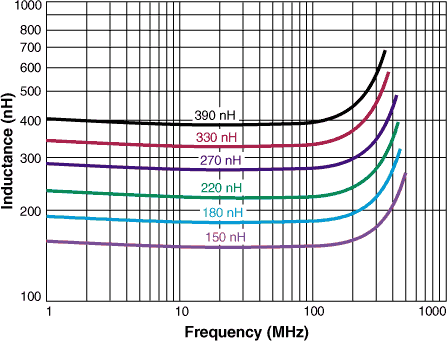

L vs Frequency

HA Series

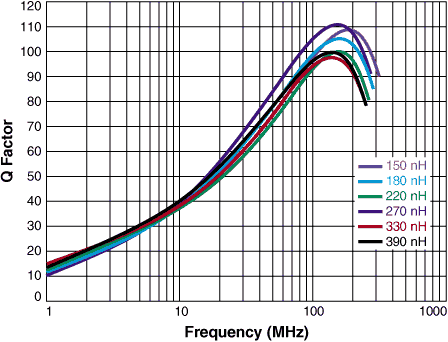

Q vs Frequency

HA Series

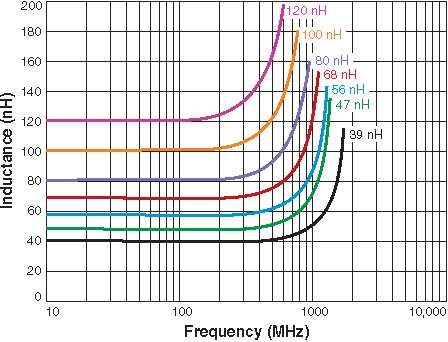

L vs Frequency

TA/PA Series

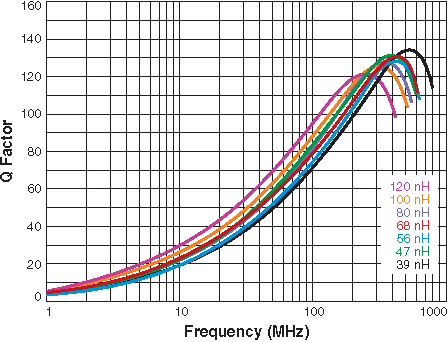

Q vs Frequency

TA/PA Series

物理特性

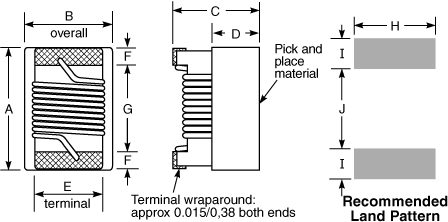

A max	B max	C max	D ref	E	F	G	H	I	J
0.195	0.150	0.135	0.070	0.100	0.025	0.128	0.120	0.045	0.118	inches
4,95	3,81	3,43	1,78	2,54	0,64	3,25	3,05	1,14	3,00	mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
600	2200*	178/330	60/100	13	18,4	12,4	12	8	4	2	3,7	0,3

* Special order

一般规格

核心材料:

Ceramic

重量:

109 – 128 mg

Temperature coefficient of inductance:

+25 to +125 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
