1008HT (2520)

Low Profile Chip Inductors

With a maximum height of only 0.045 inches, our 1008HT Series has the lowest profile of all our 1008-sized chip inductors. Available in a wide range of standard values, these inductors have exceptionally high Q vs non-wirewound inductors of the same size. Ceramic construction assures the highest possible self-resonant frequencies – up to 7.9 GHz.

Our lowest profile 1008 chip inductors – only 0.045" high!
Inductance values from 3.3 nH to 560 nH (tolerances as low as 1%)
Exceptionally high Q compared to non-wirewound inductors, especially at high frequencies
Ceramic construction for highest possible self resonance (up to 7900 MHz)
Excellent current carrying capacity for their size

Need parts for space, military or other critical applications?
See Coilcraft AR413RAF Series

立即购买:

零件号

查找我的元件

计数	单价
1	$0.84
200	$0.68
500	$0.51
1000	$0.35
2000	$0.24
4000	$0.20
10000	$0.15

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

J = 5%

Termination

R = Matte tin over nickel over silver platinum-glass frit

L = Silver-palladium-platinum-glass frit

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C322	26 (10 of each)	$55.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2	公差 (%) 3	Q min 4	SRF min (MHz) 5	DCR max (Ω) 6	Irms (mA) 7
零件号 1	电感 (nH) 2	公差 (%) 3	Q min 4	SRF min (MHz) 5	DCR max (Ω) 6	Irms (mA) 7
1008HT-3N3TJR_	3.3 @ 250 MHz	5	65 @ 1500 MHz	7900	0.025	1000
1008HT-6N8TJR_	6.8 @ 250 MHz	5	70 @ 1500 MHz	5500	0.050	1000
1008HT-7N2TJR_	7.2 @ 250 MHz	5	70 @ 1500 MHz	4800	0.050	1000
1008HT-12NTJR_	12 @ 250 MHz	5	55 @ 700 MHz	3800	0.065	1000
1008HT-15NTJR_	15 @ 250 MHz	5	55 @ 700 MHz	2800	0.080	1000
1008HT-18NTJR_	18 @ 250 MHz	5	55 @ 500 MHz	3000	0.090	1000
1008HT-22NTJR_	22 @ 250 MHz	5	55 @ 500 MHz	2600	0.11	950
1008HT-27NT_R_	27 @ 250 MHz	2,5	55 @ 500 MHz	2400	0.13	850
1008HT-33NT_R_	33 @ 200 MHz	2,5	55 @ 350 MHz	2000	0.14	760
1008HT-39NT_R_	39 @ 200 MHz	2,5	55 @ 350 MHz	1900	0.17	700
1008HT-47NT_R_	47 @ 200 MHz	1,2,5	55 @ 350 MHz	1500	0.18	660
1008HT-56NT_R_	56 @ 150 MHz	1,2,5	50 @ 300 MHz	1500	0.18	620
1008HT-68NT_R_	68 @ 150 MHz	1,2,5	50 @ 300 MHz	1500	0.23	550
1008HT-82NT_R_	82 @ 150 MHz	1,2,5	40 @ 250 MHz	1300	0.35	500
1008HT-R10T_R_	100 @ 100 MHz	1,2,5	40 @ 250 MHz	1200	0.64	420
1008HT-R12T_R_	120 @ 100 MHz	1,2,5	40 @ 200 MHz	1090	0.55	350
1008HT-R14T_R_	140 @ 100 MHz	1,2,5	40 @ 200 MHz	1100	0.70	320
1008HT-R15T_R_	150 @ 100 MHz	1,2,5	40 @ 200 MHz	960	0.75	300
1008HT-R18T_R_	180 @ 50.0 MHz	1,2,5	40 @ 200 MHz	920	1.0	250
1008HT-R22T_R_	220 @ 50.0 MHz	1,2,5	34 @ 100 MHz	750	1.2	250
1008HT-R24T_R_	240 @ 50.0 MHz	2,5	32 @ 100 MHz	800	1.2	250
1008HT-R27T_R_	270 @ 50.0 MHz	2,5	32 @ 100 MHz	770	1.3	250
1008HT-R33T_R_	330 @ 25.0 MHz	2,5	32 @ 100 MHz	635	1.4	250
1008HT-R39T_R_	390 @ 25.0 MHz	2,5	32 @ 100 MHz	555	1.5	250
1008HT-R47T_R_	470 @ 25.0 MHz	2,5	32 @ 100 MHz	530	1.7	240
1008HT-R56T_R_	560 @ 25.0 MHz	2,5	32 @ 100 MHz	485	1.9	240

注释

When ordering, please specify tolerance, termination and packaging codes: e.g. 1008HT-R56TGRC
Inductance measured using a Coilcraft SMD-A fixture in an Agilent/ HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
Tolerances in bold are stocked for immediate shipment.
Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test fixture.
SRF measured using an Agilent/HP 8720D network analyzer and a Coilcraft SMD-D test fixture.
DCR measured on a Cambridge Technology micro-ohmmeter and a Coilcraft CCF840 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

公差:

F = 1%, G = 2%, J = 5% (Table above shows stock tolerances in bold.)

端子:

R = RoHS compliant matte tin over nickel over silver platinum-glass frit.
L = RoHS compliant silver-palladium-platinum-glass frit.
T = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
S = non-RoHS tin-lead (63/37) (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+140°C (ambient + temp rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

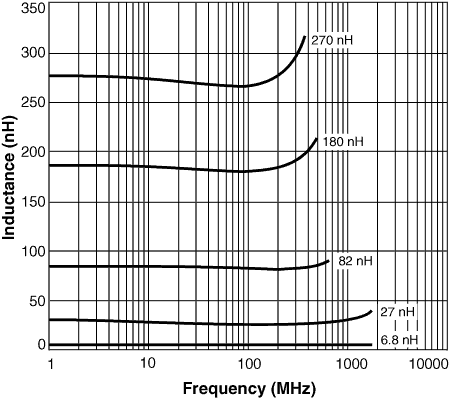

L vs Frequency

Q vs Frequency

物理特性

A max	B max	C max	D ref	E	F	G	H	I	J
0.105	0.095	0.045	0.045	0.080	0.020	0.060	0.100	0.040	0.050	inches
2,67	2,41	1,14	1,14	2,03	0,51	1,52	2,54	1,02	1,27	mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	1,14	0,23

*Special order

一般规格

核心材料:

Ceramic

重量:

16.0– 17.6 mg

包装:

2000/7″ reel; 7500/13″ reel Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.14 mm pocket depth

Temperature coefficient of inductance:

+25 to +125 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
