0805HP (2012)

High Q Ceramic Chip Inductors

Our 0805HP Series of wirewound ceramic chip inductors have the highest Q factors in an 0805 size. Excellent current handling, high SRF, low DCR, and tight tolerances ( ±2% for most) complete the features of this high-performance series.

Our highest Q factors in an 0805 form factor
Excellent current handling and low DCR ratings
Inductance values from 2.6 nH to 820 nH
Tight tolerances: ±2% for most values
Wirewound construction for highest possible self resonance – up to 9.5 GHz

Need parts for space, military or other critical applications?
See Coilcraft ST336RAG Series

立即购买:

零件号

查找我的元件

计数	单价
1	$0.87
200	$0.70
500	$0.53
1000	$0.38
2000	$0.25
4000	$0.21

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

J = 5%

Termination

R = Matte tin over nickel over silver-platinum-glass frit

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C477	32 (10 of each)	$65.00
C477-2	32 (10 of each)	$85.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2	公差 (%) 3	Q typ 4	SRF typ (MHz) 5	DCR max (mΩ) 6	Irms (A) 7
零件号 1	电感 (nH) 2	公差 (%) 3	Q typ 4	SRF typ (MHz) 5	DCR max (mΩ) 6	Irms (A) 7
0805HP-2N6XJR_	2.6 @ 250 MHz	5	100 @ 1500 MHz	9500	14.5	2.0
0805HP-6N2XJR_	6.2 @ 250 MHz	5	104 @ 1000 MHz	7200	27.2	1.5
0805HP-6N8XJR_	6.8 @ 250 MHz	5	90 @ 1000 MHz	6000	66.0	1.3
0805HP-11NX_R_	11 @ 250 MHz	2,5	93 @ 500 MHz	4750	39.0	1.6
0805HP-12NX_R_	12 @ 250 MHz	2,5	91 @ 500 MHz	4425	39.0	1.4
0805HP-13NX_R_	13 @ 250 MHz	2,5	91 @ 500 MHz	4100	39.0	1.4
0805HP-15NX_R_	15 @ 250 MHz	2,5	90 @ 500 MHz	3100	66.0	1.4
0805HP-18NX_R_	18 @ 250 MHz	2,5	95 @ 500 MHz	3650	50.0	1.2
0805HP-27NX_R_	27 @ 250 MHz	2,5	120 @ 500 MHz	2830	82.8	1.2
0805HP-33NX_R_	33 @ 250 MHz	2,5	100 @ 500 MHz	2410	87.0	1.1
0805HP-47NX_R_	47 @ 200 MHz	2,5	105 @ 500 MHz	2170	93.0	1.0
0805HP-50NX_R_	50 @ 200 MHz	2,5	115 @ 500 MHz	2010	123.6	1.0
0805HP-56NX_R_	56 @ 200 MHz	2,5	100 @ 500 MHz	1815	122.0	0.95
0805HP-62NX_R_	62 @ 200 MHz	2,5	114 @ 500 MHz	1820	144.0	0.90
0805HP-75NX_R_	75 @ 200 MHz	2,5	114 @ 500 MHz	1685	162.0	0.85
0805HP-82NX_R_	82 @ 150 MHz	2,5	103 @ 500 MHz	1525	168.0	0.82
0805HP-101X_R_	100 @ 150 MHz	2,5	100 @ 500 MHz	1400	220.0	0.72
0805HP-121X_R_	120 @ 150 MHz	2,5	80 @ 250 MHz	1265	293.0	0.62
0805HP-151X_R_	150 @ 100 MHz	2,5	80 @ 250 MHz	1150	288.0	0.60
0805HP-181X_R_	180 @ 100 MHz	2,5	77 @ 250 MHz	1025	374.0	0.54
0805HP-201X_R_	200 @ 100 MHz	2,5	75 @ 250 MHz	950	399.6	0.54
0805HP-221X_R_	220 @ 100 MHz	2,5	75 @ 250 MHz	930	426.0	0.50
0805HP-251X_R_	250 @ 100 MHz	2,5	74 @ 250 MHz	873	564.0	0.49
0805HP-271X_R_	270 @ 100 MHz	2,5	75 @ 100 MHz	830	754.3	0.42
0805HP-291X_R_	290 @ 100 MHz	2,5	54 @ 100 MHz	840	804.0	0.40
0805HP-311X_R_	310 @ 100 MHz	2,5	54 @ 100 MHz	820	824.4	0.40
0805HP-331X_R_	330 @ 100 MHz	2,5	54 @ 100 MHz	770	1003.6	0.36
0805HP-391X_R_	390 @ 100 MHz	2,5	52 @ 100 MHz	700	1109.9	0.33
0805HP-471X_R_	470 @ 50.0 MHz	2,5	52 @ 100 MHz	640	1559.4	0.28
0805HP-561X_R_	560 @ 25.0 MHz	2,5	46 @ 100 MHz	550	2067.4	0.24
0805HP-681X_R_	680 @ 25.0 MHz	2,5	46 @ 100 MHz	535	2355.4	0.21
0805HP-821X_R_	820 @ 25.0 MHz	2,5	50 @ 100 MHz	485	3945.5	0.18

注释

When ordering, please specify tolerance, termination and packaging codes: e.g. 0805HP-821XJRC
Inductance measured using a Coilcraft SMD-A fixture in an Agilent/ HP 4286A impedance analyzer with Coilcraft-provided correlation pieces.
Tolerances in bold are stocked for immediate shipment.
Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test fixture
SRF measured using an Agilent/HP 8720D network analyzer and a Coilcraft SMD -D test fixture.
DCR measured on a Cambridge Technology micro-ohmmeter and a Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

公差:

G = 2%, J = 5% (Table above shows stock tolerances in bold.)

端子:

R = RoHS matte tin over nickel over silver-glass frit.
Q = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
P = non-RoHS tin-lead over tin (63/37) (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+140°C (ambient + temp rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

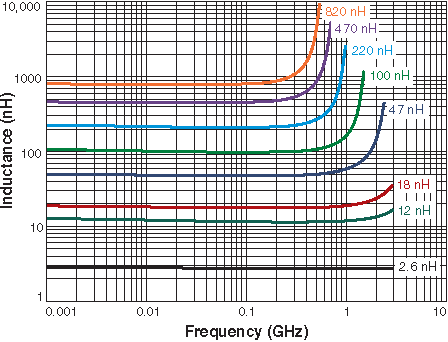

L vs Frequency

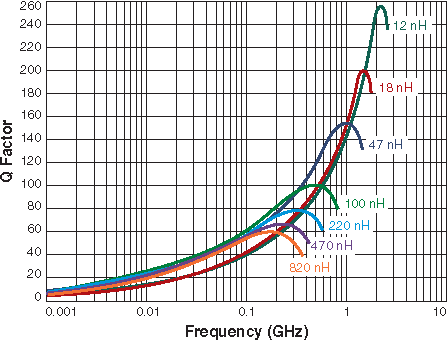

Q vs Frequency

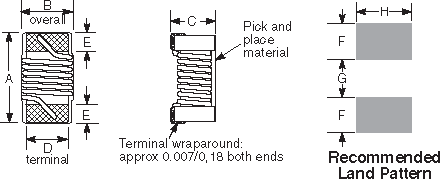

物理特性

A max	B max	C max	D ref	E	F	G	H
0.087	0.068	0.061	0.061	0.012	0.040	0.044	0.078	inches
2,21	1,73	1,55	1,55	0,30	1,02	1,12	1,98	mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm.

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	1,65	0,23

* Special order

一般规格

核心材料:

Ceramic

重量:

9.5 – 12.5 mg

包装:

2000/7″ reel; 7500/13″ reel. Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.65 mm pocket depth

Temperature coefficient of inductance:

+100 to +250 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
