0603HP (1608)

High Q Ceramic Chip Inductors

Great News! More choices!

See the more cost effective 0603DC for significantly higher Q (up to 40% higher) across the inductance range.

0603HP Series ceramic chip inductors provide a wide range of inductance values with exceptionally high Q – up to 154 at 1.7 GHz. They also feature SRF values as high as 16 GHz and excellent current handling – up to 2100 mA.

Exceptionally high Q – up to 154 at 1.7 GHz!
Inductance values from 1.8 to 390 nH
SRF values as high as 16 GHz
Excellent current handling capability – up to 2100 mA

Need parts for space, military or other critical applications?
See Coilcraft AR312RAG Series | See Coilcraft ST312RAG Series

立即购买:

零件号

查找我的元件

计数	单价
1	$0.99
200	$0.80
500	$0.60
1000	$0.41
2000	$0.28
4000	$0.23
10000	$0.19

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

J = 5%

G = 2%

Termination

R = Matte tin over nickel over silver platinum-glass frit

E = Silver-palladium-platinum-glass frit

L = Not halogen-free. Silver-palladium-platinum-glass frit

Packaging

W = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C406	54 (10 of each)	$140.00
C406-2	54 (10 of each)	$180.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2	公差 (%) 3	900 MHz		1.7 GHz		Q typ @ 250 MHz 4	SRF typ (GHz) 5	DCR max (Ω) 6	Irms (mA) 7	色码 8
零件号 1	电感 (nH) 2	公差 (%) 3	L typ	Q typ 4	L typ	Q typ 4	Q typ @ 250 MHz 4	SRF typ (GHz) 5	DCR max (Ω) 6	Irms (mA) 7	色码 8
0603HP-1N8XJR_	1.8 @ 250 MHz	5	1.77	40	1.77	65	23	16.0	0.033	2100	Black
0603HP-2N2XJR_	2.2 @ 250 MHz	5	2.14	25	2.12	35	13	15.0	0.18	900	Yellow
0603HP-3N3X_R_	3.3 @ 250 MHz	2,3,5	3.28	67	3.32	104	32	9.6	0.024	1900	Blue
0603HP-3N6X_R_	3.6 @ 250 MHz	2,3,5	3.59	70	3.62	116	40	9.7	0.031	1900	Red
0603HP-3N9X_R_	3.9 @ 250 MHz	2,3,5	3.88	68	3.95	108	35	7.5	0.039	1600	Brown
0603HP-4N3X_R_	4.3 @ 250 MHz	2,3,5	4.29	58	4.31	91	30	7.5	0.080	1300	Orange
0603HP-4N7X_R_	4.7 @ 250 MHz	2,3,5	4.65	48	4.71	75	26	7.9	0.10	1100	Violet
0603HP-5N1X_R_	5.1 @ 250 MHz	2,3,5	5.08	84	5.12	140	40	8.9	0.036	1700	Green
0603HP-5N6X_R_	5.6 @ 250 MHz	2,3,5	5.6	87	5.73	145	48	6.6	0.036	1700	Black
0603HP-6N0X_R_	6.0 @ 250 MHz	2,3,5	5.92	94	6.12	154	49	6.0	0.036	1700	White
0603HP-6N8X_R_	6.8 @ 250 MHz	2,3,5	6.83	88	7.05	143	42	5.8	0.042	1400	Red
0603HP-7N2X_R_	7.2 @ 250 MHz	2,3,5	7.25	96	7.38	139	48	5.4	0.052	1400	Green
0603HP-7N5X_R_	7.5 @ 250 MHz	2,3,5	7.55	81	7.85	112	41	5.3	0.080	1300	Brown
0603HP-8N2X_R_	8.2 @ 250 MHz	2,3,5	8.21	96	8.39	148	46	5.9	0.054	1400	Orange
0603HP-8N7X_R_	8.7 @ 250 MHz	2,3,5	8.73	97	9.0	149	46	5.5	0.054	1400	Yellow
0603HP-9N1X_R_	9.1 @ 250 MHz	2,3,5	9.18	76	9.64	109	40	5.1	0.037	1400	Black
0603HP-9N5X_R_	9.5 @ 250 MHz	2,3,5	9.56	98	9.99	149	49	4.9	0.053	1400	Blue
0603HP-10NX_R_	10 @ 250 MHz	2,3,5	10.16	90	10.64	142	49	4.3	0.048	1400	Orange
0603HP-11NX_R_	11 @ 250 MHz	2,3,5	11.06	78	11.82	108	41	4.1	0.058	1400	Gray
0603HP-12NX_R_	12 @ 250 MHz	2,3,5	12.26	69	13.2	91	37	4.1	0.088	1100	Yellow
0603HP-15NX_R_	15 @ 250 MHz	2,3,5	15.41	83	17.2	124	48	3.6	0.078	1200	Green
0603HP-16NX_R_	16 @ 250 MHz	2,3,5	16.37	77	18.7	116	45	3.5	0.085	1100	White
0603HP-18NX_R_	18 @ 250 MHz	2,3,5	18.56	76	20.9	100	41	3.3	0.066	1200	Blue
0603HP-22NX_R_	22 @ 250 MHz	2,3,5	22.7	77	25.9	88	44	3.2	0.14	850	Violet
0603HP-23NX_R_	23 @ 250 MHz	2,3,5	24	69	29.53	80	40	3.0	0.18	850	Orange
0603HP-24NX_R_	24 @ 250 MHz	2,3,5	24.9	77	28.9	91	42	3.0	0.074	1100	Black
0603HP-27NX_R_	27 @ 250 MHz	2,3,5	28.4	74	34	84	44	2.8	0.15	780	Gray
0603HP-30NX_R_	30 @ 250 MHz	2,3,5	31.5	82	37.9	82	49	2.8	0.13	920	Brown
0603HP-33NX_R_	33 @ 250 MHz	2,3,5	34.9	76	42.9	80	45	2.7	0.17	680	White
0603HP-36NX_R_	36 @ 250 MHz	2,3,5	38.5	69	50	64	44	2.5	0.23	720	Red
0603HP-39NX_R_	39 @ 250 MHz	2,3,5	41.5	78	51.9	74	48	2.5	0.19	680	Black
0603HP-43NX_R_	43 @ 250 MHz	2,3,5	45.7	83	58.1	76	45	2.5	0.17	810	Orange
0603HP-47NX_R_	47 @ 200 MHz	2,3,5	50.6	77	66.9	72	47	2.3	0.24	680	Brown
0603HP-51NX_R_	51 @ 200 MHz	2,3,5	54.6	73	71.3	62	49	2.3	0.28	660	Blue
0603HP-56NX_R_	56 @ 200 MHz	2,3,5	60.3	74	79.9	56	50	2.2	0.30	610	Red
0603HP-68NX_R_	68 @ 200 MHz	2,3,5	75.5	73	113.3	49	46	2.0	0.33	600	Orange
0603HP-72NX_R_	72 @ 150 MHz	2,3,5	80.8	69	-	-	46	1.9	0.42	550	Yellow
0603HP-75NX_R_	75 @ 150 MHz	2,3,5	84.6	71	-	-	46	1.9	0.52	500	Violet
0603HP-82NX_R_	82 @ 150 MHz	2,3,5	94	62	-	-	45	1.8	0.46	510	Green
0603HP-91NX_R_	91 @ 150 MHz	2,3,5	103	64	-	-	45	1.7	0.58	440	White
0603HP-R10X_R_	100 @ 150 MHz	2,3,5	114	69	-	-	49	1.7	0.54	470	Blue
0603HP-R11X_R_	110 @ 150 MHz	2,3,5	126.2	63	-	-	47	1.6	0.58	440	Violet
0603HP-R12X_R_	120 @ 150 MHz	2,3,5	142.4	61	-	-	47	1.6	0.72	420	Gray
0603HP-R15X_R_	150 @ 150 MHz	2,3,5	188.8	57	-	-	47	1.4	0.82	390	White
0603HP-R18X_R_	180 @ 100 MHz	2,3,5	232.2	50	-	-	48	1.3	1.5	310	Black
0603HP-R20X_R_	200 @ 100 MHz	2,3,5	265	47	-	-	47	1.3	2.0	280	Green
0603HP-R21X_R_	210 @ 100 MHz	2,3,5	288	45	-	-	48	1.2	2.0	280	Gray
0603HP-R22X_R_	220 @ 100 MHz	2,3,5	315	41	-	-	47	1.1	2.0	280	Brown
0603HP-R25X_R_	250 @ 100 MHz	2,3,5	-	-	-	-	45	1.1	3.0	240	Violet
0603HP-R27X_R_	270 @ 100 MHz	2,3,5	-	-	-	-	46	1.1	2.3	260	Red
0603HP-R30X_R_	300 @ 100 MHz	2,3,5	-	-	-	-	47	0.99	2.8	220	Green
0603HP-R33X_R_	330 @ 100 MHz	2,3,5	-	-	-	-	46	0.93	3.6	180	Blue
0603HP-R36X_R_	360 @ 100 MHz	2,3,5	-	-	-	-	47	0.93	4.0	170	Gray
0603HP-R39X_R_	390 @ 100 MHz	2,3,5	-	-	-	-	47	0.88	4.0	170	Yellow

注释

When ordering, please specify tolerance, termination and packaging codes: e.g. 0603HP-R39XGRW
Inductance tested at listed frequency using an Agilent/HP 4286A impedance analyzer with a Coilcraft SMD-A fixture and Coilcraft-provided correlation pieces.
Tolerances in bold are stocked for immediate shipment.
Q measured using an Agilent/HP 16197 test fixture in an Agilent/HP 4291 impedance analyzer.
SRF measured using an Agilent/HP 8722ES network analyzer and a Coilcraft SMD-D test fixture.
DCR measured on a micro-ohmmeter and a Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
Each part is marked with a single dot. The color dots are not unique identifiers and correspond to multiple inductance values. Details.

公差:

G = 2%, H = 3%, J = 5% (Table above shows stock tolerances in bold.)

端子:

R = RoHS compliant, matte tin over nickel over silver platinum-glass frit.
E = Halogen free component. RoHS compliant. Silver-palladium-platinum-glass frit terminations.
L = RoHS compliant, not halogen-free. Silver-palladium-platinum-glass frit.
T = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
S = non-RoHS tin-lead (63/37) (Special order, added cost)

包装:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
Y = 13″ machine-ready reel. EIA-481 punched paper tape. Factory order only, not stocked (10000 parts per full reel).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+140°C (ambient + temp rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

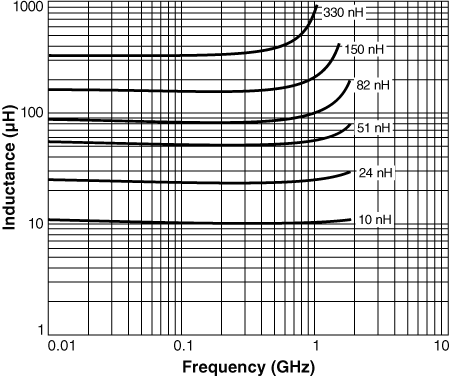

L vs Frequency

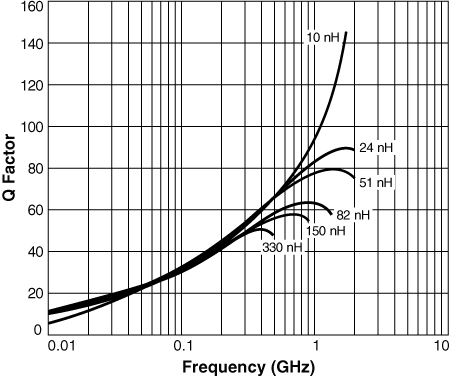

Q vs Frequency

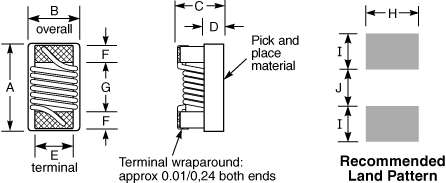

物理特性

A max	B (min – max)	C max	D	E	F	G	H	I	J
0.069	0.034 – 0.043	0.037	0.015	0.029	0.013	0.038	0.040	0.027	0.028	inches
1,75	0,86 – 1,09	0,94	0,38	0,74	0,33	0,96	1,02	0,69	0,71	mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm.

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)					Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	T
2000	10000*	178/330	60/100	13	14,4	8,4	8	4	4	2	1,0

* Special order

一般规格

核心材料:

Ceramic

重量:

2.0 – 3.2 mg

包装:

2000/7″ reel; 10000/13" reel. Paper tape: 8 mm wide, 1 mm thick, 4 mm pocket spacing

Temperature coefficient of inductance:

+25 to +125 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
