0603HL (1608)

High Inductance Ceramic Chip Inductors

Coilcraft's 0603HL Series ceramic chip inductors have the highest inductance values in this size - up to 3.3 µH. Wirewound ceramic construction means high Q and high peak current handling. Their tight ± 5% inductance tolerance results in minimal variation.

Highest inductance values in 0603 size: from 330 nH to 3.3 µH
High Q wirewound construction
±5% inductance tolerance

Need parts for space, military or other critical applications?
See Coilcraft AR312RAP Series | See Coilcraft ST312RAP Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.19
200	$0.96
500	$0.72
1000	$0.48
2000	$0.34
4000	$0.27
10000	$0.22

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

J = 5%

Termination

R = Matte tin over nickel over silver-platinum-glass frit

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C449	14 (10 of each)	$45.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ± 5%)	Q typ @ 25.0 MHz 3	SRF typ (MHz) 4	DCR max (Ω) 5	Irms (mA) 6	色码 7
零件号 1	电感 (µH) 2 (公差: ± 5%)	Q typ @ 25.0 MHz 3	SRF typ (MHz) 4	DCR max (Ω) 5	Irms (mA) 6	色码 7
0603HL-331XJR_	0.33	13	420	0.97	330	Violet
0603HL-391XJR_	0.39	13	400	1.1	330	Gray
0603HL-471XJR_	0.47	12	200	1.2	300	White
0603HL-511XJR_	0.51	12	340	1.2	300	Black
0603HL-561XJR_	0.56	12	330	1.4	300	Brown
0603HL-681XJR_	0.68	12	310	1.8	260	Red
0603HL-821XJR_	0.82	14	290	2.5	190	Orange
0603HL-102XJR_	1.0	14	250	2.8	190	Yellow
0603HL-122XJR_	1.2	14	230	3.2	180	Green
0603HL-152XJR_	1.5	15	190	4.1	150	Blue
0603HL-182XJR_	1.8	16	180	5.3	140	Violet
0603HL-222XJR_	2.2	16	165	5.9	130	Gray
0603HL-272XJR_	2.7	16	150	7.0	120	White
0603HL-332XJR_	3.3	18	135	9.1	110	Black

注释

When ordering, please specify termination and packaging code: 0603HL-332XJRC
Inductance measured at 0.1 Vrms, using a Coilcraft SMD-A fixture in Agilent/HP 4287A impedance analyzer or equivalent with Coilcraft provided correlation pieces.
Q measured using a Coilcraft SMD-A fixture in Agilent/HP 4287A impedance analyzer or equivalent.
SRF measured using Agilent/HP 8753D network analyzer with Coilcraft SMD-D test fixture
DCR measured on Cambridge Technology Micro-ohmmeter or equivalent.
Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
Each part is marked with a single dot. The color dots are not unique identifiers and correspond to multiple inductance values. Details.

端子:

R = RoHS compliant matte tin over nickel over silver-platinum-glass frit.
Q = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
P = non-RoHS tin-lead (63/37) (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +140°C.
Tape & reel packaging: –40°C to +80°C

最高元件温度:

+140°C (ambient + temp rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

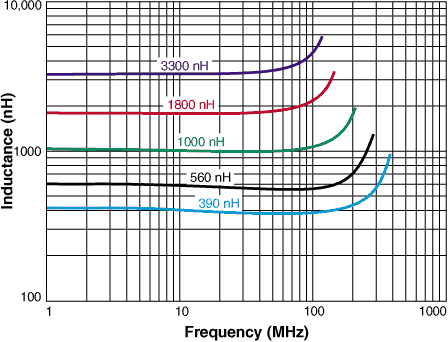

L vs Frequency

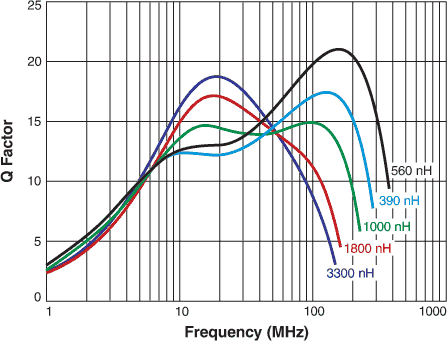

Q vs Frequency

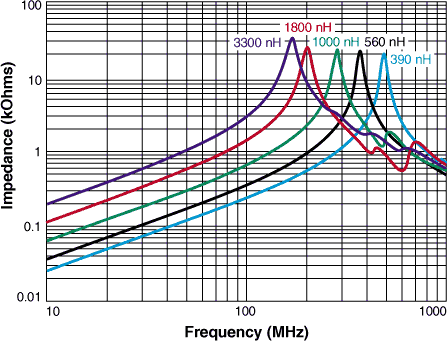

Z vs Frequency

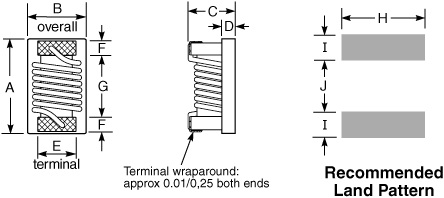

物理特性

A max	B max	C max	D	E	F	G	H	I	J
0.071	0.047	0.037	0.010	0.030	0.011	0.038	0.040	0.025	0.025	inches
1,80	1,19	0,94	0,25	0,76	0,28	0,97	1,02	0,64	0,64	mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm.

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	178	100	13	14,4	8,4	8	4	4	2	1,0	0,23

一般规格

核心材料:

Ceramic

重量:

3.2 – 4.4 mg

包装:

2000 per 7″ reel. Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.0 mm pocket depth

Temperature coefficient of inductance:

+50 to +150 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
