0603HC (1608)

High Current Ceramic Chip Inductors

Our 0603HC Series wirewound ceramic chip inductors were created to provide high current ratings – up to 2.4 Amps. Their open-core construction means they can handle transient currents up to 50% higher. They also have higher Q factors than our 0603CS Series at low inductance values.

High current ratings – up to 2.4 Amps!
Can handle transient currents up to 50% higher
Inductance values from 1.6 to 47 nH
Higher Q factors than our 0603CS parts at low inductance values
Very high self-resonant frequencies – up to 12,500 MHz
Defense Supply Center CID A-A-59408

Need parts for space, military or other critical applications?
See Coilcraft ST312RAJ Series

立即购买:

零件号

查找我的元件

计数	单价
1	$0.84
200	$0.68
500	$0.51
1000	$0.35
2000	$0.24
4000	$0.20
10000	$0.15

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

J = 5%

Termination

R = Matte tin over nickel over silver platinum-glass frit

E = Silver-palladium-platinum-glass frit

L = Not halogen-free. Silver-palladium-platinum-glass frit

Packaging

W = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C339	13 (10 of each)	$40.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2	公差 (%) 3	900 MHz		1.7 GHz		Q min @ 250 MHz 4	SRF min (GHz) 5	DCR max (Ω) 6	Irms (A) 7	色码 8
零件号 1	电感 (nH) 2	公差 (%) 3	L typ	Q typ 4	L typ	Q typ 4	Q min @ 250 MHz 4	SRF min (GHz) 5	DCR max (Ω) 6	Irms (A) 7	色码 8
0603HC-1N6XJR_	1.6	5	1.67	49	1.65	63	24	12.5	0.030	2.4	Black
0603HC-3N6XJR_	3.6	5	3.65	70	3.75	90	24	5.9	0.048	2.3	Brown
0603HC-3N9XJR_	3.9	5	3.74	70	3.9	90	25	5.9	0.054	2.2	Red
0603HC-6N8XJR_	6.8	5	6.72	70	7.1	75	35	5.8	0.054	2.1	Orange
0603HC-7N5XJR_	7.5	5	7.33	70	7.9	68	38	3.7	0.059	2.1	Yellow
0603HC-10NX_R_	10	2,5	9.7	73	10.5	57	38	3.7	0.071	2.0	Green
0603HC-12NX_R_	12	2,5	12.3	68	14.5	41	38	3.0	0.075	2.0	Blue
0603HC-15NX_R_	15	2,5	15.5	65	17.6	40	38	2.8	0.080	1.9	Violet
0603HC-18NX_R_	18	2,5	19.5	62	25	40	40	2.8	0.099	1.9	Gray
0603HC-22NX_R_	22	2,5	24	61	31.5	26	42	2.4	0.099	1.8	White
0603HC-24NX_R_	24	2,5	25.8	55	35	21	42	2.4	0.11	1.8	Black
0603HC-33NXJR_	33	5	34.3	50	-	-	47	1.9	0.18	0.95	Brown
0603HC-47NXJR_	47	5	49.5	45	-	-	40	1.5	0.20	0.85	Red

注释

When ordering, specify tolerance, termination and packaging codes: 0603HC-47NXJRW
Inductance measured at 250 MHz using Coilcraft SMD-A fixture in Agilent/HP 4286 impedance analyzer with Coilcraft-provided correlation pieces
Tolerances in bold are stocked for immediate shipment.
Q measured at 250 MHz using Agilent/HP 4291A with Agilent/ HP 16193 test fixture.
SRF measured using Agilent/HP 8720D network analyzer and Coilcraft SMD-D test fixture.
DCR measured on micro-ohmmeter and Coilcraft CCF858 test fixture.
Current that causes a 20°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
Each part is marked with a single dot. The color dots are not unique identifiers and correspond to multiple inductance values. Details.

公差:

G = 2% J = 5%

端子:

R = RoHS compliant, matte tin over nickel over silver platinum-glass frit.
E = Halogen free component. RoHS compliant. Silver-palladium-platinum-glass frit terminations.
L = RoHS compliant, not halogen-free. Silver-palladium-platinum-glass frit.
T = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
S = non-RoHS tin-lead (63/37) (Special order, added cost)

包装:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
Y = 13″ machine-ready reel. EIA-481 punched paper tape. Factory order only, not stocked (10000 parts per full reel).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +145°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+145°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

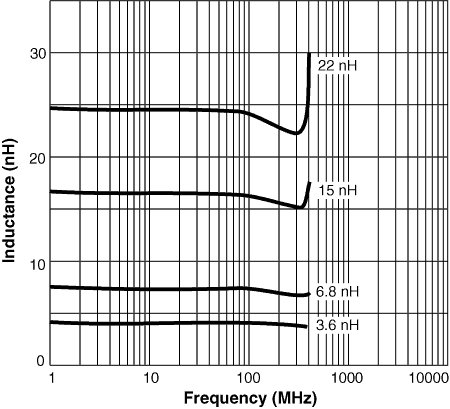

L vs Frequency

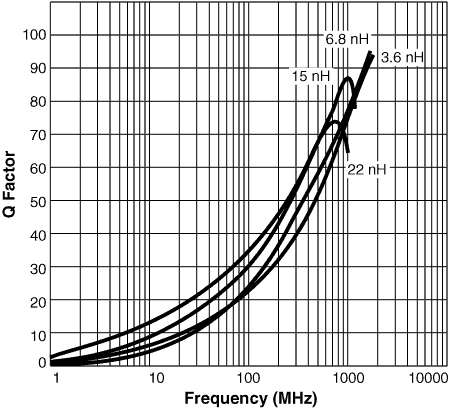

Q vs Frequency

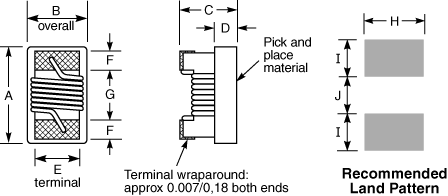

物理特性

A max	B max	C max	D ref	E	F	G	H	I	J
0.071	0.044	0.040	0.015	0.030	0.013	0.034	0.040	0.025	0.025	inches
1,80	1,12	1,02	0,38	0,76	0,33	0,86	1,02	0,64	0,64	mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm.

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	10000*	178/330	60/100	13	14,4	8,4	8	4	4	2	NA	1,0

* Special order

一般规格

核心材料:

Ceramic

重量:

3.3 – 3.7 mg

包装:

2000/7" reel; 10000/13" reel. Paper tape: 8 mm wide, 1.0 mm thick, 4 mm pocket spacing

Temperature coefficient of inductance:

+25 to +125 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
