0603DC (1608)

Ceramic Chip Inductors

符合RoHS 无卤素 AEC-Q flag
Our 0603DC Series achieves the industry’s highest Q factors in 0603 size for super low loss in high-frequency circuits. They also feature wirewound construction for extremely high self resonance – up to 11.4 GHz – and achieve DCR as low as 29 mΩ, significantly lower than other inductors this size.
  • 45 inductance values from 2.7 to 470 nH
  • High self-resonant frequencies – as high as 11.4 GHz
  • AEC-Q200 Grade 1 (−40°C to +125°C)
  • Exceptionally high Q – up to 177 at 2.4 GHz!

Need parts for space, military or other critical applications?
See Coilcraft CP312RAQ Series
立即购买:
计数 单价
1 $0.71
200 $0.57
500 $0.43
1000 $0.29
2000 $0.20
4000 $0.15

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C487 44 (10 of each) $100.00
C487-2 44 (10 of each) $120.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (nH) 2 公差 (%) 3 900 MHz 1.7 GHz 2.4 GHz SRF typ (GHz) 5 DCR max (Ω) 6 Irms (mA)
Q typ 4 Q typ 4 Q typ 4 at 25°C 7 at 85°C 8 at 125°C 9
0603DC-1N6X_RW 1.6 @ 250 MHz 5 - - - 14.9 0.026 3670 1300 1100
0603DC-2N7X_RW 2.7 @ 250 MHz 3,5 80 117 148 11.4 0.029 3340 2100 1700
0603DC-3N3X_RW 3.3 @ 250 MHz 2,3,5 94 125 140 9.3 0.042 2770 1700 1400
0603DC-3N9X_RW 3.9 @ 250 MHz 2,3,5 105 144 177 11.25 0.040 2800 2100 1390
0603DC-4N3X_RW 4.3 @ 250 MHz 2,3,5 100 138 167 10.6 0.040 2800 2100 1390
0603DC-5N1X_RW 5.1 @ 250 MHz 2,3,5 88 126 152 7.5 0.046 2650 2100 1350
0603DC-5N6X_RW 5.6 @ 250 MHz 2,3,5 90 129 187 6.3 0.046 2650 2100 1350
0603DC-6N2X_RW 6.2 @ 250 MHz 2,3,5 84 110 125 6.6 0.048 2580 2100 1330
0603DC-6N8X_RW 6.8 @ 250 MHz 2,3,5 100 131 143 5.1 0.048 2580 2100 1330
0603DC-7N5X_RW 7.5 @ 250 MHz 2,3,5 88 126 160 5.2 0.053 2450 2100 1250
0603DC-8N2X_RW 8.2 @ 250 MHz 2,3,5 93 130 162 6.25 0.053 2450 2100 1250
0603DC-9N1X_RW 9.1 @ 250 MHz 2,3,5 97 117 112 4.5 0.060 2260 2040 1160
0603DC-10NX_RW 10 @ 250 MHz 2,3,5 92 107 98 4.1 0.060 2260 2040 1160
0603DC-11NX_RW 11 @ 250 MHz 2,3,5 94 132 157 4.25 0.065 2170 1960 1110
0603DC-12NX_RW 12 @ 250 MHz 2,3,5 94 122 145 3.9 0.065 2170 1960 1110
0603DC-15NX_RW 15 @ 250 MHz 2,3,5 87 92 91 3.5 0.074 2040 1840 1050
0603DC-16NX_RW 16 @ 250 MHz 2,3,5 82 77 64 3.4 0.074 2040 1840 1050
0603DC-18NX_RW 18 @ 250 MHz 2,3,5 80 72 50 2.95 0.078 2000 1800 1000
0603DC-20NX_RW 20 @ 250 MHz 2,3,5 80 70 55 3.7 0.084 1920 1730 980
0603DC-22NX_RW 22 @ 250 MHz 2,3,5 88 84 56 2.7 0.095 1750 1590 900
0603DC-27NX_RW 27 @ 250 MHz 2,3,5 82 67 40 2.5 0.116 1630 1450 830
0603DC-30NX_RW 30 @ 250 MHz 2,3,5 77 69 41 3.0 0.103 1730 1560 900
0603DC-33NX_RW 33 @ 250 MHz 2,3,5 74 53 - 2.25 0.124 1550 1380 760
0603DC-36NX_RW 36 @ 250 MHz 2,3,5 79 67 - 2.35 0.134 1490 1320 740
0603DC-39NX_RW 39 @ 250 MHz 2,3,5 73 56 - 2.15 0.163 1350 1200 680
0603DC-43NX_RW 43 @ 250 MHz 2,3,5 82 74 - 2.1 0.176 1300 1150 620
0603DC-47NX_RW 47 @ 200 MHz 2,3,5 73 50 - 2.0 0.200 1200 1080 590
0603DC-51NX_RW 51 @ 200 MHz 2,3,5 77 57 - 1.95 0.216 1170 1020 570
0603DC-56NX_RW 56 @ 200 MHz 2,3,5 72 48 - 1.85 0.260 1030 920 490
0603DC-62NX_RW 62 @ 200 MHz 2,3,5 73 50 - 2.0 0.312 970 850 460
0603DC-68NX_RW 68 @ 200 MHz 2,3,5 63 - - 1.65 0.372 890 790 420
0603DC-75NX_RW 75 @ 150 MHz 2,3,5 62 - - 1.6 0.396 860 760 400
0603DC-82NX_RW 82 @ 150 MHz 2,3,5 66 - - 1.55 0.424 830 740 390
0603DC-91NX_RW 91 @ 150 MHz 2,3,5 64 - - 1.45 0.576 710 630 330
0603DC-R10X_RW 100 @ 150 MHz 2,3,5 62 - - 1.35 0.707 625 555 290
0603DC-R11X_RW 110 @ 150 MHz 2,3,5 55 - - 1.25 0.725 620 550 270
0603DC-R12X_RW 120 @ 150 MHz 2,3,5 52 - - 1.2 0.765 600 520 260
0603DC-R13X_RW 130 @ 150 MHz 2,3,5 50 - - 1.15 0.804 590 510 250
0603DC-R15X_RW 150 @ 150 MHz 2,3,5 47 - - 1.1 1.050 520 450 220
0603DC-R18X_RW 180 @ 100 MHz 2,3,5 44 - - 1.0 1.390 440 390 190
0603DC-R22X_RW 220 @ 100 MHz 2,3,5 - - - 0.9 1.690 390 340 160
0603DC-R27X_RW 270 @ 100 MHz 2,3,5 - - - 0.85 2.060 360 300 140
0603DC-R30X_RW 300 @ 100 MHz 2,3,5 - - - 0.75 2.660 320 270 120
0603DC-R33X_RW 330 @ 100 MHz 2,3,5 - - - 0.7 2.930 300 250 110
0603DC-R39X_RW 390 @ 100 MHz 2,3,5 - - - 0.65 3.920 260 220 90
0603DC-R47X_RW 470 @ 100 MHz 2,3,5 - - - 0.6 5.400 220 170 70
注释
  1. When ordering, please specify tolerance code: e.g. 0603DC-R47XJRW.
  2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP E4982A impedance analyzer with Coilcraft-provided correlation pieces.
  3. Tolerances in bold are stocked for immediate shipment.
  4. Q measured using an Agilent/HP 4991A with an Agilent/HP 16197 test fixture.
  5. SRF measured using an Agilent/HP 5071C/8722ES network analyzer and a Coilcraft SMD-D/CCF 1052 test fixture. Details
  6. DCR measured on a micro-ohmmeter and a Coilcraft CCF1010/A test fixture. For other operating temperatures, use this DCR at Temperature calculator.
  7. Irms: current that causes a 40°C temperature rise at 25°C. This information is for reference only and does not represent absolute maximum ratings.
  8. Irms: maximum current that can be applied at 85°C. This information is for reference only and does not represent absolute maximum ratings.
  9. Irms: maximum current that can be applied at 125°C ambient. This information is for reference only and does not represent absolute maximum ratings.

公差:

  • G = 2%, H = 3%, J = 5%

端子:

  • RoHS Compliant. 260°C compatible. Matte tin over nickel over silver-glass frit terminations.

包装:

  • W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • Q = 13″ machine-ready reel. EIA-481 punched paper tape. Factory order only, not stocked (5000 parts per full reel).
  • Y = 13″ machine-ready reel. EIA-481 punched paper tape. Factory order only, not stocked (10000 parts per full reel).
环境
环境:
符合RoHS , 无卤素
环境温度范围:
−40°C to +125°C with Irms current
储存温度范围:
Component: −40°C to +140°C
Tape and reel packaging: −40°C to +80°C
最高元件温度:
+140°C (Ambient + temperature rise)
故障率(FIT)/平均故障间隔时间(MTBF):

性能曲线

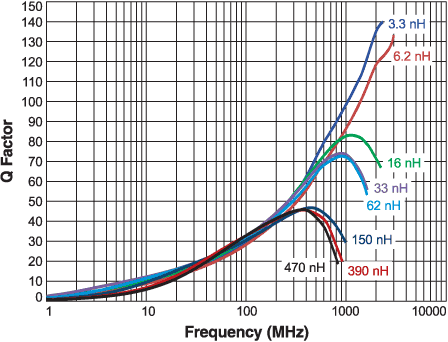

Q versus Frequency

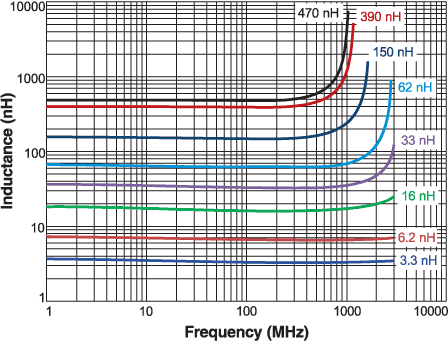

L versus Frequency

物理特性

A max B max C max D E F G H
0.067 0.039 0.035 0.028 0.013 0.033 0.016 0.051 inches
1,70 0,99 0,89 0,71 0,33 0,85 0,40 1,29 mm

卷装规格


Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_i.gif
2000 5000 / 10000* 178/330 100 13 14,4 8,4 8 4 4 2 N/A 0,95
* Special order

一般规格

核心材料:
Ceramic
重量:
3 – 4 mg
包装:
2000/7" reel; ; 5000/10000/13″ reel Paper tape: 8 mm wide, 0.95 mm thick, 4 mm pocket spacing
Temperature coefficient of inductance:
+25 to +125 ppm/°C

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
