0403HQ (1008)

High Q Ceramic Chip Inductors

Our 0403HQ Series ceramic chip inductors were designed for very high Q applications in a small size. They feature excellent current handling – up to 2.2 Amps and provide inductance values not available in other series of similar size.

Very high Q - up to 96 at 1.7 GHz!
11 inductance values from 1.9 to 18 nH
Excellent current handling - up to 2.2 Arms
Provides intermediate inductance values not available in other series
AEC-Q200 Grade 1 (−40°C to +125°C)

立即购买:

零件号

查找我的元件

计数	单价
1	$1.20
200	$0.96
500	$0.86
1000	$0.75
2000	$0.56
4000	$0.38
10000	$0.26

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

J = 5%

Termination

E = Silver-palladium-platinum-glass frit

L = Not halogen-free. Silver-palladium-platinum-glass frit

Packaging

W = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C371	11 (20 of each)	$40.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2 (公差: ± 5%)	900 MHz		1.7 GHz		Q min @ 500 MHz 3	SRF typ (GHz) 4	DCR max (Ω) 5	Irms (A) 6
零件号 1	电感 (nH) 2 (公差: ± 5%)	L typ	Q typ 3	L typ	Q typ 3	Q min @ 500 MHz 3	SRF typ (GHz) 4	DCR max (Ω) 5	Irms (A) 6
0403HQ-1N9XJE_	1.9	1.9	62	1.9	94	40	11.84	0.012	2.2
0403HQ-2N1XJE_	2.1	2.1	56	2.1	88	35	12.40	0.019	1.8
0403HQ-3N4XJE_	3.4	3.4	66	3.5	96	40	8.97	0.016	1.9
0403HQ-3N7XJE_	3.7	3.7	64	3.8	95	40	8.65	0.018	1.8
0403HQ-5N5XJE_	5.5	5.5	62	5.7	93	40	8.60	0.022	1.5
0403HQ-6N6XJE_	6.6	6.6	60	6.9	92	40	7.30	0.046	1.1
0403HQ-8N2XJE_	8.2	8.2	63	8.5	92	40	6.73	0.040	1.2
0403HQ-9N0XJE_	9.0	9.1	66	9.5	90	40	6.85	0.055	1.0
0403HQ-12NXJE_	12	12.1	60	12.7	90	40	5.82	0.065	0.80
0403HQ-15NXJE_	15	15.2	60	16	90	35	5.82	0.188	0.50
0403HQ-18NXJE_	18	18.2	62	19.6	93	35	5.15	0.185	0.50

注释

When ordering, please specify termination and packaging codes: e.g. 0403HQ-18NXJEW
Inductance measured at 500 MHz using a Coilcraft SMD-F fixture in an Agilent/HP 4286 impedance analyzer with Coilcraft-provided correlation pieces.
Q measured at 500 MHz using an Agilent/HP 4291A with an Agilent/HP 16193 test fixture.
SRF measured using an Agilent/HP 8722ES network analyzer and a test fixture with a 0.017" air gap. Details
DCR measured at 25°C on a micro-ohmmeter and a Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Irms: Current that causes a 30°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

端子:

E = Halogen free component. RoHS compliant. Silver-palladium-platinum-glass frit terminations.
L = RoHS compliant, not halogen-free. Silver-palladium-platinum-glass frit.
T = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
S = non-RoHS tin-lead (63/37) (Special order, added cost)

包装:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

−40°C to +125°C with Irms current.

储存温度范围:

Component: −40°C to +155°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+155°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

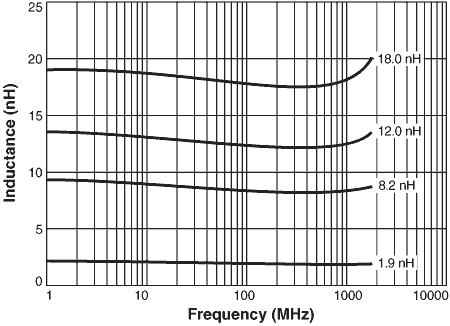

L vs Frequency

Q vs Frequency

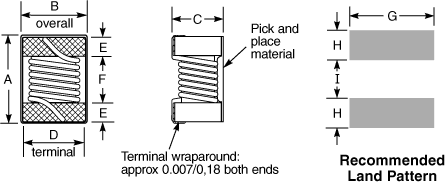

物理特性

A max	B max	C max	D ref	E	F	G	H	I
0.047	0.034	0.028	0.030	0.009	0.022	0.040	0.014	0.018	inches
1,19	0,86	0,71	0,76	0,23	0,56	1,02	0,36	0,46	mm

Height dimension (C) is before optional solder application. For maximum height dimension including solder, add 0.006 in / 0,152 mm.

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	178	100	13	14,4	8,4	8	2	4	2	NA	1,0

一般规格

核心材料:

Ceramic

重量:

1.29 - 1.60 mg

包装:

2000 per 7″ reel; 7500 per 13″ reel; Paper tape: 8 mm wide, 1.0 mm thick, 2 mm pocket spacing,

Temperature coefficient of inductance:

+25 to +125 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
