Close up of 0402PA
3D Model Datasheet SPICE模型 SPICE S-Param

0402PA (1005)

High Current Ceramic Chip Inductors

符合RoHS 无卤素
Our 0402PA Series offers excellent current handling – up to 1860 mA – making them ideal for power amplifiers in wireless applications. Very low DCR and very high self-resonant frequencies round out the features for this series.
  • Designed for power amplifier applications
  • Exceptionally low DCR
  • Excellent current handling – up to 1860 mA
  • Very high self-resonant frequencies – up to 15.2 GHz

立即购买:
查找我的元件
计数 单价
1 $1.19
200 $0.86
500 $0.58
1000 $0.41
2000 $0.30
4000 $0.24
10000 $0.19

对于大批量采购或非库存产品，点击这里请求报价。

. 现货，可今天发货.
索取样品:
查找我的元件
设计套件:
套件 电感值 价格
C373 7 (20 of each) $40.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (nH) 2 公差 (%) 3 900 MHz 1.7 GHz SRF min (GHz) 5 DCR max (Ω) 6 Irms (mA) 7
L typ Q typ 4 L typ Q typ 4
0402PA-0N8XJR_ 0.78 5 0.79 35 0.76 55 15.2 0.018 1860
0402PA-1N9X_R_ 1.9 2,5 1.83 50 1.81 73 12.5 0.022 1700
0402PA-3N4X_R_ 3.4 2,5 3.36 51 3.33 93 7.2 0.030 1500
0402PA-3N5X_R_ 3.5 2,5 3.51 58 3.55 82 8.8 0.035 1400
0402PA-5N8X_R_ 5.8 2,5 5.76 56 5.7 83 5.5 0.045 1300
0402PA-6N2X_R_ 6.2 2,5 6.17 57 6.28 81 5.0 0.055 1150
0402PA-8N2X_R_ 8.2 2,5 8.15 58 8.19 82 4.7 0.060 1100
注释
  1. When ordering, specify tolerance, termination and packaging codes: 0402PA-8N2XJRW
  2. Inductance measured at 250 MHz using a Coilcraft SMD-F test fixture and Coilcraft-provided correlation pieces with an Agilent/HP 4286 impedance analyzer.
  3. G = 2%, J = 5%
  4. Q measured using an Agilent/HP 4291A with an Agilent/HP 16193 test fixture.
  5. For SRF > 6 GHz, measured using an Agilent/HP 8722ES network analyzer and a Coilcraft SMD-D test fixture. For SRF < 6 GHz, measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
  6. 6. DCR measured on a micro-ohmmeter
  7. Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

端子:

  • R = RoHS compliant. Matte Sn over Ni over Ag-Pt-glass frit terminations.
  • T = RoHS Sn/Ag/Cu (95.5/4.0/0.5) (Special order, added cost)
  • S = Not RoHS Sn/Pb (63/37) (Special order, added cost)

包装:

  • W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • Y = 7″ machine-ready reel. EIA-481 punched paper tape. Factory order only, not stocked (10000 parts per full reel).
  • U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.
环境
环境:
符合RoHS , 无卤素
环境温度范围:
–40°C to +125°C with Irms current
储存温度范围:
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+140°C (ambient + temp rise).
故障率（FIT）/平均故障间隔时间（MTBF）:
See FIT/MTBF Calculations

性能曲线

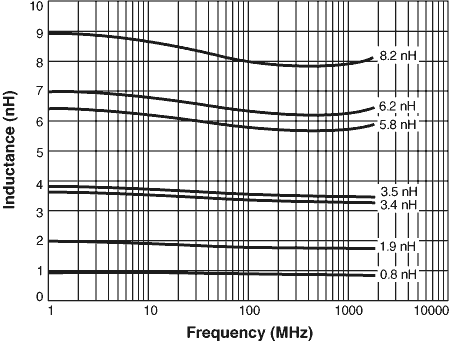

L vs Frequency

L vs Frequency

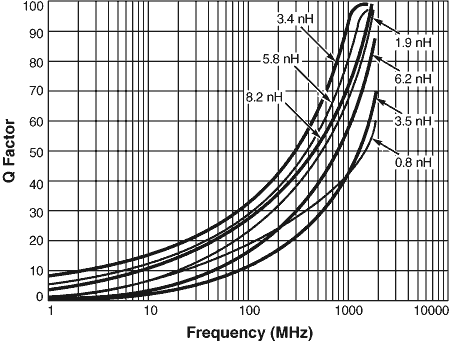

Q vs Frequency

Q vs Frequency

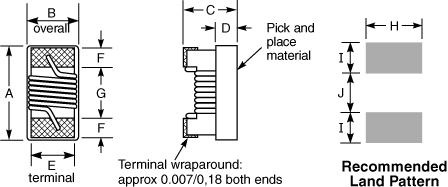

物理特性



A max B max C max D ref E F G H I J
0.047 0.025 0.026 0.010 0.020 0.009 0.022 0.026 0.014 0.018 inches
1,19 0,64 0,66 0,25 0,51 0,23 0,56 0,66 0,36 0,46 mm

Height dimension (C) is before optional solder application.
For maximum height dimension including solder, add 0.006 in / 0,152 mm.

卷装规格


Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) A B C D E W P Po P1 H T part_or_i-(4).gif
2000 178 100 13 14,4 8,4 8 2 4 2 NA 0,68
10000* 178 100 13 14,4 8,4 8 2 4 2 NA 0,68
* Special order

一般规格

核心材料:
Ceramic
重量:
0.9 – 1.1 mg
包装:
2000 or 10000 per 7″ reel. Paper tape: 8 mm wide, 0.68 mm thick, 2 mm pocket spacing
Temperature coefficient of inductance:
+25 to +125 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前，请参阅焊接线艺元件。
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
