0402HL (1005)

High Inductance Ceramic Chip Inductors

Our 0402HL Series offers higher inductance values than other chip inductors this size – from 270 nH up to 820 nH. Tight 5% tolerance assures minimal variation for narrowband applications.

Higher inductance values than other chip inductors this size: From 270 nH to 820 nH
5% inductance tolerance for all values
High Q wirewound construction

Need parts for space, military or other critical applications?
See Coilcraft AR235RAP Series | See Coilcraft ST235RAP Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.22
200	$0.95
500	$0.73
1000	$0.51
2000	$0.39
4000	$0.30
10000	$0.25

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

J = 5%

Termination

R = Matte tin over nickel over silver-platinum-glass frit

Packaging

W = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C453	12 (20 of each)	$45.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2 (公差: ± 5%)	Q typ @ 25.0 MHz 3	SRF min (MHz) 4	DCR max (Ω) 5	Irms (mA) 6
零件号 1	电感 (nH) 2 (公差: ± 5%)	Q typ @ 25.0 MHz 3	SRF min (MHz) 4	DCR max (Ω) 5	Irms (mA) 6
0402HL-271XJR_	270	11	590	1.95	190
0402HL-301XJR_	300	11	600	2.15	190
0402HL-331XJR_	330	11	513	2.23	170
0402HL-361XJR_	360	11	485	2.36	170
0402HL-391XJR_	390	11	260	2.35	170
0402HL-471XJR_	470	11	220	2.67	160
0402HL-511XJR_	510	12	450	3.50	150
0402HL-561XJR_	560	12	420	3.70	140
0402HL-601XJR_	600	12	440	3.78	130
0402HL-681XJR_	680	13	380	5.15	120
0402HL-741XJR_	740	12	165	5.45	110
0402HL-821XJR_	820	13	385	5.85	90

注释

When ordering, please specify termination and packaging codes: 0402HL-821XJRW
Inductance measured at 25 MHz using a Coilcraft SMD-F test fixture and Coilcraft-provided correlation pieces with an Agilent/HP 4286 impedance analyzer.
Q measured using a Coilcraft SMD-F fixture in Agilent/HP 4287A impedance analyzer or equivalent.
SRF measured using Agilent/HP 8753D network analyzer and Coilcraft SMD -D test fixture.
DCR measured on Cambridge Technology micro-ohmmeter and a Coilcraft CCF1010 test fixture.
Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

端子:

R = RoHS compliant matte tin over nickel over silver-platinum-glass frit.
Q = RoHS tin-silver-copper (95.5/4/0.5) (Special order, added cost)
P = non-RoHS tin-lead (63/37) (Special order, added cost)

包装:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+140°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

L vs Frequency

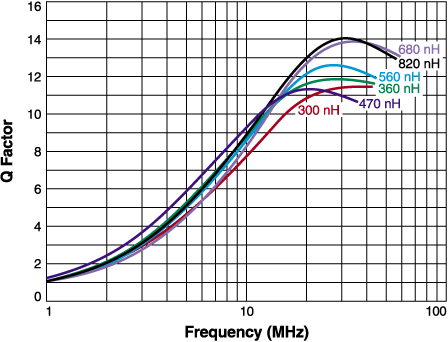

Q vs Frequency

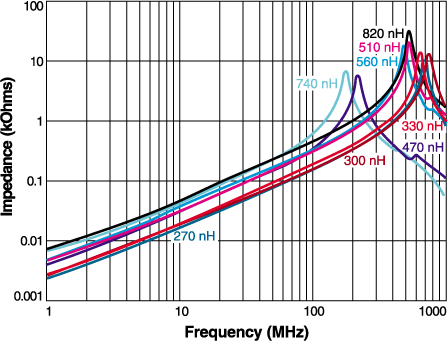

Z vs Frequency

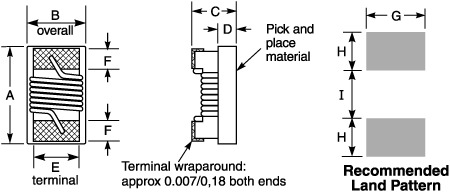

物理特性

A max	B max	C max	D	E	F	G	H	I
0.048	0.031	0.022	0.010	0.018	0.008	0.026	0.014	0.025	inches
1,22	0,79	0,56	0,25	0,46	0,20	0,66	0,36	0,64	mm

Note: Height dimension (C) is before optional solder application. For maximum height dimension
including solder, add 0.006 in / 0,152 mm.

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	178	100	13	14,4	8,4	8	2	4	2	1,0	0,66

一般规格

核心材料:

Ceramic

重量:

0.7 – 1.3 mg

包装:

2000 per 7″ reel. Paper tape: 8 mm wide, 0.66 mm thick, 2 mm pocket spacing

Temperature coefficient of inductance:

+25 to +150 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
