026011C (0703)

Ceramic Chip Inductors

Our 026011C Series performance-optimized 0201-size inductors offer SRF values as high as 34 GHz. Their wirewound construction, and resulting high Q factor, make them a great choice for 700 MHz LTE and 5G applications.

29 inductance values from 0.75 nH to 75 nH
Optimized for 5G applications
High Q factor for 700 MHz LTE
Very high SRF values – as high as 34 GHz
Performance-optimized 0201 size – 0.76 × 0.33 × 0.55 mm high

Need parts for space, military or other critical applications?
See Coilcraft ST214RAA Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.22
200	$0.86
500	$0.60
1000	$0.48
2000	$0.41
4000	$0.35

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

J = 5%

Termination

R = Matte tin over nickel over silver

Packaging

W = 7" machine-ready reel

Y = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C473	29 (20 of each)	$80.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2 (公差: ± 5%)	900 MHz		1.7 GHz		2.4 GHz		SRF typ (GHz) 4	DCR max (mΩ) 5	Irms (mA) 6
零件号 1	电感 (nH) 2 (公差: ± 5%)	L typ	Q typ 3	L typ	Q typ 3	L typ	Q typ 3	SRF typ (GHz) 4	DCR max (mΩ) 5	Irms (mA) 6
026011C-N75XJR_	0.75	0.73	35	0.73	54	0.73	69	34.0	60	850
026011C-1N7XJR_	1.7	1.65	40	1.67	60	1.68	77	34.0	60	850
026011C-3N0XJR_	3.0	2.94	44	2.95	66	2.96	85	13.7	83	610
026011C-4N7XJR_	4.7	4.62	46	4.63	69	4.67	91	11.6	110	520
026011C-5N1XJR_	5.1	5.01	46	5.04	72	5.1	93	10.3	120	540
026011C-5N6XJR_	5.6	5.52	45	5.57	65	5.65	81	9.6	130	470
026011C-6N2XJR_	6.2	6.1	45	6.14	66	6.23	86	9.9	130	470
026011C-6N8XJR_	6.8	6.7	47	6.77	68	6.9	86	8.7	135	460
026011C-7N5XJR_	7.5	7.4	45	7.48	66	7.62	82	8.6	155	430
026011C-8N2XJR_	8.2	8.09	44	8.18	67	8.33	84	7.8	240	360
026011C-9N0XJR_	9.0	8.88	47	8.97	68	9.15	86	8.0	155	440
026011C-10NXJR_	10	9.88	47	10	67	10.3	85	7.5	190	390
026011C-11NXJR_	11	10.9	43	11.1	61	11.5	69	6.6	280	320
026011C-12NXJR_	12	11.9	41	11.2	58	11.7	67	6.3	370	260
026011C-15NXJR_	15	14.9	42	15.4	57	16.3	62	5.2	415	260
026011C-16NXJR_	16	15.9	44	16.5	58	17.5	62	5.5	315	300
026011C-18NXJR_	18	17.9	44	18.7	58	20	60	4.8	460	250
026011C-20NXJR_	20	19.9	44	20.7	57	22.2	59	5.1	420	260
026011C-22NXJR_	22	21.9	43	22.8	59	24.3	56	4.7	540	240
026011C-24NXJR_	24	23.9	45	24.9	64	26.5	58	4.5	460	250
026011C-27NXJR_	27	26.8	45	27.9	64	29.6	58	4.3	505	240
026011C-30NXJR_	30	30	44	31.7	56	34.6	54	4.4	800	190
026011C-33NXJR_	33	33.2	43	35.7	52	40.1	52	4.0	710	200
026011C-36NXJR_	36	36.2	42	39	51	44.2	46	3.9	1080	160
026011C-39NXJR_	39	39.2	42	42	51	47.3	55	3.8	1000	175
026011C-43NXJR_	43	43.5	41	47.4	48	54.7	46	3.6	1000	170
026011C-56NXJR_	56	56.8	47	60.6	63	-	-	3.2	1460	140
026011C-68NXJR_	68	70.1	40	81.5	42	-	-	2.9	1920	120
026011C-75NXJR_	75	76.2	47	-	-	-	-	2.8	2600	100

注释

When ordering, please specify packaging code: e.g. 026011C-75NXJRY
Inductance measured at 250 MHz using a Coilcraft SMD-F test fixture and Coilcraft-provided correlation pieces with an Agilent/HP 4286 impedance analyzer
Q measured using an Agilent/HP 4287A with an Agilent/HP 16197 test fixture.
SRF is measured on an Agilent 8753ES (or equivalent) with a Coilcraft SMD-D test fixture. Details
DCR measured at 25°C on a micro-ohmmeter and a Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
Irms: Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

端子:

Matte tin over nickel over silver.

包装:

Y = 7″ machine-ready reel. EIA-481 punched paper tape (10,000 parts per full reel).
W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

−40°C to +125°C with Irms current

储存温度范围:

Component: −40°C to +140°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+140°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

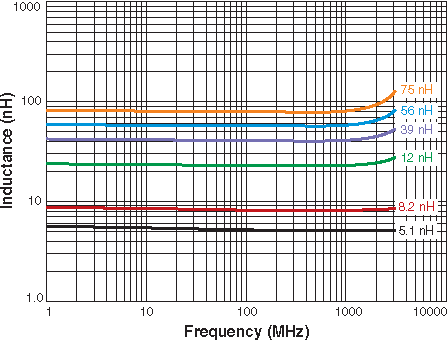

L vs Frequency

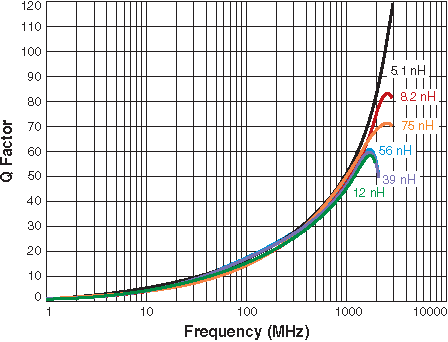

Q vs Frequency

物理特性

A max	B max	C max	D	E	F	G	H
0.030	See table below	0.022	0.004	0.011	0.016	0.010	0.014	inches
0,76	See table below	0,55	0,10	0,28	0,41	0,25	0,36	mm

026011C-N75	0.015 / 0,38	026011C-9N0	0.015 / 0,38	026011C-27N	0.015 / 0,38
026011C-1N7	0.015 / 0,38	026011C-10N	0.015 / 0,38	026011C-30N	0.013 / 0,33
026011C-3N0	0.015 / 0,38	026011C-11N	0.015 / 0,38	026011C-33N	0.013 / 0,33
026011C-4N7	0.015 / 0,38	026011C-12N	0.013 / 0,33	026011C-36N	0.013 / 0,33
026011C-5N1	0.015 / 0,38	026011C-15N	0.013 / 0,33	026011C-39N	0.013 / 0,33
026011C-5N6	0.015 / 0,38	026011C-16N	0.015 / 0,38	026011C-43N	0.013 / 0,33
026011C-6N2	0.015 / 0,38	026011C-18N	0.013 / 0,33	026011C-56N	0.013 / 0,33
026011C-6N8	0.015 / 0,38	026011C-20N	0.015 / 0,38	026011C-68N	0.013 / 0,33
026011C-7N5	0.015 / 0,38	026011C-22N	0.013 / 0,33	026011C-75N	0.013 / 0,33
026011C-8N2	0.015 / 0,38	026011C-24N	0.015 / 0,38

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)					Orientation
7" (178 mm)	7" (178 mm)	A	B	C	D	E	W	P	Po	P1	T
2000	10,000*	178	100	13	14,4	8,4	8	2	4	2	0,68

* Special order

一般规格

核心材料:

Ceramic

重量:

0.14 - 0.24 mg

包装:

2000 or 10,000 per 7″ reel. Paper tape: 8 mm wide, 0.68 mm thick, 2 mm pocket spacing

Temperature coefficient of inductance:

+25 to +150 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
