0201HL (0603)

High Inductance Miniature Chip Inductors

The 0201HL Series has higher inductance values than other 0201 size inductors, with twice the Q factor of thin-film technology inductors of the same size. Measuring just 0.58 x 0.46 x 0.46 mm, they are optimized for impedance matching in 700 MHz LTE and 5G applications.

Optimized for LTE Antenna matching
Twice the Q factor of thin-film multilayer technology
Higher inductance values than other 0201 inductors
0201 size – 0.58 × 0.46 × 0.46 mm high

Need parts for space, military or other critical applications?
See Coilcraft ST145RAP Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.47
200	$1.03
500	$0.72
1000	$0.58
2000	$0.48
4000	$0.42

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

J = 5%

Termination

R = Matte tin over nickel over silver

Packaging

W = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C475	7 (20 of each)	$45.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2 (公差: ± 5%)	900 MHz		1.7 GHz		2.4 GHz		SRF typ (GHz) 4	DCR max (Ω) 5	Irms (mA) 6
零件号 1	电感 (nH) 2 (公差: ± 5%)	L typ	Q typ 3	L typ	Q typ 3	L typ	Q typ 3	SRF typ (GHz) 4	DCR max (Ω) 5	Irms (mA) 6
0201HL-22NXJR_	22	21.8	36	22.7	52	24.2	62	4.4	0.75	140
0201HL-24NXJR_	24	23.8	36	24.9	53	27.1	56	4.4	0.93	130
0201HL-27NXJR_	27	26.9	35	28.2	47	30.5	55	4.0	1.03	125
0201HL-33NXJR_	33	33	35	35.4	45	39.6	49	3.7	1.14	120
0201HL-39NXJR_	39	39.4	35	42.7	43	49.5	45	3.5	1.55	100
0201HL-47NXJR_	47	47.6	35	52.8	43	64.3	41	3.3	1.70	95
0201HL-51NXJR_	51	51.9	35	58.3	44	71.5	44	3.5	1.85	90

注释

When ordering, please specify packaging code: e.g. 0201HL-51NXJRW
Inductance measured at 250 MHz using a Coilcraft SMD-F test fixture and Coilcraft-provided correlation pieces with an Agilent/HP 4286 impedance analyzer.
Q measured using an Agilent/HP 4991A with an Agilent/HP 16197 test fixture.
SRF is measured on an Agilent 8722ES network analyser (or equivalent) with a Coilcraft SMD-D test fixture. Details
DCR measured at 25°C on a micro-ohmmeter and a Coilcraft CCF858 test fixture, For other operating temperatures, use this DCR at Temperature calculator.
Irms: Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

端子:

RoHS matte tin over nickel over molybdenum-manganese

包装:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
U = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from U to W.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

−40°C to +125°C with Irms current

储存温度范围:

Component: −40°C to +140°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+140°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

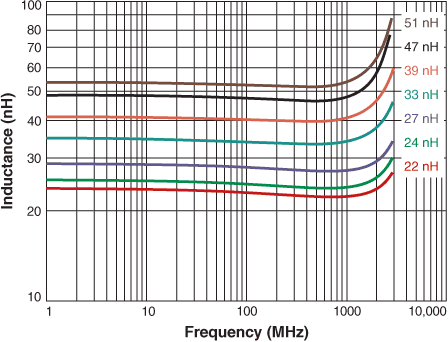

L vs Frequency

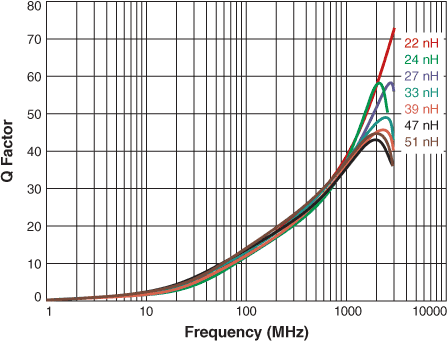

Q vs Frequency

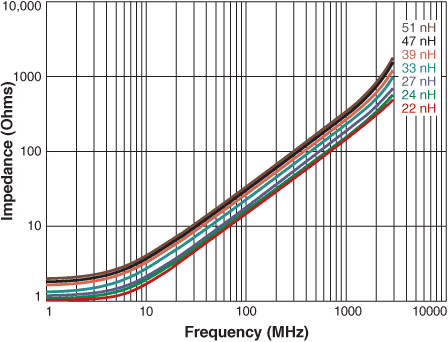

Z vs Frequency

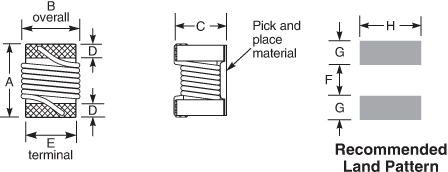

物理特性

A max	B max	C max	D	E	F	G	H
0.023	0.018	0.018	0.004	0.015	0.009	0.007	0.018	inches
0,58	0,46	0,46	0,10	0,38	0,23	0,18	0,46	mm

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)					Orientation
7" (178 mm)	7" (178 mm)	A	B	C	D	E	W	P	Po	P1	T
2000	10,000*	178	100	13	14,4	8,4	8	2	4	2	0,68

* Special order

一般规格

核心材料:

Ceramic

重量:

0.14 - 0.23 mg

包装:

2000 per 7″ reel. Paper tape: 8 mm wide, 0.68 mm thick, 2 mm pocket spacing

Temperature coefficient of inductance:

+25 to +150 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
