0201CT (0603)

Low Profile Chip Inductors

Measuring just 0.58 x 0.46 x 0.35 mm, the 0201CT Series is a low profile wirewound chip inductor in an 0201 (metric 0603) size. It has exceptionally higher Q and lower DCR than similarly sized thin-film types and is optimized for high-frequency impedance matching in applications such as cell phones, wearable devices, WiFi, Bluetooth, GPS and LTE/5G IoT networks.

0201 sized inductor with low-profile 0.35 mm maximum height
Excellent Q compared to non-wirewound alternatives at this height
Very high SRF – as high as 35.2 GHz
AEC-Q200 Grade 1 (–40°C to +125°C)

立即购买:

零件号

查找我的元件

计数	单价
1	$1.47
200	$1.03
500	$0.72
1000	$0.58
2000	$0.48
4000	$0.42

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

K = 10%

Termination

R = Matte tin over nickel over silver-glass frit

Packaging

W = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C519	14 (20 of each)	$70.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2	公差 (%) 3	900 MHz	1.7 GHz	2.4 GHz	SRF typ (GHz) 5	DCR max (mΩ) 6	Irms (mA)
零件号 1	电感 (nH) 2	公差 (%) 3	Q typ 4	Q typ 4	Q typ 4	SRF typ (GHz) 5	DCR max (mΩ) 6	at 25°C 7	at 85°C 8	at 125°C 9
0201CT-0N6XKR_	0.60	10	28	41	53	35.2	60	700	240	140
0201CT-1N5XKR_	1.5	10	27	40	49	20.3	130	460	190	100
0201CT-2N4XKR_	2.4	10	34	53	66	15.8	130	470	300	180
0201CT-4N7XKR_	4.7	10	34	52	61	9.6	210	360	240	140
0201CT-5N1XKR_	5.1	10	30	42	48	9.2	330	290	170	90
0201CT-5N6XKR_	5.6	10	35	48	56	9.8	210	360	300	180
0201CT-6N2XKR_	6.2	10	35	48	55	8.7	210	360	300	180
0201CT-6N8XKR_	6.8	10	32	43	48	8.0	270	340	240	140
0201CT-7N5XKR_	7.5	10	30	41	47	7.9	500	290	140	70
0201CT-8N2XKR_	8.2	10	35	48	54	7.7	260	330	300	180
0201CT-9N1XKR_	9.1	10	33	45	50	6.8	395	270	190	100
0201CT-11NXKR_	11	10	34	46	50	6.8	480	250	190	100
0201CT-12NXKR_	12	10	33	43	45	6.2	460	250	190	100
0201CT-22NXKR_	22	10	30	35	32	4.5	925	170	140	70

注释

When ordering, please specify packaging code: 0201CT-22NXKRW
Inductance measured at 250 MHz using a Coilcraft SMD-F fixture in an Agilent/HP 4287 impedance analyzer with Coilcraft-provided correlation pieces.
K = 10%
Q measured using Agilent/HP4991A with Agilent/HP 16197 test fixture.
SRF measured using Agilent/HP 8722ES network analyzer and Coilcraft SMD -D test fixture.
DCR measured on Cambridge Technology micro-ohmmeter and Coilcraft CCF858 test fixture.
Current that cause 15°C rise at 25°C. This information is for reference only and does not represent absolute maximum ratings.
Maximum current that can be applied at 85°C.
Maximum current that can be applied at 125°C.

公差:

K = 10%

端子:

R = RoHS compliant matte tin over nickel over silver-glass frit.

包装:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
Y = 7″ machine-ready reel. EIA-481 punched paper tape. Factory order only, not stocked (10000 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –55°C to +140°C.
Tape and reel packaging: –55°C to +80°C

最高元件温度:

+140°C (ambient + temp rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

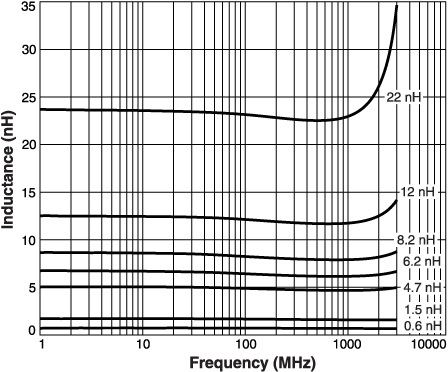

L vs Frequency

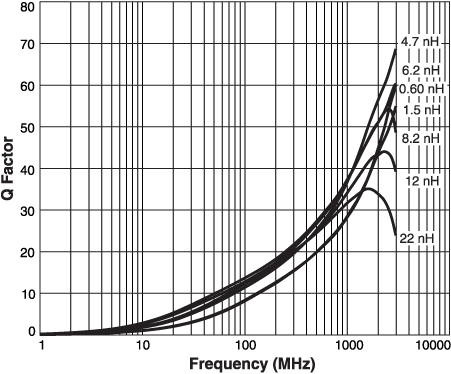

Q vs Frequency

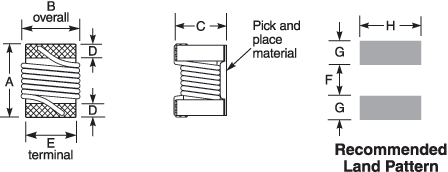

物理特性

A max	B max	C max	D	E	F	G	H
0.023	0.018	0.014	0.004	0.015	0.009	0.007	0.018	inches
0,58	0,46	0,35	0,10	0,38	0,23	0,18	0,46	mm

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	178	60	13	14,4	8,4	8	2	4	2	0,36	0,42
10000*	178	60	13	14,4	8,4	8	2	4	2	0,36	0,42

* Special order

一般规格

核心材料:

Ceramic

重量:

0.14 – 0.24 mg

包装:

2000 or 10000 per 7″reel; Paper tape: 8 mm wide, 0.42 mm thick, 2 mm pocket spacing

Temperature coefficient of inductance:

+25 to +125 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

PCB washing Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
