016008C (0402)

Ceramic Chip Inductors

The 016008C Series is the world’s smallest high-frequency-wirewound chip inductors. It features the highest Q factor on the market — up to 40% higher than the best thin-film counterparts. High Q is required to minimize the insertion loss in RF antenna impedance matching circuits, which makes the 016008C ideal for high-frequency applications such as cell phones, wearable devices, and LTE or 5G IoT networks.

World’s smallest high-frequency-wirewound chip inductor
First metric 0402 (0.4 x 0.2 mm), performance-optimized 01005 size
Extremely high Q, the highest in the market – higher than all thin film type
Exceptionally low DCR – lower than all thin film type
36 inductance values from 0.45 nH to 24 nH

Need parts for space, military or other critical applications?
See Coilcraft ST124RAA Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.35
200	$0.95
500	$0.65
1000	$0.53
2500	$0.45
4000	$0.39

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

K = 10%

Termination

R = Matte tin over copper over nickel over molybdenum-manganese

Packaging

W = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C488	36 (20 of each)	$180.00

规格

Electrical specifications at 25°C.

零件号	电感 (nH) 1	公差 (%)	900 MHz	1.7 GHz	2.4 GHz	SRF typ (GHz) 3	DCR max (mΩ) 4	Irms (mA)
零件号	电感 (nH) 1	公差 (%)	Q typ 2	Q typ 2	Q typ 2	SRF typ (GHz) 3	DCR max (mΩ) 4	at 25°C 5	at 85°C 6	at 125°C 7
016008C-N45XKRW	0.45	10	37	48	59	36.0	60	550	240	140
016008C-N50XKRW	0.5	10	30	40	48	36.0	75	445	170	90
016008C-1N1XKRW	1.1	10	38	50	62	21.0	95	415	240	140
016008C-1N2XKRW	1.2	10	34	45	56	21.3	130	335	170	90
016008C-1N3XKRW	1.3	10	27	37	46	21.0	200	270	120	50
016008C-2N0XJRW	2.0	5	34	45	55	15.2	125	345	240	140
016008C-2N2XJRW	2.2	5	33	45	54	14.8	180	275	170	90
016008C-2N3XJRW	2.3	5	25	36	46	14.8	160	340	190	100
016008C-2N4XJRW	2.4	5	27	36	43	14.2	260	225	120	50
016008C-2N5XJRW	2.5	5	25	35	44	13.6	205	305	170	90
016008C-3N3XJRW	3.3	5	34	45	52	12.2	150	305	240	140
016008C-3N6XJRW	3.6	5	31	42	48	12.0	230	245	170	90
016008C-3N8XJRW	3.8	5	27	36	42	11.4	345	195	120	50
016008C-3N9XJRW	3.9	5	27	37	42	11.3	230	275	190	100
016008C-4N3XJRW	4.3	5	32	42	48	10.8	190	265	240	140
016008C-4N7XJRW	4.7	5	34	47	57	11.0	275	220	170	90
016008C-5N1XJRW	5.1	5	31	42	50	10.0	325	200	140	70
016008C-5N3XJRW	5.3	5	29	40	47	9.7	430	175	120	50
016008C-5N6XJRW	5.6	5	28	39	47	9.8	275	220	190	100
016008C-5N8XJRW	5.8	5	35	48	58	9.8	315	220	190	100
016008C-6N0XJRW	6.0	5	31	42	51	9.8	340	200	170	90
016008C-6N2XJRW	6.2	5	33	44	53	9.7	385	185	140	70
016008C-6N8XJRW	6.8	5	31	42	48	9.0	310	200	190	100
016008C-6N9XJRW	6.9	5	30	40	46	8.8	510	160	120	50
016008C-7N5XJRW	7.5	5	28	37	43	8.2	320	260	190	100
016008C-7N8XJRW	7.8	5	31	42	49	8.4	380	180	170	90
016008C-8N2XJRW	8.2	5	30	40	46	8.1	445	170	140	70
016008C-8N8XJRW	8.8	5	30	39	44	7.8	600	145	120	50
016008C-9N5XJRW	9.5	5	28	37	44	7.6	575	180	140	70
016008C-10NXJRW	10.0	5	31	40	46	7.4	520	155	140	70
016008C-12NXJRW	12.0	5	27	37	42	6.5	640	170	140	70
016008C-13NXJRW	13.0	5	30	38	43	6.5	730	130	120	50
016008C-15NXJRW	15.0	5	27	35	38	6.2	820	120	120	50
016008C-18NXJRW	18.0	5	27	37	42	5.5	1020	120	100	40
016008C-20NXJRW	20.0	5	28	35	37	5.3	1300	110	90	40
016008C-24NXJRW	24.0	5	28	33	33	4.8	1550	100	90	40

注释

Inductance measured at 250 MHz using a Coilcraft ccf1426 fixture in an Agilent/HP 4287 impedance analyzer with Coilcraft-provided correlation piece
Q measured using an Agilent/HP 4991 with an Coilcraft CCF1481 test fixture.
SRF measured using Agilent/HP 8722ES network analyzer and Coilcraft CCF1406 test fixture.
DCR measured on Cambridge Technology micro-ohmmeter and Coilcraft CCF858 test fixture.
Current that causes a 40°C temperature rise at 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
Maximum current that can be applied at 85°C.
Maximum current that can be applied at 125°C.

公差:

J = 5%, K = 10%

端子:

R =RoHS compliant matte tin over copper over molybdenum - manganese

包装:

W = 7″ machine-ready reel. EIA-481 punched paper tape (2000 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+140°C (ambient + temp rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

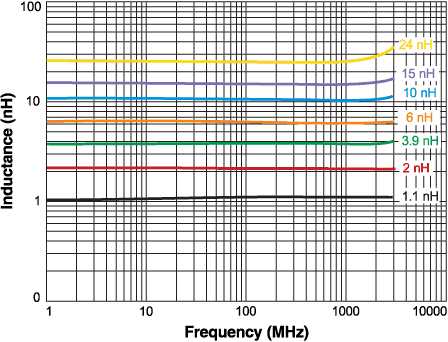

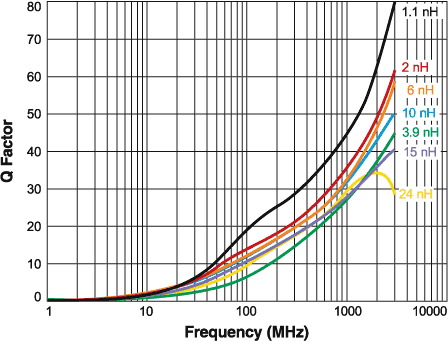

性能曲线

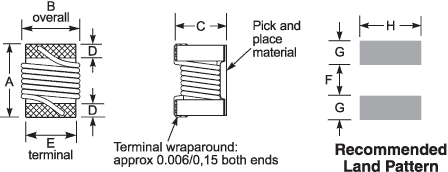

物理特性

A max	B max	C max	D ref	E ref	F ref	G ref	H ref
0.0185	0.0110	0.0138	0.0035	0.0080	0.0060	0.0090	0.0120	inches
0,47	0,28	0,35	0,09	0,20	0,15	0,23	0,30	mm

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	178	100	13	14,4	8,4	8	2	4	2	0,38	0,42

一般规格

核心材料:

Ceramic

重量:

0.10 – 0.16 mg

包装:

2000 per 7″ reel; Paper tape: 8 mm wide, 0.42 mm thick, 2 mm pocket spacing, 0,38 mm pocket depth

Temperature coefficient of inductance:

+25 to +150 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

PCB washing Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
