GA309x and WA309x Series

Mini Air Core Inductors

Our GA309x / WA309x Series miniature air core inductors have extremely high Q factors and very tight inductance tolerances, making them suitable for narrowband RF amplifier matching and tuning applications. As their name implies, air core inductors do not use a magnetic core, resulting in their high Q and the lowest possible losses for high-frequency applications.

Inductance values from 3.7 nH to 30.0 nH
High Q – up to 160
Extremely low DCR: 2.0 mOhm; Very high current: 7 Amps
Solder coated leads ensure reliable soldering

立即购买:

零件号

查找我的元件

计数	单价
1	$0.97
250	$0.78
500	$0.69
1000	$0.61
2500	$0.41
5000	$0.29
10000	$0.27

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C459	6 (10 of each)	$45.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (nH) 2 (公差: ±5%)	Q typ @ 150 MHz	SRF typ (GHz) 3	DCR max (mΩ) 4	Irms (A) 5
零件号 1	电感 (nH) 2 (公差: ±5%)	Q typ @ 150 MHz	SRF typ (GHz) 3	DCR max (mΩ) 4	Irms (A) 5
GA3092-AL_	3.7	100	17.5	2.0	7.0
GA3093-AL_	6.6	100	4.0	2.0	7.0
GA3094-AL_	12.0	140	2.4	2.0	7.0
GA3095-AL_	17.5	140	2.2	2.0	7.0
WA3096-AL_	22.0	160	2.6	2.5	7.0
WA3097-AL_	30.0	160	2.0	3.0	7.0

注释

When ordering, please specify termination and packaging codes: e.g. WA3097-ALD
Inductance and Q measured at 150 MHz, 0.1 Vrms, 0 A using an Agilent/HP 4291A impedance analyzer or equivalent with an Agilent/HP 16193A test fixture.
SRF measured using an Agilent/HP 8753D network analyzer or equivalent and a Coilcraft SMD-D test fixture. Details
DCR measured at 25°C using a micro-ohmeter. For other operating temperatures, use this DCR at Temperature calculator.
Irms: Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

端子:

L = RoHS compliant tin-silver (96.5/3.5) over copper.
T = RoHS tin-silver-copper (95.5/4/0.5) over copper. (Special order, added cost)
S = non-RoHS tin-lead (63/37) over copper. (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (GA3092 - GA3095 250 parts per full reel; WA3096, WA3097 400 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (GA3092 - GA3095 1000 parts per full reel; WA3096, WA3097 1500 parts per full reel). Factory order only, not stocked.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +125°C with Irms current.

储存温度范围:

Component: −40°C to +140°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+140°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

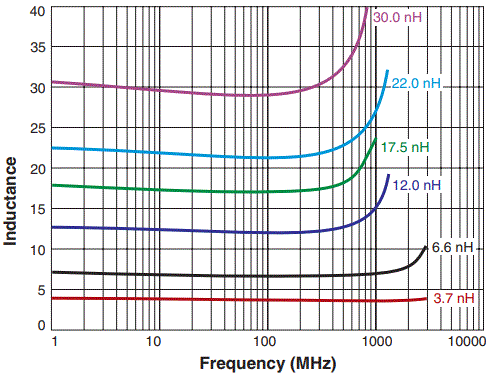

L vs Frequency

Q vs Frequency

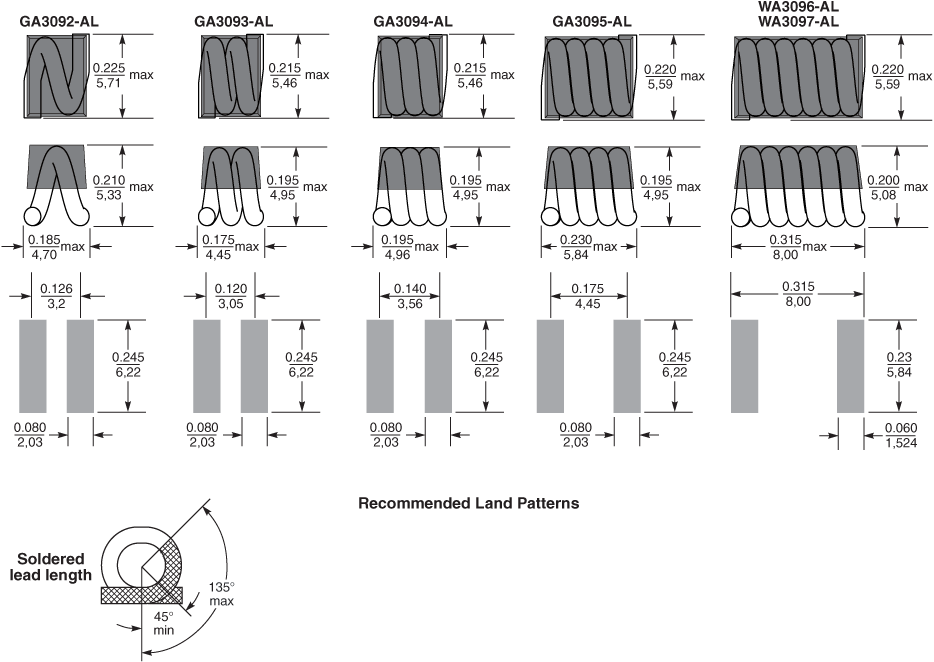

物理特性

Part number	Weight (mg)
GA3092	150
GA3093	220
GA3094	280
GA3095	390
WA3096	470
WA3097	570

卷装规格

Part	Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)
	7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
GA3092	250	1000*	178/330	60/100	13	22,4	16,4	16	12	4	2	5,46	0,35
GA3093	250	1000*	178/330	60/100	13	22,4	16,4	16	12	4	2	5,46	0,35
GA3094	250	1000*	178/330	60/100	13	22,4	16,4	16	12	4	2	4,9	0,35
GA3095	250	1000*	178/330	60/100	13	22,4	16,4	16	12	4	2	4,9	0,35
WA3096	400	1500*	178/330	60/100	13	22,4	16,4	16	8	4	2	5,26	0,5
WA3097	400	1500*	178/330	60/100	13	22,4	16,4	16	8	4	2	5,26	0,5

* Special order

一般规格

包装:

GA3092 – GA3093: 250/7″reel; 1000/13″ reel Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 5.6 mm pocket depth
GA3094 – GA3095: 250/7″reel; 1000/13″ reel Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 4.9 mm pocket depth
WA3096, WA3097: 400/7″reel; 1500/13″ reel Plastic tape: 16 mm wide, 0.5 mm thick, 8 mm pocket spacing, 5.26 mm pocket depth

Temperature coefficient of inductance:

+5 to +70 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
