Midi Spring®

Air Core Inductors

符合RoHS AEC-Q flag
Our Midi Spring® air core inductors have exceptionaly high Q factors and very tight inductance tolerances, making them suitable for narrowband RF amplifier matching and tuning applications.  As their name implies, air core inductors do not use a magnetic core, resulting in high Q and the lowest possible losses for high-frequency applications.  They can withstand high temperatures, meeting AEC-Q200 Grade 1 (−40°C to +125°C) requirements.  High-reliability versions are available for space, military, and other critical applications.


  • Inductance values from 22 nH to 150 nH
  • Exceptionally high Q even at low frequencies; Handles up to 3.5 Amps current
  • Tight tolerance (as low as ±2%) can eliminate circuit tuning
  • Flat top jacket for mechanical stability and reliable pick and place operations
  • Solder coated leads ensure reliable soldering
  • AEC-Q200 Grade 1 (−40°C to +125°C)

立即购买:
计数 单价
1 $0.96
250 $0.77
500 $0.67
1000 $0.60
2000 $0.40
5000 $0.26
10000 $0.19

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:

设计套件:
套件 电感值 价格
C318 11 (12 of each) $40.00
C318-2 11 (12 of each) $60.00

规格

Electrical specifications at 25°C.

零件号 1 电感 (nH) 2 公差 (%) 3 Q @ 150 MHz 4 SRF min (GHz) 5 DCR max (mΩ) 6 Irms (A) 7
min typ
1812SMS-22N_LC 22 2,5 100 140 3.2 4.2 3.0
1812SMS-27N_LC 27 2,5 100 140 2.7 4.0 3.5
1812SMS-33N_LC 33 2,5 100 140 2.5 4.8 3.0
1812SMS-39N_LC 39 2,5 100 140 2.1 4.4 3.0
1812SMS-47N_LC 47 2,5 100 140 2.1 5.6 3.0
1812SMS-56N_LC 56 2,5 100 140 1.5 6.2 3.0
1812SMS-68N_LC 68 2,5 100 140 1.5 8.2 2.5
1812SMS-82N_LC 82 2,5 100 150 1.3 9.4 2.5
1812SMS-R10_LC 100 2,5 100 180 1.2 12.3 1.7
1812SMS-R12_LC 120 2,5 100 180 1.1 17.3 1.5
1812SMS-R15_LC 150 2,5 100 180 0.75 33.0 1.2
注释
  1. When ordering, please specify tolerance, termination and packaging codes: e.g. 1812SMS-R12JLC
  2. Inductance tested at 150 MHz on an Agilent/HP 4286A LCR meter or equivalent with a Coilcraft SMD-A test fixture and correlation.
  3. Tolerances in bold are stocked for immediate shipment.
  4. Q tested at 150 MHz on an Agilent/HP 4291A Impedance Analyzer with an Agilent/HP 16193 test fixture or equivalent.
  5. SRF tested on the Agilent/HP 8753D Network Analyzer or equivalent and a Coilcraft CCF1248 test fixture.
  6. DCR tested on the Cambridge Technology Model 510 Micro-ohmmeter or equivalent. For other operating temperatures, use this DCR at Temperature calculator.
  7. Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

公差:

  • = 2%, = 5% (Table above shows stock tolerances in bold.)

端子:

  • L = RoHS compliant tin-silver (96.5/3.5) over copper.
  • T = RoHS tin-silver-copper (95.5/4/0.5) over copper. (Special order, added cost)
  • S = non-RoHS tin-lead (63/37) over copper. (Special order, added cost)

包装:

  • C = 7″ machine-ready reel. EIA-481 embossed plastic tape, 500 parts per full reel. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked, 2000 parts per full reel.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +125°C with Irms current
储存温度范围:
Component: –40°C to +140°C.
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+140°C (ambient + temp rise)
故障率(FIT)/平均故障间隔时间(MTBF):

性能曲线

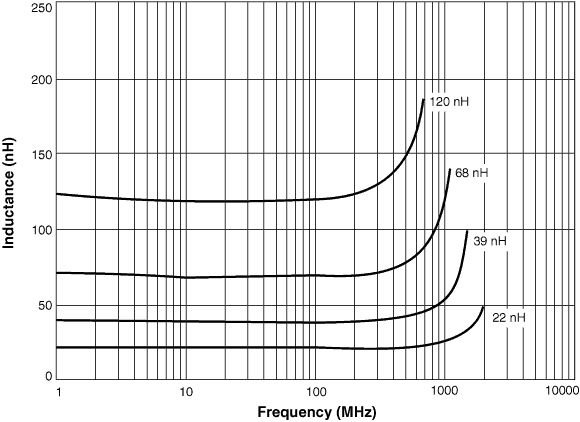

L vs Frequency

Q vs Frequency

物理特性



A max B max C max D E F max
0.195 0.250 0.165 0.140 ±0.010 0.170 ±0.015 0.030
4,95 6,35 4,20 3,56 ±0,25 4,32 ±0,38 0,76



卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_j.gif
500 2000* 178/330 60/100 13 18,4 12,4 12 8 4 2 4,33 0,3
* Special order


一般规格

重量:
0.10– 0.16 g
包装:
500/7″ reel; 2000/13″ reel Plastic tape: 12 mm wide, 0.3 mm thick, 8 mm pocket spacing, 4.33 mm pocket depth
Temperature coefficient of inductance:
+5 to +70 ppm/°C

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
推荐的取放吸嘴:
OD: 0.110 inch; ID: 0.091 inch
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
