0906/1606 Series

Micro Spring™ Air Core Inductors

Our 0906/1606 Series Micro Spring™ air core inductors have extremely high Q factors and very tight inductance tolerances, making them suitable for narrowband RF amplifier matching and tuning applications. As their name implies, air core inductors do not use a magnetic core, resulting in their high Q and the lowest possible losses for high-frequency applications. High-reliability versions are available for space, military, and other critical applications.

Inductance values from 1.65 nH to 12.55 nH (tolerances as low as 1%)
Tight tolerance can eliminate circuit tuning
Flat top for mechanical stability and reliable pick and place operations
Exceptionally high Q over a wide frequency range
Very high self resonance (up to 10 GHz)
Solder coated leads ensure reliable soldering
AEC-Q200 Grade 1 (−40°C to +125°C)

立即购买:

零件号

查找我的元件

计数	单价
1	$0.87
250	$0.72
500	$0.57
1000	$0.48
2000	$0.32
5000	$0.23
10000	$0.14

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

K = 10%

J = 5%

G = 2%

Termination

L = Tin-silver

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C308	9 (12 of each)	$40.00
C308-2	9 (12 of each)	$60.00

规格

Electrical specifications at 25°C.

0906 Series

零件号 1	匝数	电感 (nH) 2	公差 (%) 3	Q min @ 800 MHz 4	SRF min (GHz) 5	DCR max (mΩ) 6	Irms (A) 7
零件号 1	匝数	电感 (nH) 2	公差 (%) 3	Q min @ 800 MHz 4	SRF min (GHz) 5	DCR max (mΩ) 6	Irms (A) 7
0906-2_L_	2	1.65	2,5,10	100	10.0	4.0	1.6
0906-3_L_	3	2.55	1,2,5	100	8.2	5.0	1.6
0906-4_L_	4	3.85	1,2,5	100	7.5	6.0	1.6
0906-5_L_	5	5.40	1,2,5	100	7.0	8.0	1.6

1606 Series

零件号 1	匝数	电感 (nH) 2	公差 (%) 3	Q min @ 800 MHz 4	SRF min (GHz) 5	DCR max (mΩ) 6	Irms (A) 7
零件号 1	匝数	电感 (nH) 2	公差 (%) 3	Q min @ 800 MHz 4	SRF min (GHz) 5	DCR max (mΩ) 6	Irms (A) 7
1606-6_L_	6	5.60	1,2,5	100	6.5	9.0	1.6
1606-7_L_	7	7.15	1,2,5	100	6.0	10.0	1.6
1606-8_L_	8	8.80	1,2,5	100	6.0	12.0	1.6
1606-9_L_	9	9.85	1,2,5	100	5.2	13.0	1.6
1606-10_L_	10	12.55	1,2,5	100	4.6	14.0	1.6

注释

When ordering, please specify tolerance, termination and packaging codes: e.g. 1606-10JLC
Inductance measured at 800 MHz using an Agilent/HP 4286A or equivalent with a Coilcraft SMD-A fixture and correlation.
Tolerances in bold are stocked for immediate shipment
Q measured at 800 MHz using an Agilent/HP 4291A with an Agilent/HP 16193A test fixture or equivalents.
SRF measured with an Agilent/HP 8720D network analyzer or equivalent and a Coilcraft SMD-D test fixture.Details
DCR tested at 25°C on a Cambridge Technology Model 510 Micro-ohmmeter or equivalent. For other operating temperatures, use this DCR at Temperature calculator
Irms: Current that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

公差:

F = 1%, G = 2%, J = 5%, K = 10% (Table above shows stock tolerances in bold.)

端子:

L = RoHS compliant tin-silver (96.5/3.5) over copper.
T = RoHS tin-silver-copper (95.5/4/0.5) over copper. (Special order, added cost)
S = non-RoHS tin-lead (63/37) over copper. (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape, 500 parts per full reel. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
P = 7″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (3000 parts per full reel).

环境

环境:

符合RoHS

环境温度范围:

−40°C to +125°C with Irms current.

储存温度范围:

Component: −40°C to +140°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+140°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

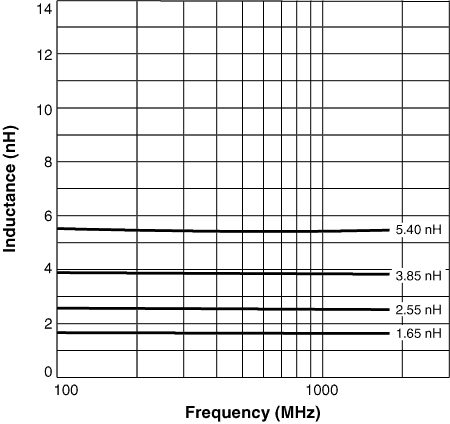

L vs Frequency

0906

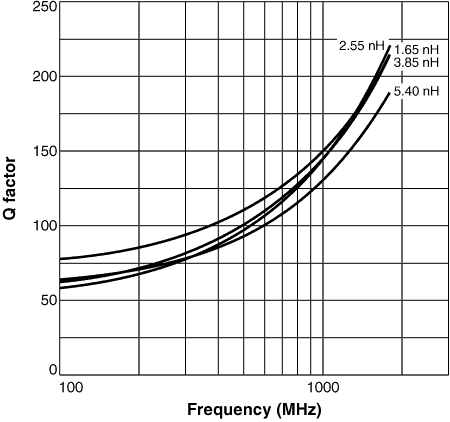

Q vs Frequency

0906

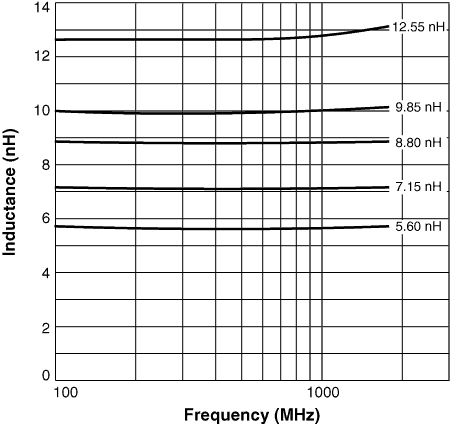

L vs Frequency

1606

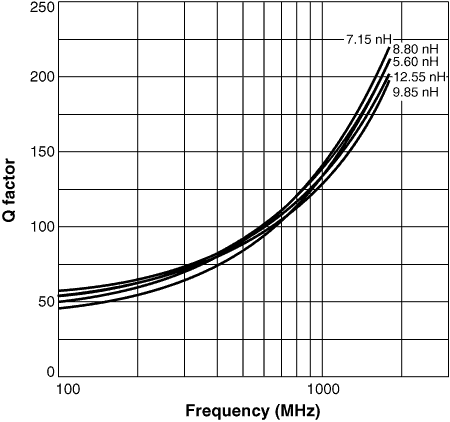

Q vs Frequency

1606

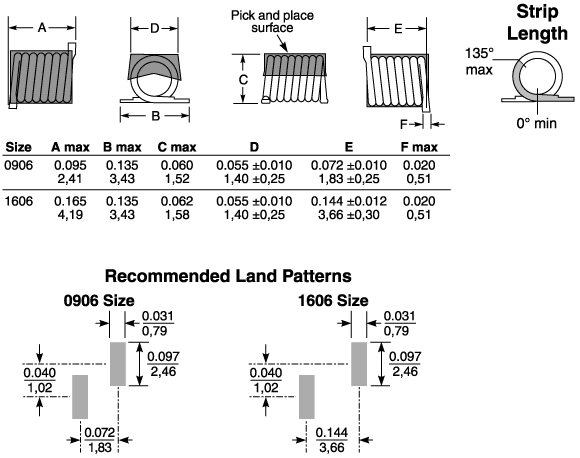

物理特性

0906 Series

A max	B max	C max	D	E	F max
0.095	0.135	0.060	0.055 ±0.010	0.072 ±0.010	0.020
2,41	3,43	1,52	1,40 ±0,25	1,83 ±0,25	0,51

1606 Series

A max	B max	C max	D	E	F max
0.165	0.135	0.062	0.055 ±0.010	0.144 ±0.012	0.020
4,19	3,43	1,58	1,40 ±0,25	3,66 ±0,30	0,51

卷装规格

	Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)
	7" (178 mm)	7" (178 mm)	A	B	C	D	E	W	P	Po	P1	H	T
0906	500	3000*	178	60	13	14,4	8,4	8	4	4	2	1,5	0,3
1606	500	3000*	178	60	13	18,4	12,4	12	4	4	2	1,6	0,3

* Special order

一般规格

重量:

0906: 10 -12 mg; 1606: 18 -27 mg

包装:

0906: 500 per 7″ reel Plastic tape: 8 mm wide, 0.3 mm thick, 4 mm pocket spacing, 1.5 mm pocket depth
1606: 500 per 7″ reel Plastic tape: 12 mm wide, 0.3 mm thick, 4 mm pocket spacing, 1.6 mm pocket depth

Temperature coefficient of inductance:

+5 to +70 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

推荐的取放吸嘴:

OD: 0.059 inch; ID: 0.035 inch

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
